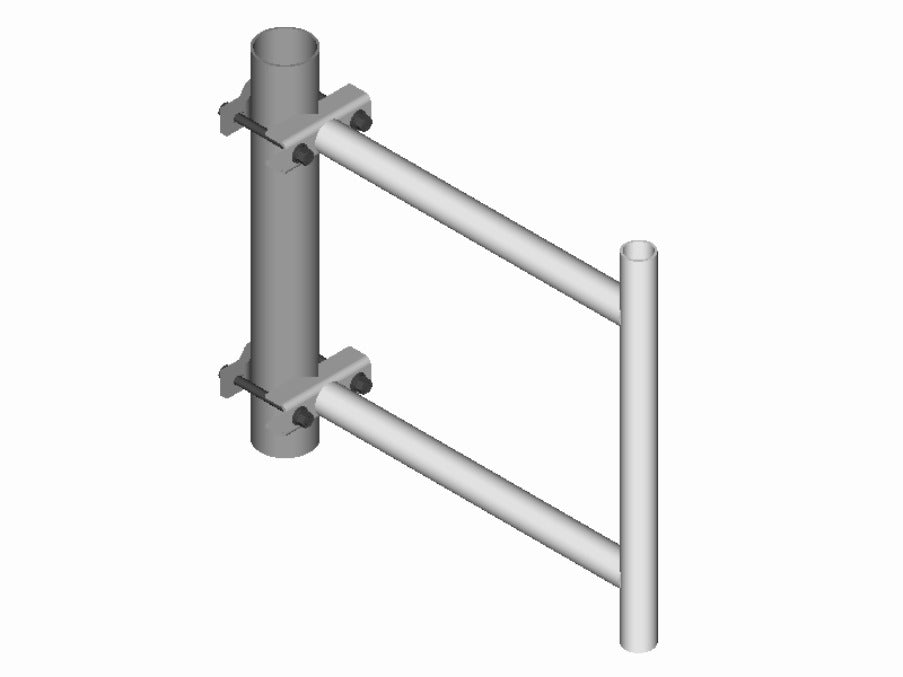

Commscope S-200 | Stand-Off Bracket, 24 in, includes pipe
Regular price
$288.20
Unit price
Brand: CommScope
|
SKU:
9845758
Regular price
$288.20
Unit price
Description
Description
Commscope S-200 | Stand-Off Bracket, 24 in, includes pipe
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Stand-off mount |
|---|
General Specifications
| Mounting | Straight or tapered legs up to 88.9 mm (3-1/2 in) OD, clamps included |
|---|---|
| Note | One 20 ft omni antenna |
| Pipe, quantity | 1 |
| Tower Taper | Non-tapered / Tapered |
Dimensions
| Height | 609.6 mm / 24 in |
|---|---|
| Width | 127 mm / 5 in |
| Length | 609.6 mm / 24 in |
| Pipe Length | 609.6 mm / 24 in |
| Pipe Outer Diameter | 48.26 mm / 1.9 in |
| Stand-off Distance | 609.6 mm / 24 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
|---|
Mechanical Specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL |
|---|---|
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and Weights
| Included | Clamps / Stand-off |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 9.9 kg / 21.826 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
