Brand: CommScope
|
SKU:
CMP00424X10D10B103K

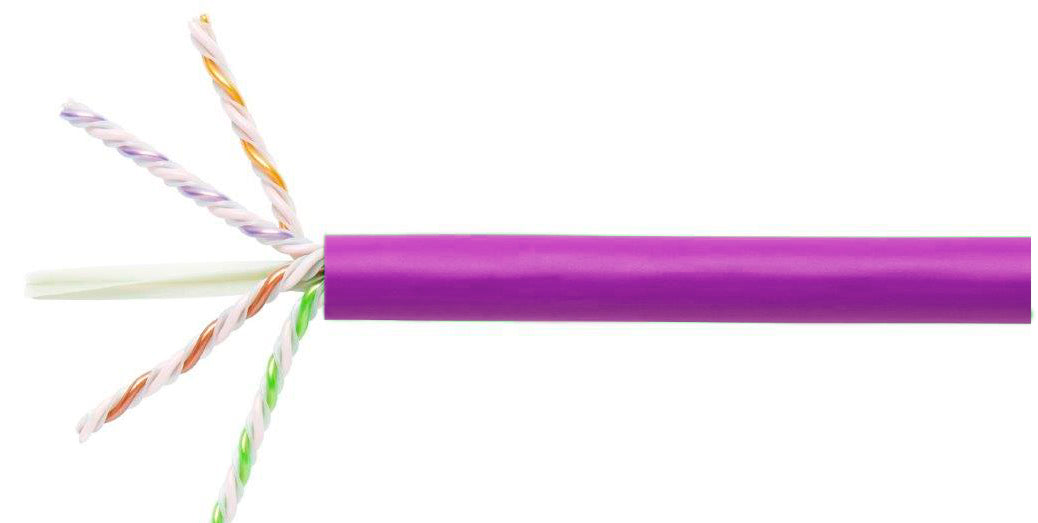

Commscope 2091B PRP C6A 4/23 U/UTP R3000 | GigaSPEED X10D 2091B ETL Verified Category 6A U/UTP Cable, purple jacket, 4 pair count, 3000 ft (914 m) length, reel
Regular price
$2.97
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 2091B PRP C6A 4/23 U/UTP R3000 | GigaSPEED X10D 2091B ETL...
Regular price
$2.97
Unit price
Brand: CommScope
|
SKU:
CMP00424X10D10B103K
Regular price
$2.97
Unit price
Shipping calculated at checkout.
Description
Description
Commscope 2091B PRP C6A 4/23 U/UTP R3000 | GigaSPEED X10D 2091B ETL Verified Category 6A U/UTP Cable, purple jacket, 4 pair count, 3000 ft (914 m) length, reel
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | SYSTIMAX |
| Product Type | Twisted pair cable |
| Product Brand | GigaSPEED X10D |
General Specifications
| Product Number | 2091B |
|---|---|
| ANSI/TIA Category | 6A |
| Cable Component Type | Horizontal |
| Cable Type | U/UTP (unshielded) |
| Conductor Type, singles | Solid |
| Conductors, quantity | 8 |
| Jacket Color | Purple |
| Note | Consult ANSI/TIA-568-C.2 Annex G for length de-rating guidance for cable installation in higher temperature environments |
| Pairs, quantity | 4 |
| Separator Type | Isolator |
| Transmission Standards | ANSI/TIA-568.2-D / ISO/IEC 11801 Class EA |
Dimensions
| Cable Length | 914.4 m / 3000 ft |
|---|---|
| Cable Length Tolerance | ±5% |
| Diameter Over Conductor | 0.889 mm / 0.035 in |
| Diameter Over Jacket, nominal | 7.239 mm / 0.285 in |
| Jacket Thickness | 1.295 mm / 0.051 in |
| Conductor Gauge, singles | 23 AWG |
Electrical Specifications
| dc Resistance Unbalance, maximum | 0.04 |
|---|---|
| dc Resistance, maximum | 7.61 ohms/100 m / 2.32 ohms/100 ft |
| Dielectric Strength, minimum | 1500 Vac / 2500 Vdc |
| LP (Limited Power) Rating | 0.6 A |
| Mutual Capacitance at Frequency | 6.0 nF/100 m |
| 1 kHz | Nominal Velocity of Propagation (NVP) |
| 0.66 | Operating Frequency, maximum |
| 550 MHz | Operating Voltage, maximum |
| 80 V | Remote Powering |
Material Specifications
| Conductor Material | Bare copper |
|---|---|
| Insulation Material | FEP |
| Jacket Material | PVC |
| Separator Material | FEP |
| Separator 2 Material | Polyolefin |
Mechanical Specifications
| Pulling Tension, maximum | 11.34 kg / 25 lb |
|---|
Environmental Specifications
| Installation temperature | 0 °C to +60 °C (+32 °F to +140 °F) |
|---|---|
| Operating Temperature | -20 °C to +75 °C (-4 °F to +167 °F) |
| Environmental Space | Plenum |
| Temperature Rating, ETL | 105 °C / 221 °F |
| Temperature Rating, UL | 105 °C / 221 °F |
| Flame Test Method | CMP/FT6 |
| Smoke Test Method | CMP/FT6 |
Packaging and Weights
| Cable weight | 60.568 kg/km / 40.7 lb/kft |
|---|---|
| Packaging Type | Reel |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- 860 469 402 - SYSTIMAX GigaSPEED X10D 91B Series Cable and 95B Series Cordage - Preparation for Termination
- Statement of Compliance RoHS/REACH
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Use of SYSTIMAX cabling for PoE applications
- SYSTIMAX GigaSPEED X10D 91B Series Cable Termination Video
- CommScope Extended System Warranty
- CommScope Limited Product Warranty
