HellermannTyton 157-00226 | Stud Mount Lateral Cable Tie, Stud Diam...
Description
Description

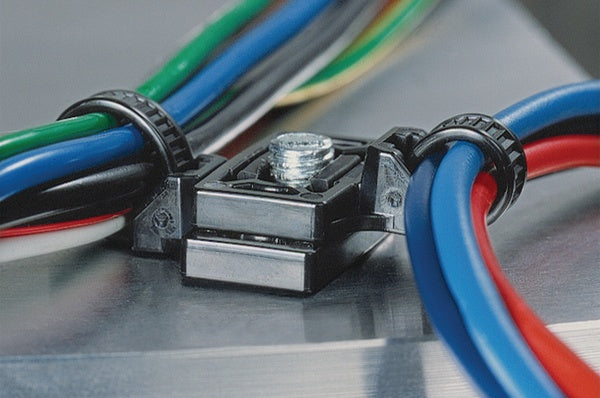

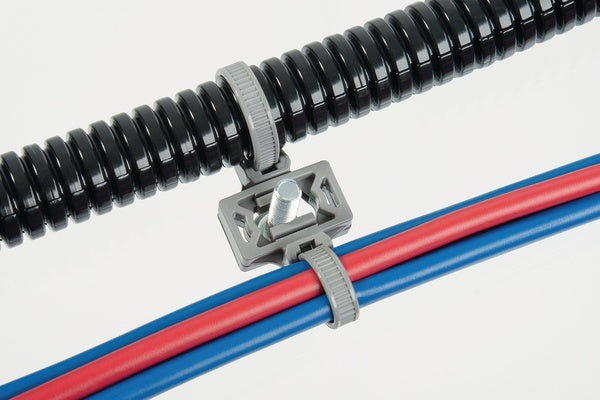

The low profile stud mount allows for several ties to be installed on top of one another. The features can be used to accommodate applications requiring the fastening of a single bundle or multiple bundles on the same stud.
The low profile stud mount allows for several ties to be installed on top of one another. The features can be used to accommodate applications requiring the fastening of a single bundle or multiple bundles on the same stud.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 157-00226 - Features

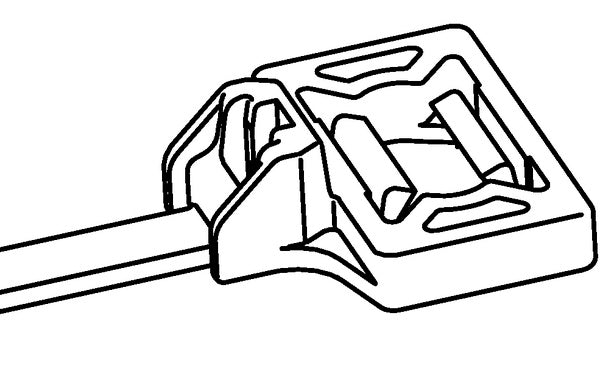

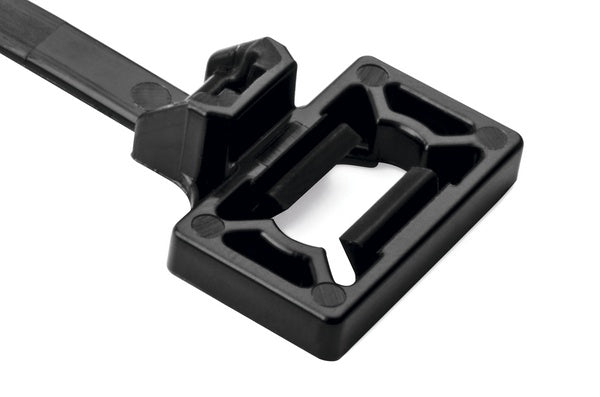

- Special shape provides a .20" lateral adjustment to allow for any misalignment of the stud or incorrect positioning of the tie on the cables.
- Easy to install without the need for a tool.
- Design provides low insertion and high extraction force.
- Patented retention design on clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Independent rotation allows for adjustable routing orientation.
- Cable tie accommodates wide range of secondary bundle sizes.
Specifications
Specifications
HellermannTyton - 157-00226 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Self-Affixing Cable Ties
- Stud Mount Cable Ties
HellermannTyton - 157-00226 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .200 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Spiral Wrap | No |
| UNSPSC Code | 39130000 |
HellermannTyton - 157-00226 - Base Data
| Article Number | 157-00226 |
|---|---|
| Type | T50SOSWSP5E |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Stud Mount Lateral Cable Tie, Stud Diameter .2", 50lbs, 6.0" Long, PA66HS, Black, 500/pkg |
| Global Part Name | T50SOSWSP5E-PA66HS-BK |
HellermannTyton - 157-00226 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 44.96 |
|---|---|
| Minimum Tensile Strength (Metric) | 200 |
| Length L (Imperial) | 6.42 |
| Length L (Metric) | 163 |
| Fixation Method | Weld Stud Fixing |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Width W (Imperial) | 0.181 |
| Width W (Metric) | 4.6 |
| Bundle Diameter Min (Imperial) | 0.04 |
| Bundle Diameter Min (Metric) | 1 |
| Bundle Diameter Max (Imperial) | 1.38 |
| Bundle Diameter Max (Metric) | 35 |
| Thickness T (Metric) | 1.35 |
| Stud Diameter (Metric) | 5.0 mm |
| Stud Diamater (Imperial) | 0.197 |
HellermannTyton - 157-00226 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 157-00226 - Materials & Specifications
| Material | Polyamide 6.6 heat stabilized (PA66HS) |
|---|---|
| Material Shortcut | PA66HS |
| Flammability | UL 94 V-2 |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
