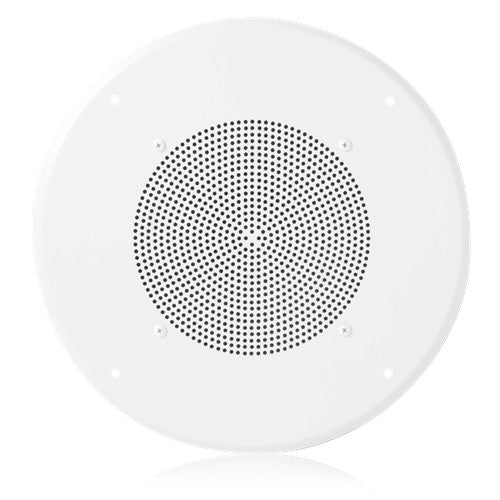

Atlas Sound UKT70-2C-U51-8 | 8 Inch Dual Voice Coil In-Ceiling Speaker for Fire Signaling with 5-Watt 70V Transformer and U51-8 Baffle
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Atlas Sound UKT70-2C-U51-8 | 8 Inch Dual Voice Coil In-Ceiling Spea...
Description
Description
AtlasIED's UKT70-2C-U51-8 are 8" diameter dual voice coil speakers equipped with dual (whizzer) cone and 10 oz. ceramic magnet to deliver extended frequency response with high intelligibility and minimal distortion. Cost-effective units are complete with fire-retardant moisture-proof cones, factory-mounted 70.7V transformer, 6" color-coded leads, DC blocking capacitor and a 51-8 baffle. To comply with UL requirements, speaker packages must be used with UL-approved enclosures
Atlas Sound - UKT70-2C-U51-8 - Features
- Attractive Ceiling-Loudspeaker/Baffle Assemblies Provide Unobtrusive Appearance of Life Safety and Emergency Signaling Loudspeakers
- Listed Under UL Standard 1480 (Speakers for Fire-Protective Signaling Systems)
- Selection of Baffle Styles and Multi-Tapped Transformers Meet a Variety of Aesthetic and Application Requirements
- Selection of UL Approved, Companion Enclosures is Offered
- UL Listed, Fire-Retardant and Moisture-Proof Cone Loudspeakers Reproduce Emergency Alarm and Voice Instructions with Superior Intelligibility and Extended Frequency Response
- Dual 1" Voice Coils
Specifications
Specifications
Atlas Sound - UKT70-2C-U51-8 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Intercom
- Sub Stations
- Speakers
- Life Safety
- 8" In-Ceiling & In-Wall Speakers
Atlas Sound - UKT70-2C-U51-8 - Specifications
| Frequency Response | 60Hz - 8kHz |
|---|---|
| Sensitivity | 94dB Peak, 91dB Avg. |
| Power Taps | .5, 1, 2 & 5 Watts |
| Depth | 2 7/8" (7.3025 cm) |
| Diameter | 8" (20.32 cm) |
| Safety Listed | 1480 |
| UNSPSC Code | 46171600 |
