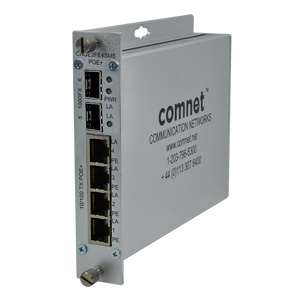

Comnet CNGE2FE4SMS | 6 Port Gigabit and 10/100 Mbps Ethernet Self-Managed Switch, 2 SFP FX, 4TX
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Comnet CNGE2FE4SMS | 6 Port Gigabit and 10/100 Mbps Ethernet Self-M...
Description
Description
The ComNet CNGE2FE4SMS is a six-port self-managed switch with uplink management functionality and provides 4 copper ports operating at 10/100 Mbps and two Gbps optical SFP ports.
It is designed to combine four electrical ports and one Gbps SFP port int o one of two optical SFP ports.
The CNGE2FE4SMS SFP ports forwards this data to the next network device or can be configured for drop and insert operation.
The CNGE2FE4SMS uses ComNet SFPs for connector and distance options.
There is no programming req uired to use this product.
The ComNet comes pre-programmed, preventing network video flooding with dip switch selection of fiber ports as uplink or as an unmanaged switch.
Comnet - CNGE2FE4SMS - Features
- No Programming Required
- 10/100/1000 Mbps Ethernet
- 10/100 BASE-T/TX electrical ports
- 1000 BASE-FX SFP ports for Gigabit operation
- 100 BASE-FX optical port
- Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex d.
- Optical port supports 1000 Mbps full duplex data
- Optical port supports 100 Mbps full duplex data
- Pre-programmed Port for uplink
- Automatic MDI/MDI-X crossover
- Compliant with the environmental requirements (ambient operating temperature, mechanical ck, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Power and Activity status LED indicators
- Interchangeable between stand-alone or rack mount use -ComFit
- IEEE 802.3 compliant
- Lifetime Warranty
Specifications
Specifications
Comnet - CNGE2FE4SMS - Specifications
| UNSPSC Code | 43222612 |
|---|
