System Sensor B112LP - Base - Base, 4-Wire, 24 Vdc, Form A
Regular price
$64.25
Unit price
Brand: System Sensor
|
SKU:
674128
Regular price
$64.25
Unit price
Description
Description
System Sensor B112LP | Base, 4-wire, with Form A&C Relay Contacts, for 100 Series Smoke Detectors

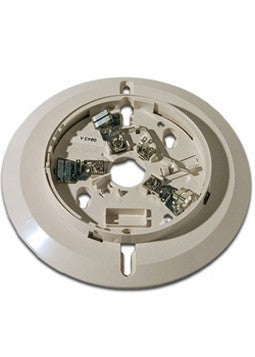

The Model B112LP detector base is designed for use with System Sensor models 2151 photo electronic and 1151 ionization detector heads. This two-wire base is equipped with screw terminals for the connection of power, ground, and an optional remote annunciator.
System Sensor - B112LP - Features
- 4-wire base
- Form A/C contacts
- Compatible with System Sensor 100 Series Smoke Detectors
- Mounting: 4-inch square box with or without plaster ring. Min. depth–1.5 inches / 3-1/2-inch octagon box. Min. depth–1.5 inches
- Operating Temperature Range: 0° to 49°C (32° to 120°F)
- Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing
- Electrical Ratings - includes base and detector
- System Voltage: 24 VDC
- Maximum Ripple Voltage: 4 Volts peak-to-peak
- Start-Up Capacitance: 0.02µF Maximum
- General Information
- Name: System Sensor B112LP 4-Wire Base with Form AC Relay Contacts for 100 Series Smoke Detectors, Honeywell International, Inc, System Sensor
- Category: System Sensor, Fire, Fire Detection Devices, Detector Bases
- UPC Code: 783863002892
- Country of Origin: Mexico. Country of origin is subject to change.
Specifications
Specifications
System Sensor - B112LP - Product Categories
- Security
- Fire Alarm Systems
- Smoke and Heat Detection
System Sensor - B112LP - Specifications
| UNSPSC Code | 46171600 |
|---|---|
| Brand Name | System Sensor |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | B112LP |
| Product Model | B112LP |
| Product Name | B112LP Mounting Base |
| Product Series | 100 |
| Product Type | Detector Base |
| Weight (Approximate) (g) | 136.078 |
System Sensor - B112LP - Physical Characteristics
| Color | White |
|---|---|
| Height | 1" |
| Height (mm) | 24.13 |
| Weight (Approximate) | 4.80 oz |
| Technical Information | - |
| Device Supported | Smoke Detector |
