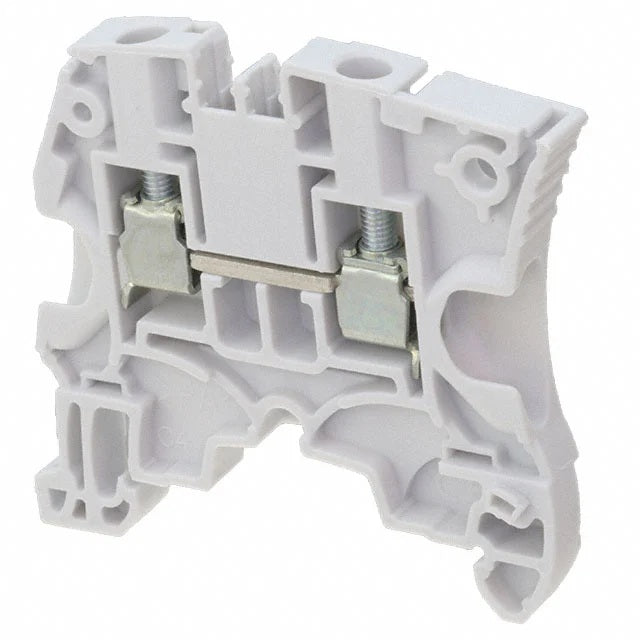

TE Connectivity 1SNK506010R0000 | Screw Clamp Terminal Block, 1-Circuit, Block Feed-Through, 2 Positions

TE Connectivity - 1SNK506010R0000 - Features

• Sub-function: 2 clamps
• Numerous Functions
• Self-Locking Clamp Design
• Funneled Side Entry for up to Two Ferruled or Non-Ferruled Solid or Stranded Wires
• Wide Range of Wire Sizes from 24 AWG to 2 AWG, Solid or Stranded
• Terminal Block Spacing Range of 5 mm to 160.5 mm
• Current Carrying Capacity up to 310 Amps with Rated Voltages Ranging from 300 to 600
• IP20 Protection (Touch-Safe)
• Complete Line of Accessories, Marking Systems & Ferrules and Tools
• The screw clamp is the most recognized and widely used connection technology. Entrelec by ABB’s screw clamp connections are strong and secure and also, mount on industry standard DIN rails.
• Technical Information:
• UL Listed, CSA, ATEX, CB, CE, GOST Certified, IECEx Approved, RoHS Compliant
