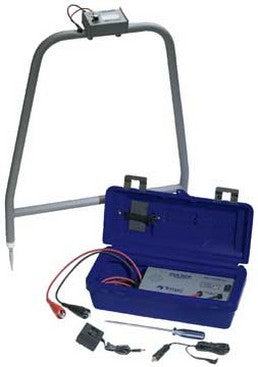

Tempo PE2003-G | Pulse-Ground Fault Locator

Greenlee - PE2003 - Features

• Model PE2003 Pulser Fault Locator completes your buried cable trouble-shooting tool set, pinpointing even the smallest breaks in buried cable insulation
• The portable transmitter pulses a high-voltage signal that radiates into the earth at fault locations
• With the A-frame mounted receiver, a visual analog meter points the way to the source of the voltage and identifies multiple faults on a single wire, indicating the need to replace instead of repair
• Extra long test leads feature heavy duty alligator clips for use on multiple cable types
• Built to withstand years of demanding service, the 2003 Pulser Fault Locator is a great complement to any buried cable locator
• Multiple faults on a single wire can be identified, indicating the need to replace instead of repair
• Extra-long test leads feature heavy-duty alligator clips for use on multiple cable types
• Battery operated (one 12V and one 9V battery is included)
• Battery life; transmitter - 23 hrs per charge; receiver, 200 hrs
• Transmitter power - 3400 VDC peak
• Voltage protection - 240 VAC, 400 VDC
• Transmitter - Aluminum housing, polyethylene case, 6.5 x 8.5 x 17" in case
• Receiver - Powder-coated aluminum, 3.25 x 21.75 x 33.5" on A-frame
