Brand: Thomas & Betts
|
SKU:
830814

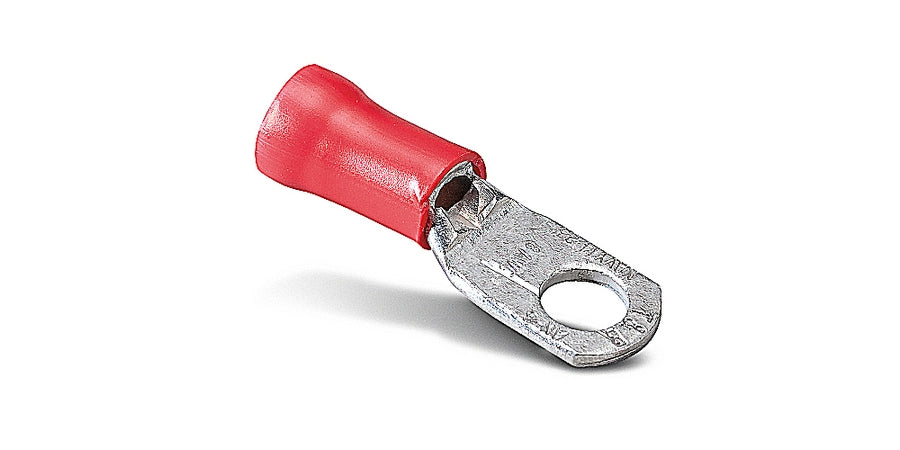

Thomas & Betts RDV167 | Ring Terminal, No. 8 Stud, 2 AWG Maximum, Vinyl Insulation, Red Insulation, Copper, 600 V
Regular price
$3.98
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts RDV167 | Ring Terminal, No. 8 Stud, 2 AWG Maximu...
Regular price
$3.98
Unit price
Description
Description
Thomas & Betts RDV167 | Ring Terminal, No. 8 Stud, 2 AWG Maximum, Vinyl Insulation, Red Insulation, Copper, 600 V
Specifications
Specifications
Thomas & Betts - RDV167 - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Electrical Connectors
- Terminals
Thomas & Betts - RDV167 - Specifications
| Brand Name | Thomas & Betts |
|---|---|
| Manufacturer Part Number | RDV167 |
| Item Description | Ring Terminal, No. 8 Stud, 2 AWG Maximum, Vinyl Insulation, Red Insulation, Copper, 600 V |
| UPC | 78621095868 |
| Barrel Size | L: 0.89 In. |
| Barrel Type | Serrated |
| Center Spacing | 0.28 In. |
| Color | Red |
| Conductor Max | 8 Awg |
| Conductor Min | 8 Awg |
| Connection Type | Crimp |
| Contact Finish | Electro Tin-Plated |
| Installation Tool | Erg4007 Crimping Tool |
| Insulation Color | Red |
| Insulation Diameter | 0.34 In. |
| Insulation Material | Vinyl |
| Insulation | Vinyl |
| Length | 1.48 In. |
| Material | Copper |
| Number Of Mounting Holes | 1 |
| Overall Length | 1.48 In. |
| Overall Width | 0.42 In. |
| Package Quantity | 200 Pack |
| Product Type | Ring Terminal |
| Seam Style | Overlapping Seam, Brazed Barrel |
| Stud Size | No. 8 |
| Temperature Rating | 105 C |
| Terminal Type | Large Ring Lug |
| Tongue Size | Wxt: 0.42 X 0.04 In. |
| Voltage Rating | 600V |
| Width | 0.42 In. |
| Wire Size - Maximum | 2 Awg |
| Approval | UL, CSA |
