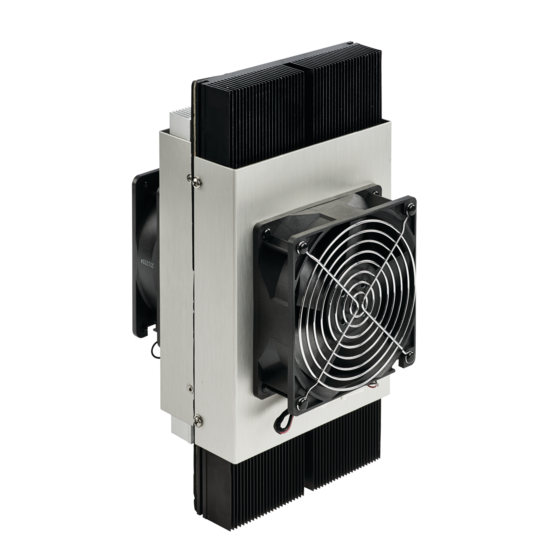

Hoffman TE121048020 | Thermoelectric Cooler 48v without ShroudTE12
Description
Description
Thermoelectric Coolers minimize downtime and component loss by removing heat around critical components within an enclosure. These compact, low-profile coolers using the Peltier effect allow for cooling of small indoor and outdoor enclosures. No condensers, compressors or filters are required making it a reliable solution for demanding low-maintenance environments and low noise.
Operates on the Peltier effect for cooling or heating
Main Features
- Operates on the Peltier effect for cooling or heating
- Contains no refrigerant, making it earth friendly
- Filterless design reduces maintenance requirements
- Compressor-free air conditioning for demanding indoor and outdoor applications
- Prewired with simple terminal block for easy wiring connections
- Shrouded and unshrouded models included in standard packages
- Operating temperature range -40 C (-40 F) to 55 C (131 F)
- Partial recess mount
- DC Powered operation for 24V and 48V applications
- Low profile design allows for mounting vertically and horizontally on any enclosure to avoid interference with internal components
Specifications
Specifications
Industry Standards
- UR, cUR Recognized; Type 12, 3R, 4, 4X; File No. SA6453
- CE
- IP 65
Specifications
| Height | 11.81 in / 299.974 mm |
|---|---|
| Width | 6.02 in / 152.908 mm |
| Depth | 7.4 in / 187.96 mm |
| Nominal Capacity Btu/h | 321 Btu/h |
| Nominal Capacity Watts | 94 W |
| Nominal Voltage | 48 V |
| Voltage DC | 40 V |
| Max Current | 4.4 A |
| Operating Temperature | ?40 to 131 °F / ?40 to 55 °C |
| Protection Rating | NEMA Type 12; NEMA Type 3R; NEMA Type 4; NEMA Type 4X; IP65 |
| Material | Aluminum |
| Finish | Anodized |
| BULLETIN NUMBER | MCLT |
