Brand: Toa Electronics Inc. | SKU: 305547

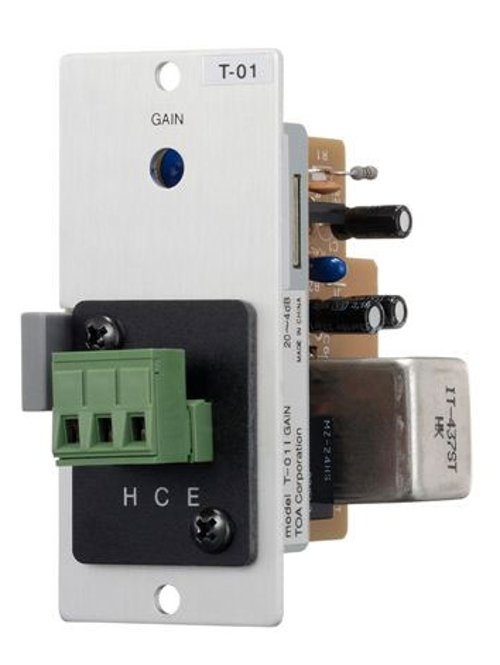

TOA Electronics T-01S T | Balanced Line Output Module for 900 Series Amplifiers, Removable Terminal Block

$140.09

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The T-O1S is a line output module to be used in conjunction with the 900 series components and other TOA equipment. It has a transformer balanced line output with removable terminal block connector, and gain control.

For transformer-isolated output of mixing bus signal to feed other mixers, amps and tape recorders. (Functions only in A-900MK2, M-900MK2, W-900A Series, 700 Series and BG-M Series; not usable in P900MK2 Series)

Specifications

Controls / Functions: Gain Control
Gain (Adjustable): 4 ~ 20dB
Max Input/Output: +18dB
Signal to Noise (S/N): 80dBu
Physical Connector: Removable Terminal Block
Current Consumption: 35mA
Output Level: Adjustable -22 to -6dB* (at 600? terminated, input: -20dB*)
Output Impedance: 600?, balanced transformer—isolated
Frequency Response: 20Hz - 20kHz +/- 2.5dB
Distortion: 0.1% or less (1kHz, output: 0dB*)
Noise Level: -90dB* (20Hz - 20kHz BPF)
Gain: 4—20dB
Connector: Removable terminal block (3P)
Dimensions: 35mm (W) X 78mm (H) X 88mm (D) (1.38" X 3.07" X 3.46")
Weight: Max. 95g (0.21lbs)

Additional Specifications

UNSPSC Code	46171600
