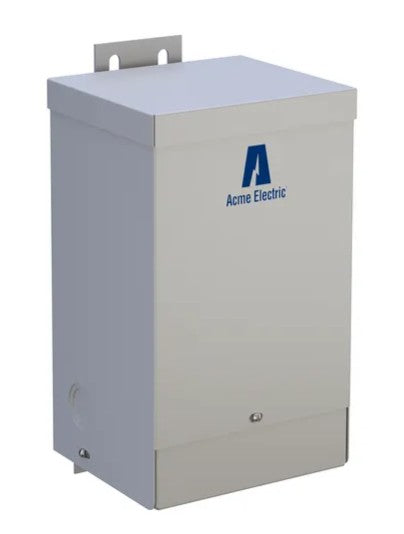

Acme Electric T253108S | Distribution Transformer, 0.5 KVA, 1, 600 V Primary, 120/240 V Secondary
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Acme Electric T253108S | Distribution Transformer, 0.5 KVA, 1, 600 ...
Description
Description
Distribution Transformer; Kilovolt-Amperes: 0.5 KVA; Phase: 1; Voltage: 600 V Primary, 120/240 V Secondary; Case Style: Encapsulated; Construction: Encapsulated; Dimensions: LxWxH: 4.2 x 4.37 x 9.06 in.; Enclosure: NEMA 3R; Enclosure Rating: NEMA 3R; Frequency: 50/60 Hz; Frequency Rating: 50/60 Hz; KVA: 0.5; Mounting: Wall; Primary Main Breaker: 600 V; Secondary Main Breaker: 120/240 V; Taps: 2%; Temperature Rise: 115 C; Transformer Type: Dry Type; Volts, Primary: 600 V; Volts, Secondary: 120/240 V; Weight: 15 lb.; Winding: Copper; Approvals/Ratings: CSA, UL
Specifications
Specifications
Acme Electric - T253108S - Product Categories
- Power Products
- Power Distribution and Protection
- Transformers and Accessories
- Dry Type Transformers
Acme Electric - T253108S - Specifications
| Manufacturer Name | Acme Electric |
|---|---|
| Manufacturer Part Number | T253108S |
| Item Description | Distribution Transformer, 0.5 KVA, 1, 600 V Primary, 120/240 V Secondary |
| Case Style | Encapsulated |
| Construction | Encapsulated |
| Dimensions | LxWxH: 4.2 x 4.37 x 9.06 in. |
| Enclosure HxWxD | 9.06x4.37x4.20" (23.0x11.1x10.7cm) |
| Enclosure Rating | NEMA 3R |
| Enclosure | NEMA 3R |
| Frequency Rating | 50/60 Hz |
| Frequency | 50/60 Hz |
| KVA | 0.5 |
| Kilovolt-Amperes | 0.5 KVA |
| Mounting | Wall |
| Phase | 1 |
| Primary Main Breaker | 600 V |
| Product Type | Distribution Transformer |
| Secondary Main Breaker | 120/240 V |
| TYPE | TRANSFORMERS |
| Taps | 2% |
| Temperature Rise | 115 C |
| Transformer Type | Dry Type |
| Type | General Purpose Transformer |
| Voltage | 600 V Primary, 120/240 V Secondary |
| Voltage, Primary | 600 V |
| Voltage, Secondary | 120/240 V |
| Weight | 15 lb. |
| Winding | Copper |
