Brand: Trendnet
|
SKU:
802424

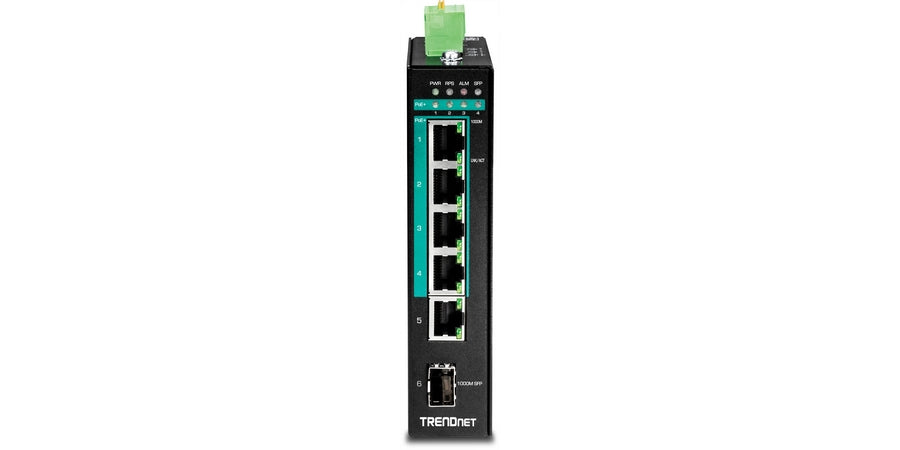

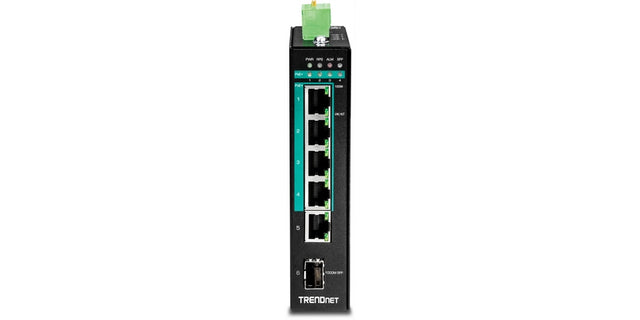

Trendnet TI-PG541I | Industrial Ethernet PoE+ Switch, 6-Port, 130 W Power Consumption
Regular price
$471.51
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Trendnet TI-PG541I | Industrial Ethernet PoE+ Switch, 6-Port, 130 W...
Regular price
$471.51
Unit price
Description
Description
Trendnet TI-PG541I | Industrial Ethernet PoE+ Switch, 6-Port, 130 W Power Consumption
TRENDnet's 6-port Hardened Industrial Gigabit PoE+ Layer 2 Managed DIN rail switch, model TI-PG541i, has four Gigabit PoE+ ports, one Gigabit port, one Gigabit SFP slot and a 120 W PoE budget. The switch is equipped with an IP30-rated metal enclosure and designed to withstand a high-degree of vibration, shock, protection against ESD / EMI / surge and operate within a wide temperature range (- 40 to 70 C (- 40 to 158 F)) for harsh environments. L2 management include features such as PoE port control, VLAN, multi-cast and QoS which allow for network integration flexibility.
TRENDnet's 6-port Hardened Industrial Gigabit PoE+ Layer 2 Managed DIN rail switch, model TI-PG541i, has four Gigabit PoE+ ports, one Gigabit port, one Gigabit SFP slot and a 120 W PoE budget. The switch is equipped with an IP30-rated metal enclosure and designed to withstand a high-degree of vibration, shock, protection against ESD / EMI / surge and operate within a wide temperature range (- 40 to 70 C (- 40 to 158 F)) for harsh environments. L2 management include features such as PoE port control, VLAN, multi-cast and QoS which allow for network integration flexibility.
Trendnet - TI-PG541I - Features
- Redundant power inputs and alarm relay output
- 120 Watts total power budget
- Grounding point protects equipment from external electrical surges
Specifications
Specifications
Trendnet - TI-PG541I - Product Categories
- Networking and Wireless
- Networking
- Industrial LAN
- Industrial Power Over Ethernet
Trendnet - TI-PG541I - Specifications
| Manufacturer Name | Trendnet |
|---|---|
| Manufacturer Part Number | TI-PG541I |
| Item Description | Industrial Ethernet PoE+ Switch, 6-Port, 130 W Power Consumption |
| Data Rate | 10 Mbps Half Duplex, 20 Mbps Full Duplex Ethernet, 100 Mbps Half Duplex, 200 Mbps Full Duplex Fast Ethernet, 2000 Mbps Full Duplex Gigabit, 2000 Mbps Full Duplex SX/LX |
| Data Transfer Rate | 10 Mbps Half Duplex, 20 Mbps Full Duplex Ethernet, 100 Mbps Half Duplex, 200 Mbps Full Duplex Fast Ethernet, 2000 Mbps Full Duplex Gigabit Ethernet, 2000 Mbps Full Duplex SX/LX SFP |
| Depth | 1.22 in. |
| Dimensions | LxWxH: 135 x 120 x 31mm |
| Height | 4.72 in. |
| Housing Material | Metal |
| IP Rating | IP30 |
| Illuminated | Yes |
| Indicators | LED |
| Input Voltage | 48 to 57 VDC |
| Interface/Ports | SFP |
| Layer Supported | Layer 2 |
| Management Type | Managed |
| Material | Metal |
| Mounting Location | DIN Rail-Mount |
| Mounting Type | DIN Rail-Mount |
| Number of Ports | 6 |
| Operating Temperature - Maximum | 70 C |
| Operating Temperature - Minimum | 40 C |
| Port Configuration | (4) Gigabit PoE+, (1) Gigabit, (1) Gigabit SFP |
| Power Consumption | 130 W |
| Product Type | Hardened Industrial Ethernet PoE+ Switch |
| Relative Humidity | 95% Non-Condensing |
| Special Rating | IP30 |
| Switching Capacity | 12 Gbps |
| Temperature Rating | -40 to +158 F |
| Voltage | 48 to 57 VDC |
| Width | 5.98 in. |
