Brand: CommScope
|
SKU:
CMR-423COM-UTG10U06L

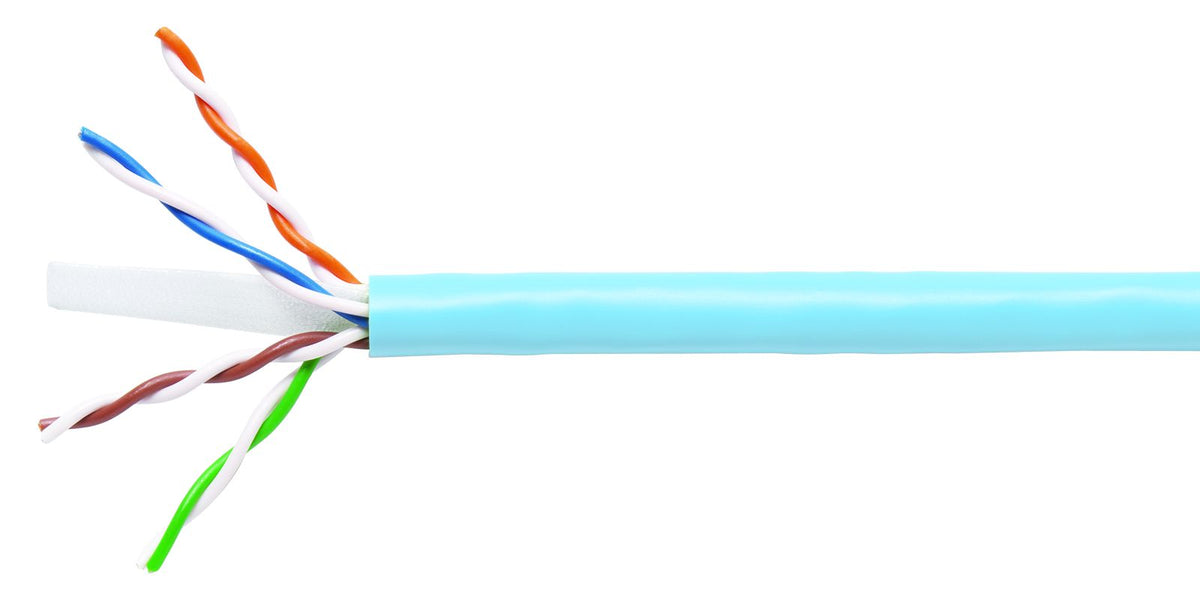

Commscope 1071E-UTG LBL C6 4/23 U/UTP W1000 | GigaSPEED XL 1071E-UTG ETL Verified Category 6 U/UTP Cable, non-plenum, light blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE box
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 1071E-UTG LBL C6 4/23 U/UTP W1000 | GigaSPEED XL 1071E-UT...
Regular price
$1.46
Unit price
Brand: CommScope
|
SKU:
CMR-423COM-UTG10U06L
Regular price
$1.46
Unit price
Shipping calculated at checkout.
Description
Description
Commscope 1071E-UTG LBL C6 4/23 U/UTP W1000 | GigaSPEED XL 1071E-UTG ETL Verified Category 6 U/UTP Cable, non-plenum, light blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE box
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / Latin America / North America |
|---|---|
| Portfolio | SYSTIMAX |
| Product Type | Twisted pair cable |
| Product Brand | GigaSPEED XL |
General Specifications
| Product Number | 1071E-UTG |
|---|---|
| ANSI/TIA Category | 6 |
| Cable Component Type | Horizontal |
| Cable Type | U/UTP (unshielded) |
| Conductor Type, singles | Solid |
| Conductors, quantity | 8 |
| Jacket Color | Light blue |
| Pairs, quantity | 4 |
| Separator Type | Bisector |
| Transmission Standards | ANSI/TIA-568.2-D / CENELEC EN 50288-6-1 / ISO/IEC 11801 Class E |
Dimensions
| Cable Length | 304.8 m / 1000 ft |
|---|---|
| Diameter Over Conductor | 1.029 mm / 0.0405 in |
| Diameter Over Jacket, nominal | 5.893 mm / 0.232 in |
| Jacket Thickness | 0.559 mm / 0.022 in |
| Conductor Gauge, singles | 23 AWG |
Electrical Specifications
| dc Resistance Unbalance, maximum | 0.05 |
|---|---|
| dc Resistance, maximum | 7.61 ohms/100 m / 2.32 ohms/100 ft |
| Dielectric Strength, minimum | 1500 Vac / 2500 Vdc |
| Mutual Capacitance at Frequency | 5.6 nF/100 m |
| 1 kHz | Nominal Velocity of Propagation (NVP) |
| 0.69 | Operating Frequency, maximum |
| 300 MHz | Operating Voltage, maximum |
| 80 V | Remote Powering |
Material Specifications
| Conductor Material | Bare copper |
|---|---|
| Insulation Material | Polyolefin |
| Jacket Material | PVC |
| Separator Material | Polyolefin |
Mechanical Specifications
| Pulling Tension, maximum | 11.34 kg / 25 lb |
|---|
Environmental Specifications
| Installation temperature | 0 °C to +60 °C (+32 °F to +140 °F) |
|---|---|
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Environmental Space | Non-plenum |
| Temperature Rating, UL | 75 °C / 167 °F |
| Flame Test Method | CMG / CMR |
Packaging and Weights
| Cable weight | 38.097 kg/km / 25.6 lb/kft |
|---|---|
| Packaging Type | WE TOTE box |
