Panduit GPL-15-X | Bronze Grounding Clamp, U-Bolt, single cable | U...
Description
Description
The ability to provide a grounding system that is both reliable and economical is dependent upon finding the right connectors for the application. Panduit offers grounding connectors for a wide variety of conductor combinations and mounting configurations in high strength electrolytic copper, aluminum and bronze alloy materials. Globally distributed StructuredGround mechanical connectors provide fast and easy terminating of ground conductors to water pipe, ground rods, conduit, iron pipe and structural steel for highest reliability and lowest installed cost. With the addition of new ground clamps to the existing line-of StructuredGround mechanical connectors, Panduit delivers the breadth of line to supply the right connector for each unique job, providing maximum reliability and safety for all critical electrical connections throughout your physical infrastructure.

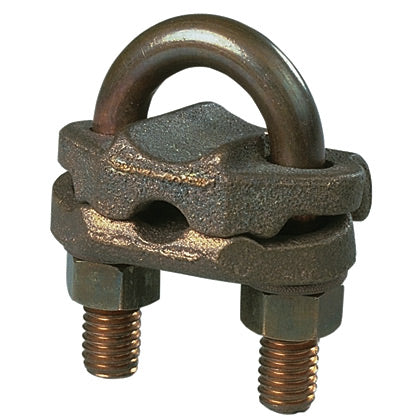

Panduit StructuredGround Grounding Toe Clamp, Single Cable U-Bolt, Series: GPL, 0.204 to 0.419 in Conduit, 1 in Pipe, Solid/Stranded Copper Conductor, 4 to 2/0 AWG Conductor, Bronze/Silicon Bronze, Galvanic/Electrolytic Zinc Plated, Bronze, 2.63 in L x 1.38 in W x 2.75 in H
Features + Benefits
- High strength silicon bronze hardware provides long term reliable assembly
- Accommodates a wide range of pipe, tube, rod and conductor sizes, minimizes inventory requirements
- Made from high strength, electrolytic cast bronze
- UL listed for grounding and bonding and suitable for direct burial in earth or concrete
- Accommodates a wide range of pipe, tube, rod and conductor sizes, minimizing inventory requirements, saving cost
Panduit GPL-15-X | Bronze Grounding Clamp, U-Bolt, single cable | UPC - 07498360494 Key Specs
| Sub Brand | StructuredGround |
| Material | Bronze/Silicon Bronze |
| Iron Pipe Size (In.) | 1 |
| Iron Pipe Size (mm) | 32 |
| Overall Length (In.) | 2.63 |
| Overall Length (mm) | 66.8 |
| Overall Width (In.) | 1.63 |
| Overall Width (mm) | 41.4 |
| Overall Height (In.) | 2.75 |
| Overall Height (mm) | 69.9 |
| Bolt Diameter (In.) | 3/8 |
| Bolt Diameter (mm) | 9.5 |
| Hex Size (In.) | 9/16 |
| Hex Size (mm) | 14 |
| Standards Met | cULus Listed 467, DB Rated |
| Surface Treatment | Galvanic/electrolytic zinc plated |
| Product Type | Bronze Grounding Clamp, U-Bolt, single cable |
| Part Features | Accommodates a wide range of pipe, tube, rod and conductor sizes, minimizing inventory requirements, saving cost. |
Panduit GPL-15-X | Bronze Grounding Clamp, U-Bolt, single cable | UPC - 07498360494 Data Sheets
| Part Drawings | Part Drawing - DWG - GPL-15-X_2D | Download and View |
Panduit GPL-15-X | Bronze Grounding Clamp, U-Bolt, single cable | UPC - 07498360494 Environmental Information
| Panduit's RoHS Statement | Download and View |
