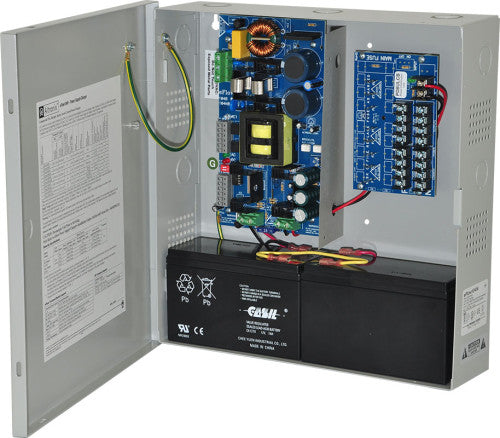

Altronix EFLOW104N8DV | Power Supply Charger, 8 PTC Class 2 Outputs, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC300 Enclosure

Altronix EFLOW104N8DV | Power Supply Charger, 8 PTC Class 2 Outputs, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC300 Enclosure

Input

220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.7A.
Input fuse: 5A/250V.

Output

Eight (8) PTC protected outputs (auto-resettable).
Outputs are rated @ 2A.
24VDC @ 10A supply current.
Auxiliary output rated @ 1A (unswitched).
Overvoltage protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.

Supervision

AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
Battery fail and presence supervision (form "C" contacts).
Low power shutdown. Shuts down DC output terminals if battery voltage drops below 70-75% (depending on the power supply). Prevents deep battery discharge.

Fire Alarm Disconnect

Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.

Electrical / Temperature:

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 123 BTU/Hr.
System AC input VA requirement: 594VA.

Visual Indicators

Green AC Power LED indicates 220VAC present.
AC input and DC output LED indicators.

Additional Features

Short circuit and overload protection.
Unit is complete with power supply, enclosure, battery leads, and cam lock.
