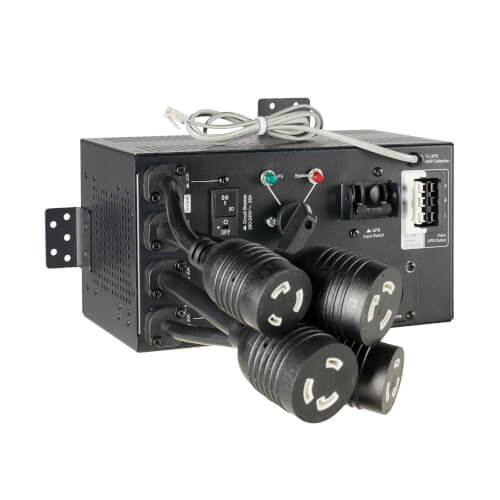

Tripp-Lite MBP6K208G2 | 9PX G2 Maintenance Bypass for Select 3kVA t...
Description
Description
The MBP6K208G2 works with Eaton’s 9PX5KG2, 9PX6KG2, 9PX6K-L and 9PX3K3UG2 UPS systems. The bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from a power source to equipment when in bypass mode. The MBP6K208G2 features hardwired input and output connections, as well as two NEMA L6-20R and two NEMA 6-30R outlets. You can mount the maintenance bypass to the rear of the UPS or extended battery module (EBM) without taking up additional rack space. You can also mount the bypass on the side or top of the rack, on a wall or adapt it for tower installat ion using the included hardware.
Tripp-Lite - MBP6K208G2 - Features
- Isolates UPS from connected loads for maintenance without powering down equipment
- Designed for 0U rear rack mounting, tower or wall mounting using the included hardware
- Compatible with Eaton?s 9PX5KG2, 9PX6KG2, 9PX6K-L and 9PX3K3UG2 UPS systems
Specifications
Specifications
Tripp-Lite - MBP6K208G2 - Specifications
| UNSPSC Code | 39121011 |
|---|---|
| UPC Code | 786689876050 |
| Input Plug Type | 786689876050 |
| Output Capacity (VA) | 6000 |
| Output Capacity (kVA) | 6 |
| Frequency Compatibility | 50 / 60 Hz |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| Output Receptacles | (1) Hardwire; (2) L6-20R; (2) L6-30R |
| Primary Form Factor | Rackmount; Tower |
| Rack Height | 0U |
| Unit Dimensions (hwd / in.) | 5.120 x 9.410 x 4.920 |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 0-95% non-condensing |
