Brand: Tripp-Lite
|
SKU:
932001

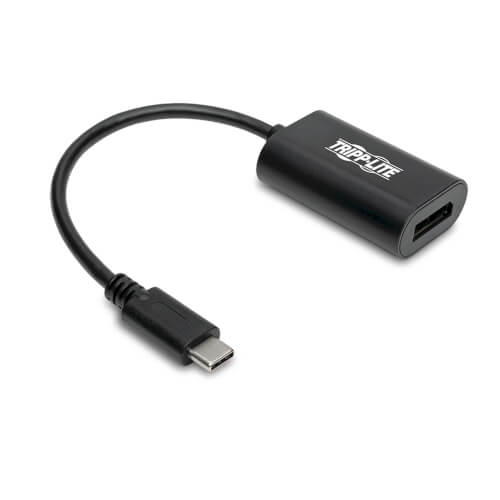

Tripp-Lite U444-06N-DP4K6B | USB-C to Displayport 4K 60Hz Adapter, Black
Regular price
$39.67
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite U444-06N-DP4K6B | USB-C to Displayport 4K 60Hz Adapter, ...
Regular price
$39.67
Unit price
Description
Description
Connects your existing 4K DisplayPort TV, monitor or projector to the USB-C or Thunderbolt 3 port on your tablet, laptop, notebook, MacBook, Chromebook, smartphone or PC.
Features
- Connects a DisplayPort Display to Your USB-C or Thunderbolt 3 Device
- Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
- Ideal for giving video presentations, editing multiple documents or streaming video for digital signage
- Common Applications
- Extends video from your primary display to another
- Duplicates the same video on 2 displays
- Converts a secondary display to your primary display
- Crystal-Clear 4K Video and Digital Audio
- Supports UHD video resolutions up to 3840 x 2160 (4K) @ 60 Hz
- Supports 24-bit Deep Color (8 bits per channel)
- Supports 7.1-channel surround sound
- Built-In Cable with Reversible USB-C Connector
- Fumble-free reversible USB-C plug connects in either direction for quick connection every time
- Ready for Instant Use
- Plug-and-play operation with no software, drivers or external power required
- Half the footprint of a credit card for easy carrying in a pocket, purse or laptop bag
- Backward compatible with non-4K displays
Features & Specifications
| Displayport Specification | 1.3 |
|---|---|
| HDCP Specification | 2.2 |
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
Specifications
Specifications
Highlights
- Supports USB DisplayPort Alternate Mode for transmitting audio/video
- Supports UHD video resolutions up to 3840 x 2160 (4K) @ 60 Hz
- Supports 7.1-channel surround sound
- Reversible USB-C plug connects in either direction
- Plug-and-play operation with no software or drivers required
System Requirements
- Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
- Display device with DisplayPort input
Overview
| UPC Code | 37332203427.0 |
|---|---|
| Technology | USB 3.1 (Gen 1); USB; DisplayPort |
Video
| Max Supported Video Resolution | DP: 3840 X 2160 (4K) @ 60HZ |
|---|---|
| HDR Support | Yes |
Audio
| Audio Specification | 7.1-Channel Surround Sound |
|---|
Input
| Bus Powered | Yes |
|---|---|
| Product Length (in.) | 6 |
| Product Length (cm.) | 15.24 |
| Product Length (ft.) | 0.5 |
| Product Length (m.) | 0.15 |
Battery
| Battery Charging (5V/1.5A Port) | No |
|---|
Physical
| Color | Black |
|---|---|
| Cable Jacket Rating | VW-1 |
| Cable Outer Diameter (OD) | 4.0mm |
Environmental
| Operating Temperature Range | -4 to 158 F (-20 to 70 C) |
|---|---|
| Storage Temperature Range | -4 to 185 F (-20 to 85 C) |
| Relative Humidity | 5% to 95% RH, Non-Condensing |
| BTUs | 0.61 BTU/Hr |
| Power Consumption (Watts) | 0.18 |
Connections
| Ports | 1 |
|---|---|
| Side A - Connector 1 | USB C (MALE) |
| Side B - Connector 1 | DISPLAYPORT (FEMALE) |
| Connector Plating | Nickel |
| Contact Plating | Gold |
Standards & Compliance
| Certifications | Tested to CE; FCC; RoHS; REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
Documents and Downloads
Documents and Downloads
- Owner's Manual for U444-06N-HD4K6B & U444-06N-DP4K6B (Multi-language)
- Owner's Manual for USB Type-C Display Adapters (English)
- USB Type-C Solutions Brochure (English)
- Tripp Lite USB-C Video Adapters Quick Reference Guide (English)
- EC Declaration
- USB: Port Types and Speeds Compared
- Download images for this product
