Brand: Tripp-Lite | SKU: 812848

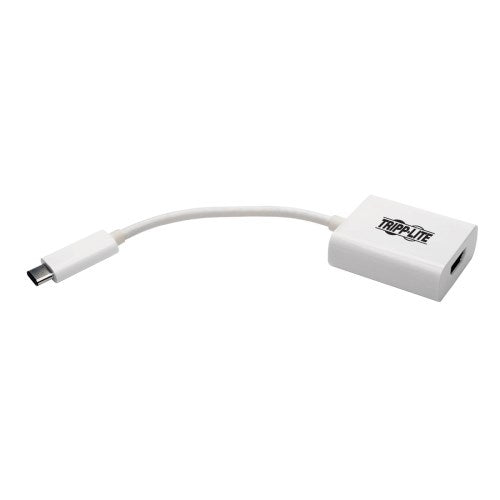

Tripp-Lite U444-06N-HD-AM | USB-C to HDMI 4K Adapter with Alternate Mode - DP 1.2, White

$41.36

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Connects your existing 4K HDMI TV, monitor or projector to the USB-C or Thunderbolt 3 port on your tablet, laptop, notebook, MacBook, Chromebook, smartphone or PC.

Features

Connects an HDMI Display to Your USB-C or Thunderbolt 3 Device
Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
Ideal for giving video presentations, editing multiple documents or streaming video for digital signage
Common Applications
Extends video from your primary display to another
Duplicates the same video on 2 displays
Converts a secondary display to your primary display
Crystal-Clear 4K Video and Digital Audio
Supports UHD video resolutions up to 3840 x 2160 (4K) @ 24/25/30 Hz
Supports 36-bit Deep Color (12 bits per channel)
Supports 7.1 Audio Surround Sound
Supports per-lane transfer rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)
Built-In Cable with Reversible USB-C Connector
Fumble-free reversible USB-C plug connects in either direction for quick connection every time
Ready for Instant Use
Plug-and-play operation with no software, drivers or external power required
Half the footprint of a credit card for easy carrying in a pocket, purse or laptop bag
Backward compatible with non-4K displays

Features & Specifications

Displayport Specification	1.2
HDCP Specification	1.4
USB Specification	USB 3.1 Gen 1 (up to 5 Gbps)
Driver Required	No

Specifications

Highlights

Supports USB DisplayPort Alternate Mode for transmitting audio/video
Supports UHD video resolutions up to 4K @ 24/25/30 Hz
Compact and easy to carry in a pocket, purse or laptop bag
Reversible USB-C plug connects in either direction
Plug-and-play operation with no software or drivers required

System Requirements

Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
Display device with HDMI input

Overview

UPC Code	37332189325.0
Technology	USB 3.1 (Gen 1); HDMI; USB

Video

Max Supported Video Resolution	HDMI: 3840 X 2160 (4K) @ 24/25/30HZ

Input

Bus Powered	Yes
Product Length (in.)	6
Product Length (cm.)	15.24
Product Length (ft.)	0.5
Product Length (m.)	0.15

Battery

Battery Charging (5V/1.5A Port)	No

Power

USB Power Delivery (PD) Charging Support	No

Physical

Color	White
Cable Jacket Rating	VW-1
Material of Construction	PVC, ABS

Environmental

Operating Temperature Range	32 to 113 F (0 to 45 C)
Storage Temperature Range	14 to 158 F (-10 to 70 C)
BTUs	2.1 BTU/Hr
Power Consumption (Watts)	0.6
Operating Humidity Range	10% to 85% RH, Non-Condensing
Storage Humidity Range	5% to 90% RH, Non-Condensing

Communications

Signal Range (ft.)	16

Connections

Ports	1
Side A - Connector 1	USB C (MALE)
Side B - Connector 1	HDMI (FEMALE)

Standards & Compliance

Certifications	Tested to CE; FCC; RoHS; REACH

Warranty

Product Warranty Period (Worldwide)	3-year limited warranty

Documents and Downloads
