Brand: Tripp-Lite
|
SKU:
642834

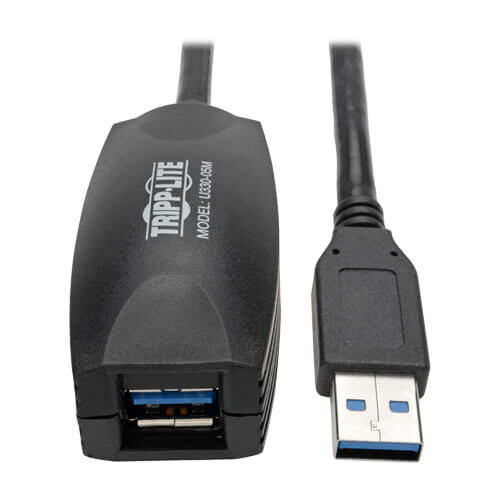

Tripp-Lite U330-05M | USB 3.0 SuperSpeed Active Extension Repeater Cable (A M/F), 5M (16.4 ft.)
Regular price
$54.82
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite U330-05M | USB 3.0 SuperSpeed Active Extension Repeater ...
Regular price
$54.82
Unit price
Description
Description
Tripp Lite's 16.4-ft. (5 m) USB 3.0 active extension cable is a bus powered extension cable that can be used to increase the length of a device cable without the worry of signal loss and potential performance problems. Increase the extension distance to 32.8-ft. (10 m) by connecting two U330-05M together. USB limits a cable's length to 16-ft. (4.88 m). Any length above 16-ft. (4.88 m) requires the use of an active cable such as this one. This cable has a signal booster built in. The cable must be plugged directly into a USB port (either on the PC or a hub). Use a standard 6-ft. (1.83 m), 10-ft. (3.05 m), or 15-ft. (4.57 m) USB 3.0 A-B cable to reach the desired distance. The U330-05M provides up to 770mA of power to the connected device. If your device requires more than 770mA of power, an external power supply will be required for the connected USB device.
Features
- Extend a USB 3.0 signal 16.4-ft. (5 m)
- Increase the extension distance to 32.8-ft. (10 m) by connecting two U330-05M together
- Works together with standard USB 3.0 cables
- Provides up to 770mA of power to the connected device. If your device requires more than 770mA of power, an external power supply will be required for the connected USB device.
- Backward compatible to previous USB generations
Features & Specifications
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
|---|---|
| Driver Required | No |
| UASP Support | Yes |
Specifications
Specifications
System Requirements
- A USB 3.0 Computer port and USB 3.0 device are required to meet USB 3.0 speeds. A USB 2.0 port or device can be used, but you will be limited to the speeds of that port / device.
- The U330-05M provides up to 770mA of power to the connected device. If your device requires more than 770mA of power, an external power supply will be required for the connected USB device.
Highlights
- Extend a USB 3.0 signal 16.4-ft. (5 m.)
- Increase the extension distance to 32.8-ft. (10 m.) by connecting two U330-05M together
- Supports USB 3.0 SuperSpeed data transfer rates up to 5Gbps
Overview
| UPC Code | 37332173492.0 |
|---|---|
| Technology | USB 3.0 (SuperSpeed); USB |
Input
| Bus Powered | Yes |
|---|
Physical
| Color | Black |
|---|---|
| Cable Jacket Rating | VW-1 |
| Cable Length (ft.) | 16.4 |
| Material of Construction | ABS, PVC |
| Shipping Dimensions (hwd / in.) | 0.50 x 7.00 x 9.10 |
| Shipping Weight (lbs.) | 0.60 |
| Unit Packaging Type | Polybag |
| Unit Weight (lbs.) | 0.55 |
Environmental
| Operating Temperature Range | 32 to 158 F (0 to 70 C) |
|---|---|
| Storage Temperature Range | 14 to 176 F (-10 to 80 C) |
| Relative Humidity | 10% to 90 % RH, Non-Condensing |
| BTUs | 0.85 BTU/Hr |
| Power Consumption (Watts) | 0.25 |
Connections
| Side A - Connector 1 | USB 3.0 A (MALE) |
|---|---|
| Side B - Connector 1 | USB 3.0 A (FEMALE) |
Standards & Compliance
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
