Brand: Hoffman
|
SKU:
445744

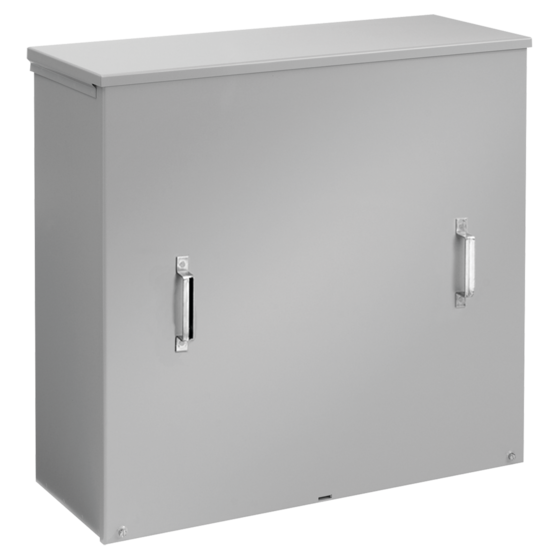

Hoffman A363614CTCJ | Screw Cover with Steel Foot-Mount Panel, 36.00x36.00x14.00, Gray, Steel
Regular price
$899.23
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A363614CTCJ | Screw Cover with Steel Foot-Mount Panel, 36.0...
Regular price
$899.23
Unit price
Description
Description
CT Cabinet, Screw-Cover with Steel Foot-Mount Panel, Type 3R offers the flexibility of mounting instrument current transformer vertically or horizontally, and are available in a variety of sizes, models to fit a wide range of outdoor applications.
Catalog weights and dimensions are careful estimates but not guaranteed.
Main Features
- Cover with handles and captivated screws
- 12-gauge plated mounting panel
- Panel studs allow for either vertical or horizontal panel mounting
- Enclosures are finished with paint over plated surfaces
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 3R; File No. E27525, E27567
- cUL Listed per CSA C22.2 No 94; File No. E27525, E27567
- NEMA Type 3R
- IEC 60529, IP32
- Models with termination lugs also have UL414, File No. E240312
Related Accessories
- Catalog #: APWK53NF
- Catalog #: AS050
Specifications
| Height | 36 in / 914 mm |
|---|---|
| Width | 36 in / 914 mm |
| Depth | 14 in / 356 mm |
| Protection Rating | NEMA Type 3R; IP65 |
| Material | Mild Steel |
| Finish | Galvanized; Powder Coated / Galvanized; Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Thickness | 12 ga / 2.66 mm |
| CT Panel | 35.00 x 7.25 in / 889 x 184 mm |
| Weight | 151 lb |
| BULLETIN NUMBER | A90CT |
