Brand: Hoffman
|
SKU:
654905

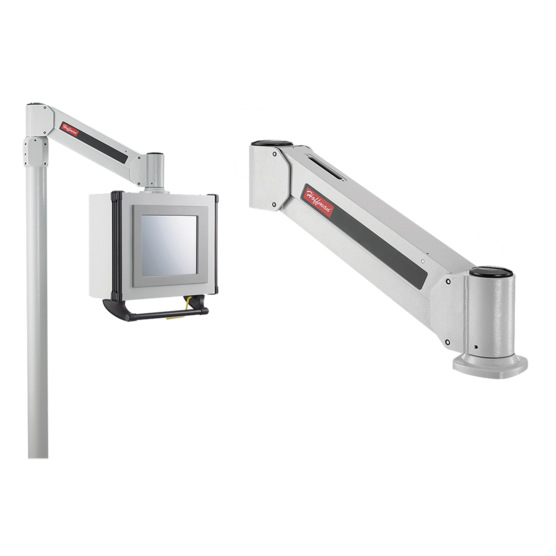

Hoffman VL22 | Syspend VL-Motion Arm Type 4, 6.72x25.5x3.5, Lt. Gray, Aluminum
Regular price
$3,806.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman VL22 | Syspend VL-Motion Arm Type 4, 6.72x25.5x3.5, Lt. Gra...
Regular price
$3,806.57
Unit price
Description
Description
Syspend VL-Motion Arm is a vertical motion pendant arm to effortlessly lift, lower and reposition HMI enclosure. Gas spring counterbalance can be adjusted for loads of 30-100 lb. Release handle and locking mechanism are ideal for applications where machine vibration is a concern. Release handle is included in the arm and is required to operate the arm.
Main Features
- Field-adjustable internal gas spring counterbalance supports loads of 30-100 lbs.
- Gas springs are set to maximum pressure (100 lb. load) and lifting force can be reduced through a sealed access cap in the top of the arm
- Lifting force cannot be increased once spring pressure is reduced
- Provides 13 in. of vertical height adjustment
- Release handle automatically locks arm in place when repositioned vertically
- Easily attach to an HMI enclosure using a 60-x-60-mm enclosure mounting pattern (enclosure must be ordered separately)
- 1.4-in. internal cable pathway maintains NEMA Type 4 and 12 enclosure rating and protects wires and cables
- Gasketed mounting surfaces at both ends of arm maintain seal integrity
- Enclosure and arm can be swiveled 320 degrees
- Mounting adapter is required with options of wall-mount, machine-top-mount and post-top-mount
- Optional floorpost available
Specifications
Specifications
Specifications
| Height | 6.72 in / 170.688 mm |
|---|---|
| Width | 25.5 in / 647.7 mm |
| Depth | 3.5 in / 88.9 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4 |
| Material | Aluminum |
| Wall-Mount Adapter | VLWALL |
| Load Capacity | 14-45 kg / 30-100 lb |
| Post-Top-Mount Adapter | VLPOST |
| Machine-Top-Mount Adapter | VLMACHINE |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| BULLETIN NUMBER | VM4 |
