Liberty AV DL-HD70 | DigitaLinx HDMI HDBaseT Extension Set with Con...
Description
Description

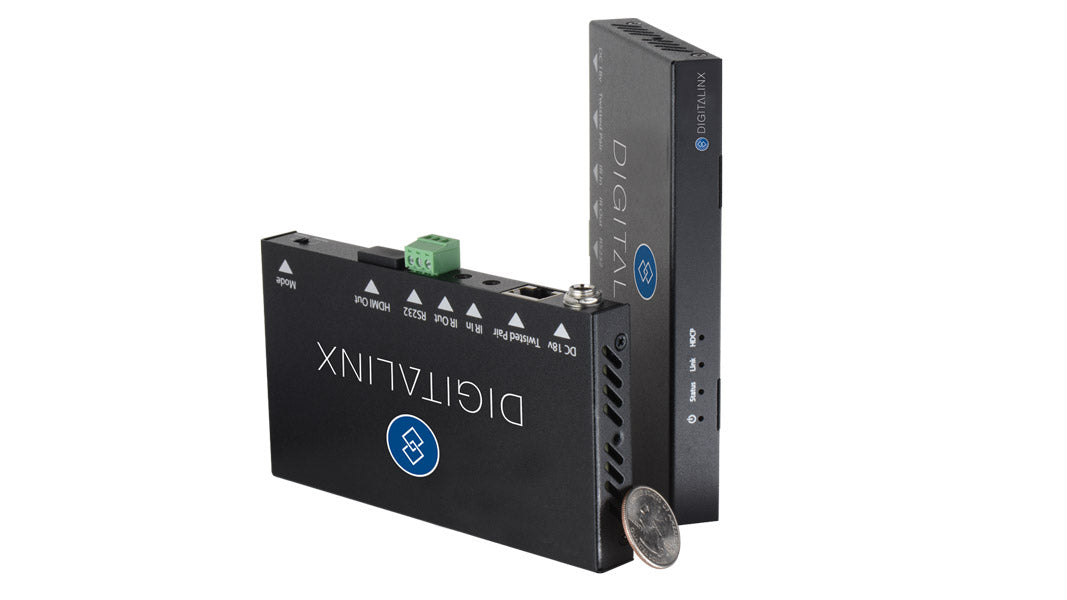

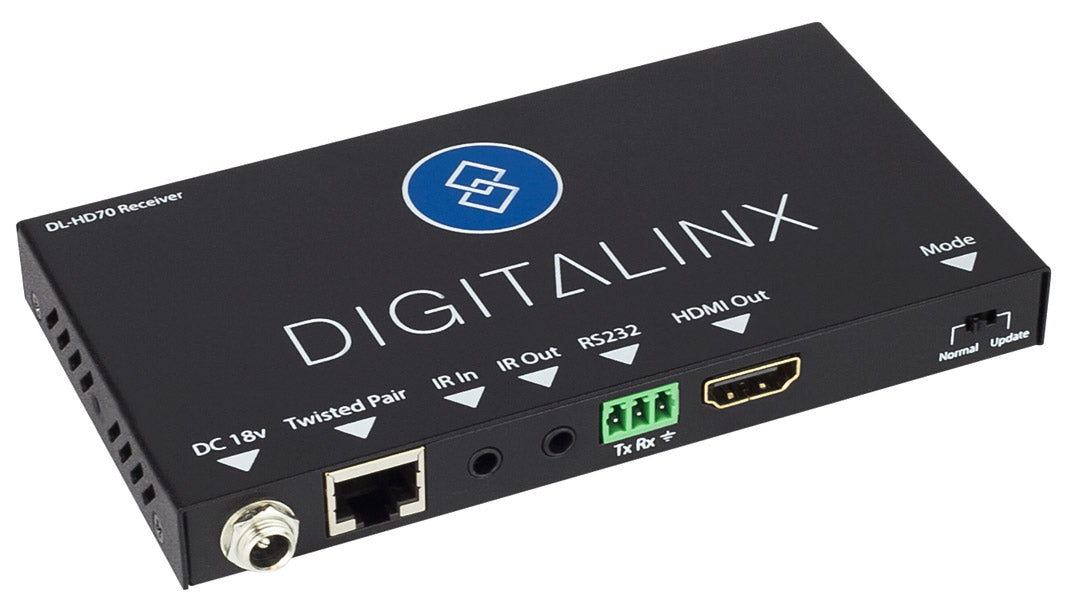

The DigitaLinx DL-HD70 extender set transmits HDMI (1080p, 4Kx2K (UHD) & 3D) including HDCP 2.2, bidirectional IR, and RS232 up to 70 meters away using a single twisted pair cable.Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations.
Flexible power design allows the units to be powered at either the TX or RX end, and only one power supply is required.
The 12 volt power supply is secured with a screw-on connector to prevent the power from being accidentally disc onnected.The DL-HD70 is sold only as a set.
All accessories are included including two IR emitters, two IR receivers, and two pairs of mounting brackets with screws.
The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry.
Liberty AV - DL-HD70 - Features
- Complete set includes TX, RX, mounting tabs, IR flasher/sensor, & power supply
- Extend HDMI signals up to 4K, control, & power up to 70m
- Extend bi-directional RS232, IR, & flexible PoC (Power on either end)
- CEC supported
- HDCP 2.2 Compliant
- Bidirectional Wideband IR and RS232 pass through
- Flexible power design (use power supply at TX or RX)
- Locking power connector
Specifications
Specifications
Liberty AV - DL-HD70 - Applications
- Uses any Cat6 or greater twisted pair cabling
- Extension of HDMI and control signals
- Limited access to power for extenders on both ends
- Ideal for Digital Signage, Home Theater, Commercial Video
Liberty AV - DL-HD70 - Specifications
| UNSPSC Code | 45110000 |
|---|
