Vigitron VI30208 | Managed Hardened 4+2+2-Port, L2+, 90W Poe, 1G In...
Description
Description

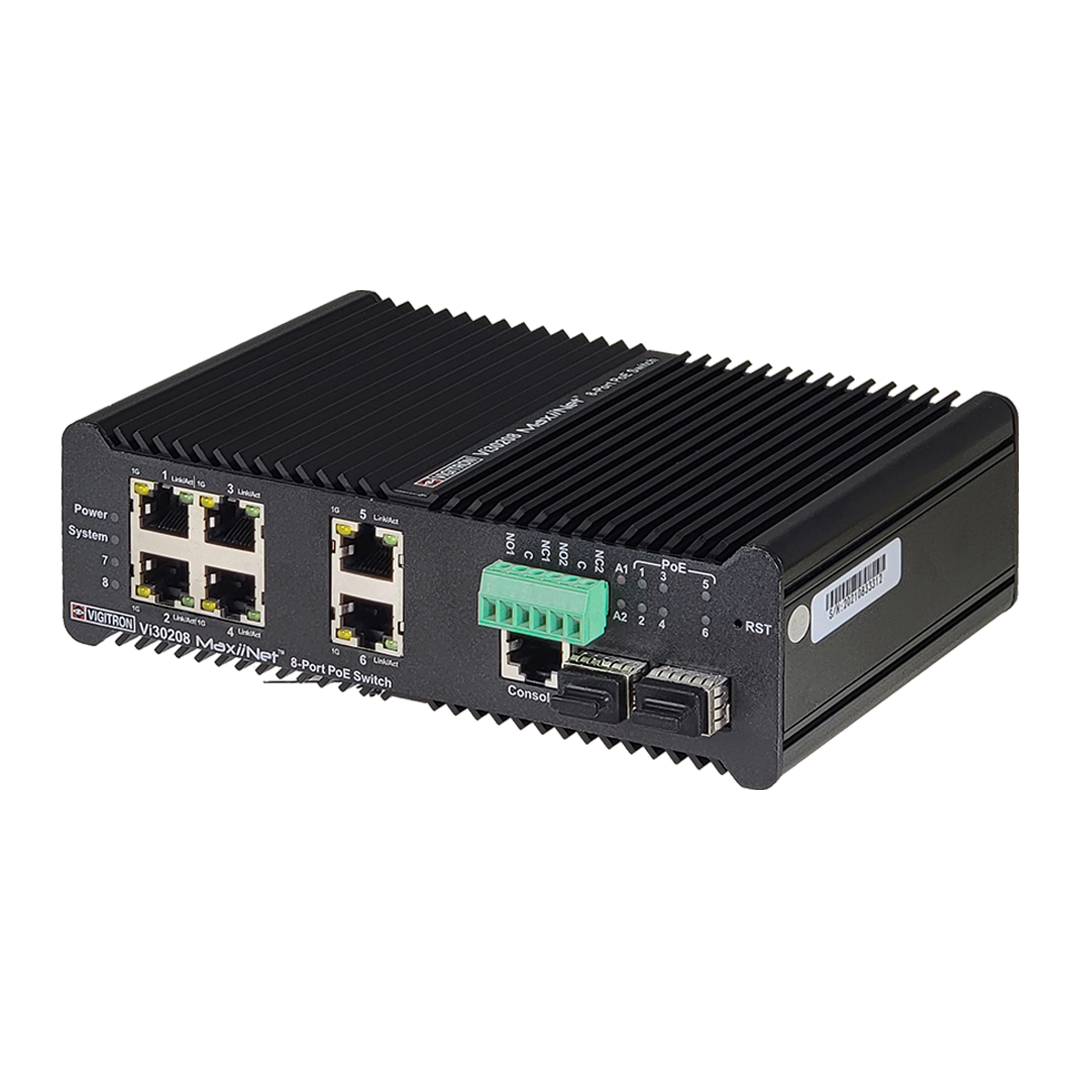

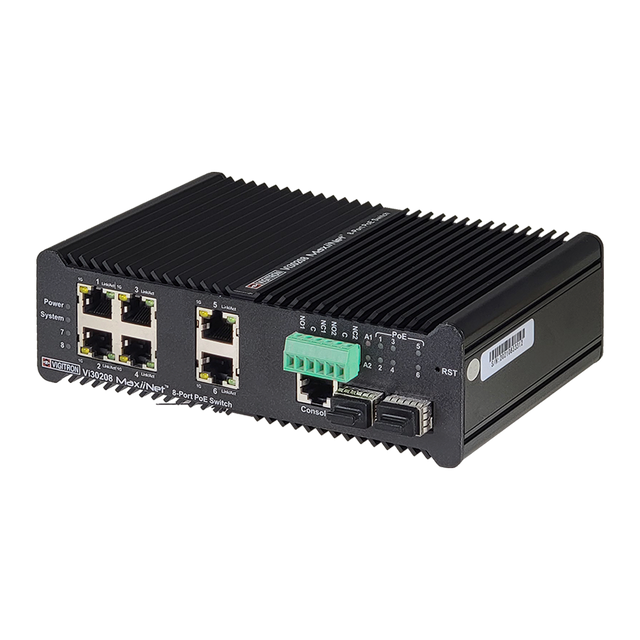

Vigitron's Vi30208 is a hardened Industrial PoE Switch with a data rate up to 2.5G* for handling fiber optics uplink ports. Program data for each fiber and copper port and Power over Ethernet for copper ports. This will provide flexibility in meeting application requirements for 6 independent PoE ports.
PoE Network Switch operates in temperatures ranging from -40ºC to +70ºC. This network device is able to monitor and report individual port temperatures.
The Vi30208 accepts DC power up to 495W. Provides IEEE 802.3bt compliant 90W PoE power on all 6 copper ports. Maximum total PoE power budget of 480W.
This enables it to power the most demanding PoE applications for PTZ domes, LED lighting, and wireless products.
Vigitron - VI30208 - Features
- 4 + 2 ports with 10/100/1000/2500Mbps data rate
- Jumbo frame programming at all bandwidth settings
- 90W 802.3bt Power over Ethernet compliant ports w/ 495W total input power
- Operating temperature range -40ºC to +70ºC per NEMA-TS 2 standards
- Tested for critical transportation and traffic applications
- G.8032 V1/V2 Rapid Ring protocol compliant
- Dual fiber/copper Uplink ports
- Built-in 6kV surge protection on each port
- 20Gb switch fabric for highest MP camera handling
- NTP and Real-Time Clock (RTC)
- Dual power input for backup power supply
- Dual programmable Form C alarm outputs
- Din Rail and Desktop mounting
- Programmable Port Temperature monitoring
- Detailed Syslog with Health status messaging
Specifications
Specifications
Vigitron - VI30208 - Specifications
| Brand Name | Vigitron |
|---|---|
| Manufacturer Part Number | VI30208 |
| Item Description | Managed Hardened 4+2+2-Port, L2+, 90W Poe, 1G Industrial Ring Switch |
| Ethernet Interface | Standard: 10/100/1000BaseT Uplink: 100/1000/2500*BaseT- SFP |
| Data Ports | 6 Copper ports, 2 MSA Fiber Combo ports |
| Packet Size | 9600@ 100Mbps/1000Mbps/2500Mbps |
| Bandwidth Sensing | MDI/MDIX |
| Switch Fabric | 20GB |
| Surge Protection | 6KV |
| Power Source | 48-57VDC |
| Input Power | 495W Maximum |
| PoE Output | 802.3af/at/bt complaint, 90W Max.per port |
| PoE Budget | 480W |
| Power | 12.3W |
| Status LEDs | Power : Red LED System : Red LED Link/Activity: Green LED Data rate : Orange LED (ON for 1G) PoE : Green Active Fiber Link : Green LED Alarm: Red Flashing |
| Connectors | Standard Ethernet : 6 x RJ-45 Connectors Console : 1 x RJ45 Fiber Optics : 2 x MSA compliant SFP Connector Power : Detachable terminal blocks Alarm Output : 6-pin Terminal block |
| RFC | 2544 TCP/IP Packet Transmission 768 UDP, 2068 HTTP, 793 TCP 791 IP, 1783 TFTP, 894 IP over Ethernet |
| PoE Compatibility | IEEE 802.3af/at/bt |
| FCC | Part 15, Subpart B, Class B 2010 |
| Emmissions | EN 5502:2006+A1:2007 EN 61000-3 EN55032 EN55035 EN50121 EN50155 2:2006+A1:2009+A2:2009 |
| Safety | CE EN 62368 (Replacing EN60950-1) |
| Environmental | RoHS IEC60068-2-32 (Free Fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) WEEE, Article 11 – Anex V Directive 2012 2012/19/EU |
| Temperature | Operating: -40°C to +70°C (at 240W PoE Output) -40°C to +55°C (at 480W PoE Output) Storage: -40°C to +85°C |
| Humidity | 0 to 95%, non-condensing |
| Dimensions | 2x6.6x4.4 in., 5x16.8x11 cm (HxWxL) |
| Weight | 1.9 lb, 862 g |
| Mounting | Desktop, DIN Rail |
| Material | Aluminum |
