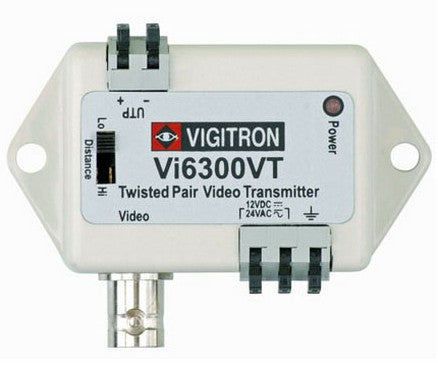

Vigitron VI6300VT Active UTP Video Transmitter

The Vigitron Vi6300VT is an advanced active device that transmits high resolution color or black and white video over unshielded twisted pair wires. The Vi6300VT uses category 2-7 UTP wire at distances up to 6,000 feet (1,830 m) and is designed to be paired with any Vigitron Vi6300 series active receivers. The Vi6300VT is a compact unit. The power requirement is 12-24 Volts AC or DC, auto-ranging and reverse polarity protected. This flexibility allows to power the transmitter from the same power supply as the camera, or it can used with the provided power supply. The screw-less wire terminals and a single distance adjustment make the Vi6300VT easy to install. It also has built-in surge suppression to protect video equipment against damaging voltage spikes. Its integrated ground loop isolation prevents disturbing "hum-bars" common with long distance installations and its excellent crosstalk and noise immunity provides quality video up to the maximum distance. The Vi6300VT innovative design offers exceptional quality video and system flexibility that makes it ideal for a wide variety of applications that require multiple video channels and makes a cost effective alternative to expensive fiber optic solutions.

Features

Quality video over 6,000 feet (1,830 m) of Unshielded Twisted Pair wires

NTSC, PAL and SECAM video format compatible

Female BNC and terminal blocks or RJ-45 connectors

70 dB cross talk and noise immunity

Built-in surge protection

A single distance adjustment for video

Screw-less connectors

Compact size and easy installation

Specs

Manufacturer Vigitron, Inc.

Condition New

Video Format NTSC, PAL, SECAM

Frequency 20 Hz to 6 MHz

Coax 75 Ohm

Twisted Pair 100 Ohms +/- 20%, 24 AWG minimum up to 6,000 ft. (1,830 m) unshielded Category 2-7

CMRR 70 dB

Power 12V-24 VDC/AC, 150 mA maximum (12 VDC power supply included)

Power Indicator Red LED

UTP video output: Screw-less terminal blocks

Video intput Female BNC connector

Power Screw-less terminal blocks

Humidity 0 to 95%, non-condensing

Operating -10°C to +50°C

Storage -30°C to +70°C

Dimensions 1.6x2.9x1 in., 4.1x7.4x2.5 cm (HxWxL)

Material ABS plastic, UL rating of 94V-0
