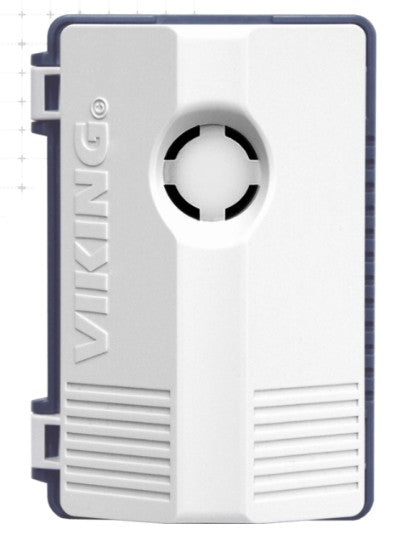

Viking Electronics LVR-1 | Line Verification Relay, 500 mA, 120 VAC, 12 VDC, Wall-mount Mount, FCC
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Viking Electronics LVR-1 | Line Verification Relay, 500 mA, 120 VAC...
Description
Description
The LVR-1 Line Verification Relay is useful on analog phone lines and extensions that do not have a method of monitoring the status of the idle phone lines. Phone lines can go out of service at any time and without any warning. You could be paying monthly fees for phone lines that are not in service and not realize it. The LVR-1 can be a real money saver. The LVR-1 Line Verification Relay monitors the voltage on an analog phone line. When that voltage goes below 2 V for a programmable time, an on-board relay is activated. When the voltage of the phone line goes above 2 V for the same programmable time, the relay is deactivated. Selectable times are 5, 10, 15 and 20 s. By using a timer, the LVR-1 makes sure that the line is dead before actuating the relay. The LVR-1 is powered by an included 12 VDC power adapter and has either a RJ-11 jack or a terminal block for connection to the phone line.
Viking Electronics - LVR-1 - Features
- On-board 2 pole relay with both NO and NC contacts available
- Phone line connection thru an RJ-11 or terminal block
- Power connection thru a 2.1 mm plug or terminal block
- Power supply included
- DIP switch selectable delay times of 5, 10, 15, and 20 seconds
- Wall mount housing with (2) #6×3/4 panhead screws included
Specifications
Specifications
Viking Electronics - LVR-1 - Product Categories
- Power Products
- Industrial Controls
- Relays and Accessories
- Relays
Viking Electronics - LVR-1 - Specifications
| Manufacturer Name | Viking Electronics |
|---|---|
| Manufacturer Part Number | LVR-1 |
| Item Description | Line Verification Relay, 500 mA, 120 VAC, 12 VDC, Wall-mount Mount, FCC |
| Amperage | 500 mA |
| Connection Type | (8) Cage Clamp Screw Terminals, (1) Modular RJ11 Jack |
| Contact Rating | 30 VDC at 1A, 110 VDC at 0.3 A, 125 VAC at 0.5 A |
| Dimensions | LxWxH: 1.38 x 2.97 x 4.38 in. |
| For Use With | Emergency Phones, Alarm Systems, Entry Systems and Area of Refuge Phones |
| Height | 4.38 in. |
| Humidity Range | 5 to 95% Non-Condensing |
| Includes | Power Supply and Wall-Mount Housing with (2) Panhead Screws |
| Length | 1.38 in. |
| Mounting Type | Wall |
| Mounting | Wall-mount |
| Number of Poles | 2 Pole |
| Product Type | Line Verification Relay |
| Special Feature | (8) Cage Clamp Screw Terminals, (1) Modular RJ11 Jack Connection, For Use With Emergency Phones, Alarm Systems, Entry Systems and Area of Refuge Phones |
| Special Rating | FCC |
| Temperature Rating | 32 to 90 F |
| Voltage | 120 VAC, 12 VDC |
| Width | 2.97 in. |
