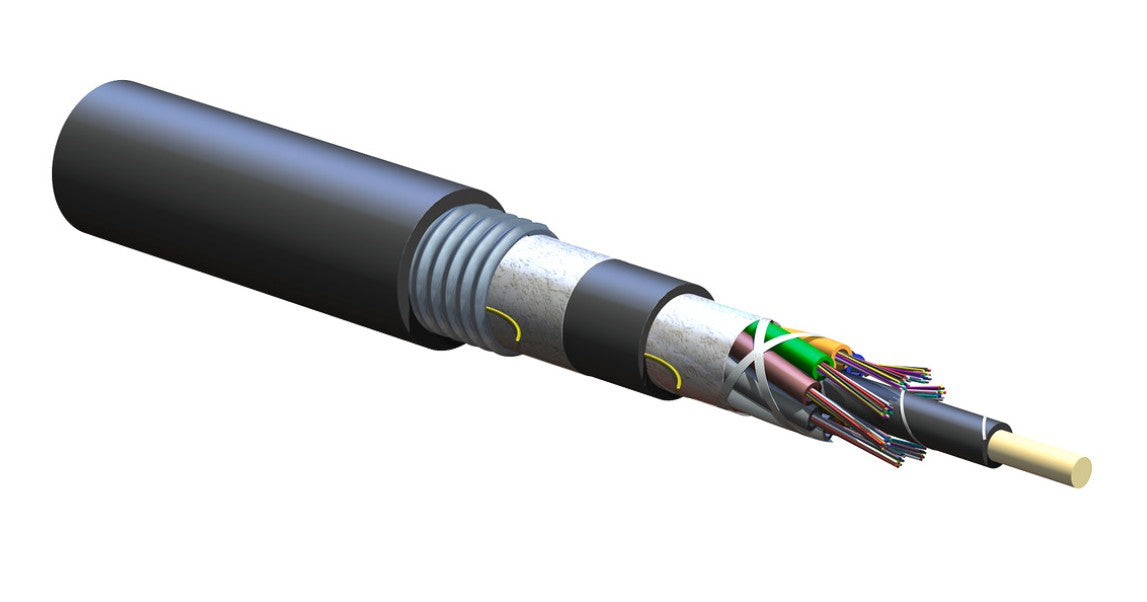

Corning 096EUV-T4101D2N | Industrial LSZH Tray-Rated, Loose Tube, Gel-Free, Corrugated Armored Cable 96 F, Single-mode (OS2)
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 096EUV-T4101D2N | Industrial LSZH Tray-Rated, Loose Tube, G...
Description
Description
Corning Industrial LSZH™ fiber optic cables are designed for industrial building backbones and harsh environments atypical of traditional datacom systems. Based on proven stranded loose tube cable designs, these industrial cables are flame-retardant and have been tested to meet mechanical/environmental conditions exceeding the requirements set for traditional datacom cables. The 250 ?m color-coded individual fibers offer quick and easy identification during installation. Corning Industrial LSZH™ cables provide life-safety benefits for industrial applications through the cables' construction. Many traditional data communication cables contain halogens in the jacket compound, which pose little risk in the controlled and protected environment of typical building air spaces, such as behind walls, under floors and in conduit. However, cables deployed in industrial applications, particularly on the plant floor, are typically exposed to greater risk of fire, extreme temperatures or chemical exposure.
Corning - 096EUV-T4101D2N - Features
- Low-smoke, zero-halogen sheath- Key life-safety benefit
- Meets cyclic impact and chemical resistance test- Superior performance
- Corrugated armor- Mechanical protection
- Common installations- Outdoor aerial and duct
Specifications
Specifications
Corning - 096EUV-T4101D2N - Specifications
| EAN Code | 4056418168609 |
|---|---|
| Cable Type | Loose Tube |
| Environment | Indoor/Outdoor |
| Product Type | Corrugated Steel Armor |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | LSZH (OFCR-LS) |
| Application | Aerial, Direct Buried, Duct, Tray-Rated |
| Cable geometry | Round |
| Temperature Range, Installation | -30 °C to 60 °C (-22 °F to 140 °F ) |
| Central Element | Dielectric |
| Fiber Count | 96 |
| Number of Ripcords | 3 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material |
| Tensile Strength Elements and/or Armoring - Layer 1 | Corrugated steel tape armor |
| Buffer Tube Color | Blue, Orange, Green, Brown, Slate, White, Red, Black |
| Buffer Tube Diameter | 2.5 mm (0.1 in) |
| Inner Jacket Material | Flame-retardant |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Cable Weight | 286 kg/km (192.18 lb/1000 ft) |
