Brand: Corning
|
SKU:
373-COROS2-RIBUZ-360
Corning 360ZVZ-14101D20 | LSZH UltraRibbon Gel-Free Cables
Regular price
$18.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 360ZVZ-14101D20 | LSZH UltraRibbon Gel-Free Cables
Regular price
$18.59
Unit price
Brand: Corning
|
SKU:
373-COROS2-RIBUZ-360
Regular price
$18.59
Unit price
Shipping calculated at checkout.
Description
Description

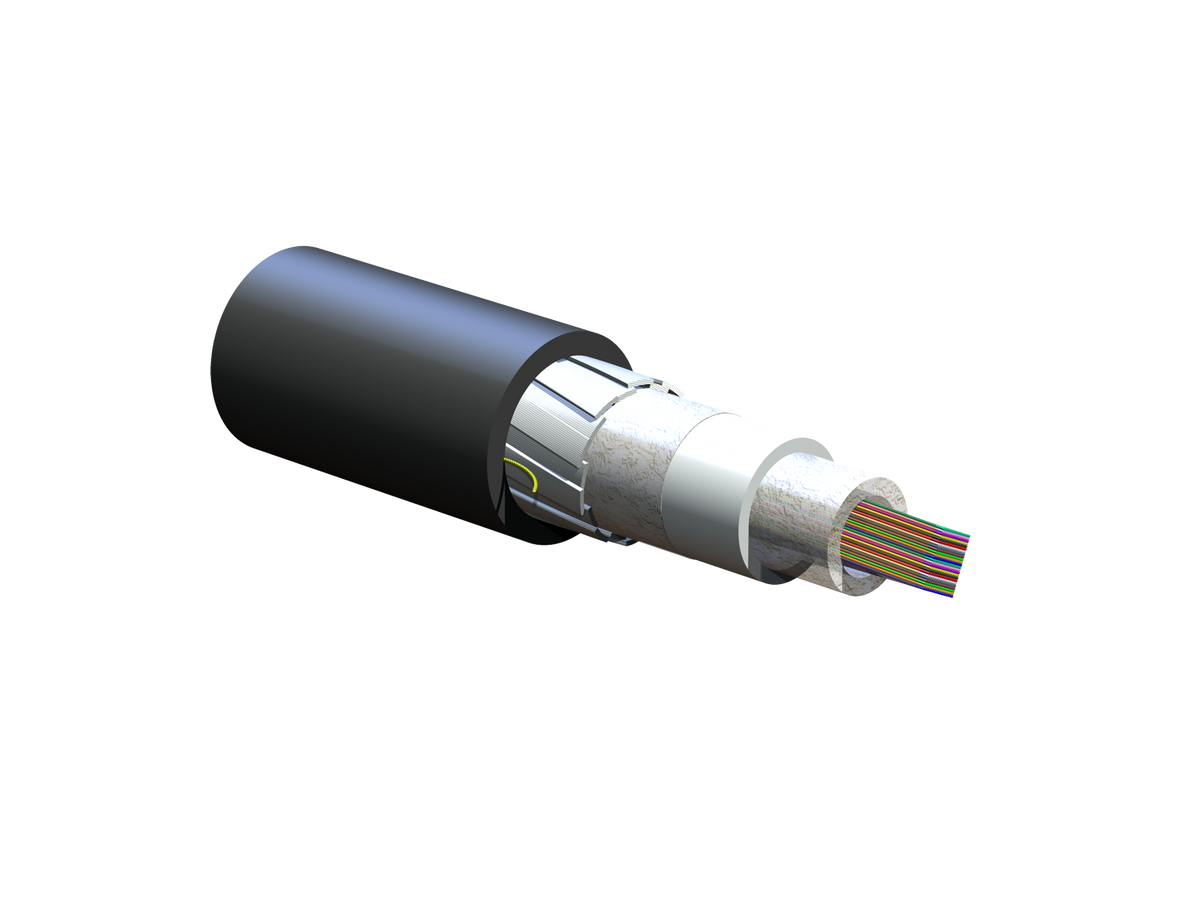

Corning 360ZVZ-14101D20 | LSZH UltraRibbon Gel-Free Cables 360 F, SMF-28 Ultra fiber, Single-mode (OS2)
Corning - 360ZVZ-14101D20 - Features
- 288 up to 432 fibers in a compact gel-free design
- Maximizes use of critical duct space
- Hand-splittable ribbon
- Facilitates mass-fusion splicing with 12-fiber units and no stray fibers
- 12-fiber ribbons individually numbered
- Easy identification
- Fiber and ribbon geometries
- Provide excellent mass fusion splicing results
- Flame-retardant, UV-resistant jacket
- Rugged and durable, indoor/outdoor use
- Common installations
- Outdoor aerial and duct
Specifications
Specifications
Corning - 360ZVZ-14101D20 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Indoor | Outdoor Fiber Optic Cable
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Aerial Cables
Corning - 360ZVZ-14101D20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 360ZVZ-14101D20 |
| Environment | Indoor/Outdoor |
| Cable Type | Ribbon |
| Product Type | Interlocking Armor |
| Fiber Category | SMF-28 Ultra fiber |
| Flame Rating | LSZH (OFN-LS) |
| Application | Aerial, Direct Buried, General Purpose Horizontal, Duct |
| Fiber Count | 360 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFN-LS |
| Design and Test Criteria | ANSI/ICEA S-104-696, Telcordia GR-409, UL-1666, CSA FT-4 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10 °C to -10 °C (14 °F to 14 °F ) |
| Temperature Range, Operation | -40 °C to -40 °C (-40 °F to -40 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |

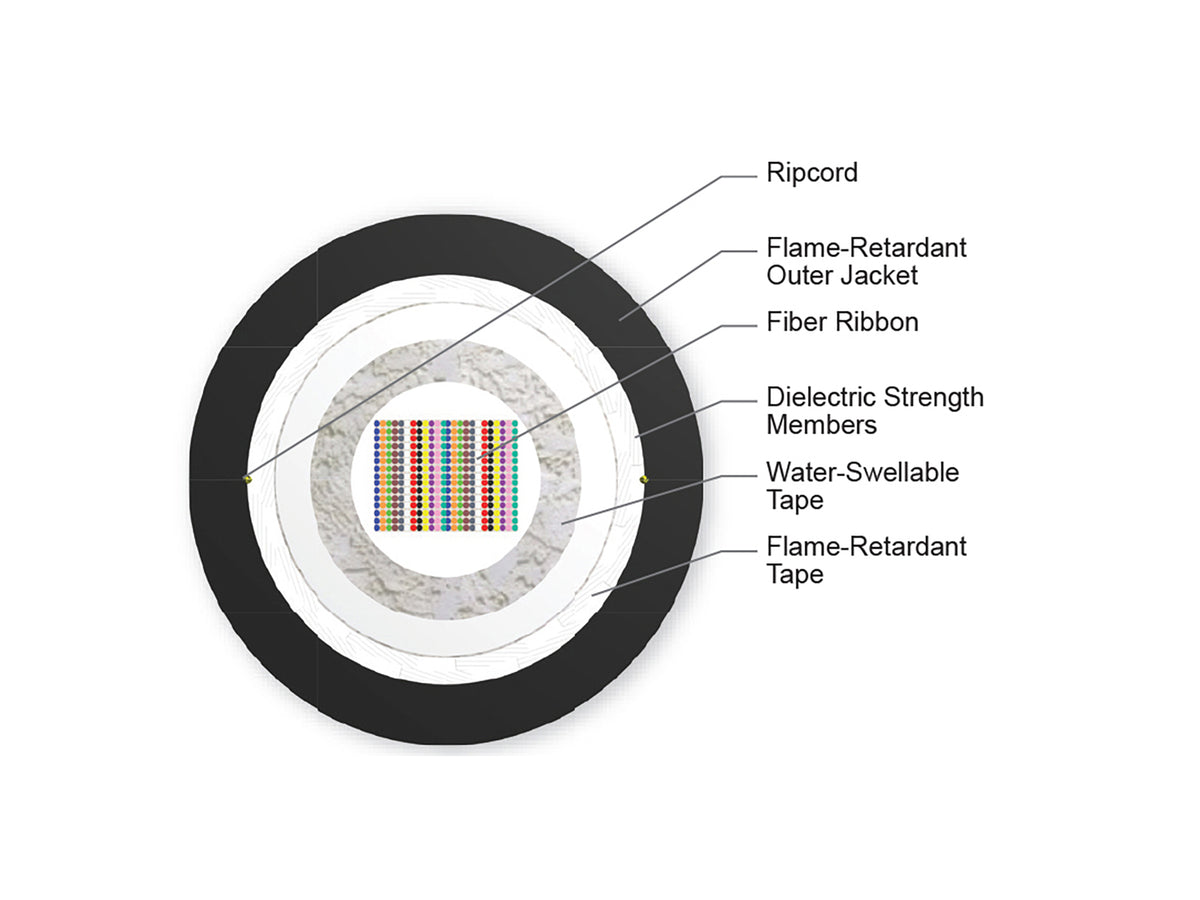

| Cable Design | - |
| Buffer Tube Color | Natural |
| Fiber Count | 360 |
| Buffer Tube Diameter | 146 mm (5.75 in) |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tape | Water-swellable |
| Tape, Layer 1 | Flame-retardant tape |
| Tape, Layer 2 | Flame-retardant tape |
| Tape, Layer 3 | Water-swellable |
| Ribbons per Tube | 15 |
| Fibers per Ribbon | 24 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 810 N (182.1 lbf) |
| Max. Tensile Strength, Short-Term | 810 N (182.1 lbf) |
| Min. Bend Radius Installation | 3285 mm (129.33 in) |
| Min. Bend Radius Operation | 219 mm (8.62 in) |
| Nominal Outer Diameter | 21.9 mm (0.86 in ) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | ITU-T G.657.A1 |
| Ordering Information | - |
| Weight | 368 kg/km (247.28 lb/1000 ft) |
| All-Dielectric | YES |
| Armored | NO |
| Cable Type | RIBBON |
| Fiber Type | OS2 SINGLE-MODE |
| Fire Rating | RISER |
| Rodent Protected | NO |
| UNSPSC Code | 26121607 |
