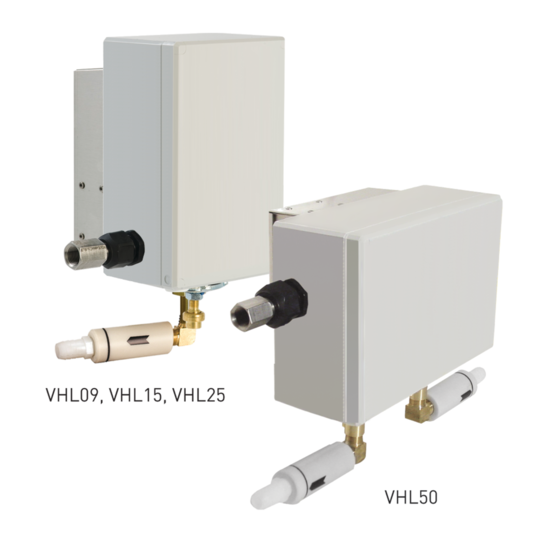

Hoffman VHL15160 | Vortex A/C Enclosure Cooler, Hazardous Location, 1500 BTU/Hr, Gray Polycarbonate
Regular price
$3,710.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman VHL15160 | Vortex A/C Enclosure Cooler, Hazardous Location,...
Regular price
$3,710.27
Unit price
Description
Description
Hazardous Location Vortex A/C Enclosure Coolers keep enclosures cool, clean and protected even in hazardous environments. These systems are ideal for applications where compressed air is available in Hazardous Locations. With almost no moving parts, these systems are highly reliable and virtually maintenance free.
Main Features
- Approved for a 175 F (80 C) maximum ambient temperature in Class I, Div. 2; Class II, Div. 2; and Class III areas
- Mechanical thermostat reduces energy consumption
- Top, side, and front mount allows for versatile installation in confined areas
- Quieter operation with noise level of 60-75 dB
- Supplied with five-micron, automatic drain compressed air filter, cold ducting kit, cold air muffler, and check valve
- Cooling capacities up to 5000 BTU/Hr. (1465 W)
Specifications
Specifications
Industry Standards
- UL Classified for Class 1, Div. 2, Groups A through D; Class II, Div. 2, Groups F & G; and Class III locations (when used with an approved purge/pressurization system); File No. E364567.
- Maintains UL/cUL Type 4, 4X when properly installed on a UL/cUL Type 4, 4X enclosure.
- Hazardous Location Models:
Related Accessories
- Catalog #: VAAF15
- Catalog #: VCOF17
- Catalog #: VAGK15
- Catalog #: VHLDK
Specifications
| Height | 8 in / 203.2 mm |
|---|---|
| Width | 4.75 in / 120.65 mm |
| Depth | 5.38 in / 136.652 mm |
| Nominal Capacity Btu/h | 1500 Btu/h |
| Nominal Capacity Watts | 440 W |
| Material | Polycarbonate |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Smooth Matte |
| Weight | 7.9 lb |
| BULLETIN NUMBER | MCLH |
