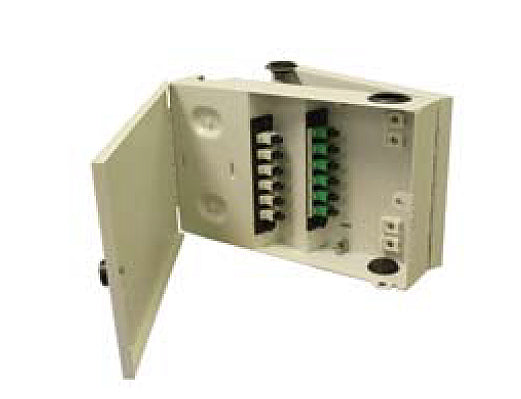

Commscope FDT-AJ012NXV7000 | iFDT Indoor Fiber Distribution Terminal, 12-fiber, SC/APC, loose tube IFC cable, 7000 feet
Regular price
$1,700.18
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope FDT-AJ012NXV7000 | iFDT Indoor Fiber Distribution Termina...
Regular price
$1,700.18
Unit price
Description
Description
Commscope FDT-AJ012NXV7000 | iFDT Indoor Fiber Distribution Terminal, 12-fiber, SC/APC, loose tube IFC cable, 7000 feet
Features and Benefits
- Compact and secure family of enclosures by connecting fiber cables at MDUs
- Integrated splice trays offer flexible splice management for individual or mass splicing
- Dual-hinged design ensures separation of owner/client network segments
- Robust steel construction protects fibers against damage and ensures network reliability
- Slotted cable entrance ports allow for rapid cable installation and pass-through capability
Specifications
Specifications
Product Classification
| Regional Availability | North America |
|---|---|
| Product Type | Fiber distribution terminal |
| Product Series | IFDT |
General Specifications
| Adapters, quantity | 12 |
|---|---|
| Cable Entry Location | Bottom right / Top right |
| Cable Type | IFC - Stranded |
| Color | Putty white |
| Front Door Type | Double hinged |
| Growth Configuration | Fully loaded |
| Interface, Input | SC |
| Interface Feature, Input | APC |
| Interface, stub | No connector |
| Lock Type | Padlock ready |
| Mounting | Wall |
| Port, quantity | 12 |
Dimensions
| Height | 184.15 mm / 7.25 in |
|---|---|
| Width | 299.72 mm / 11.8 in |
| Depth | 82.55 mm / 3.25 in |
| Cable Length | 2133.6 m / 7000 ft |
Material Specifications
| Finish | Powder coated |
|---|---|
| Material Type | Steel |
Optical Specifications
| Fiber Mode | Singlemode |
|---|
Environmental Specifications
| Environmental Space | Indoor |
|---|---|
| Qualification Standards | NEMA, Type 12 / Telcordia GR-2898-CORE |
Packaging and Weights
| Packaging quantity | 1 |
|---|
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
