Brand: CommScope
|
SKU:
502656

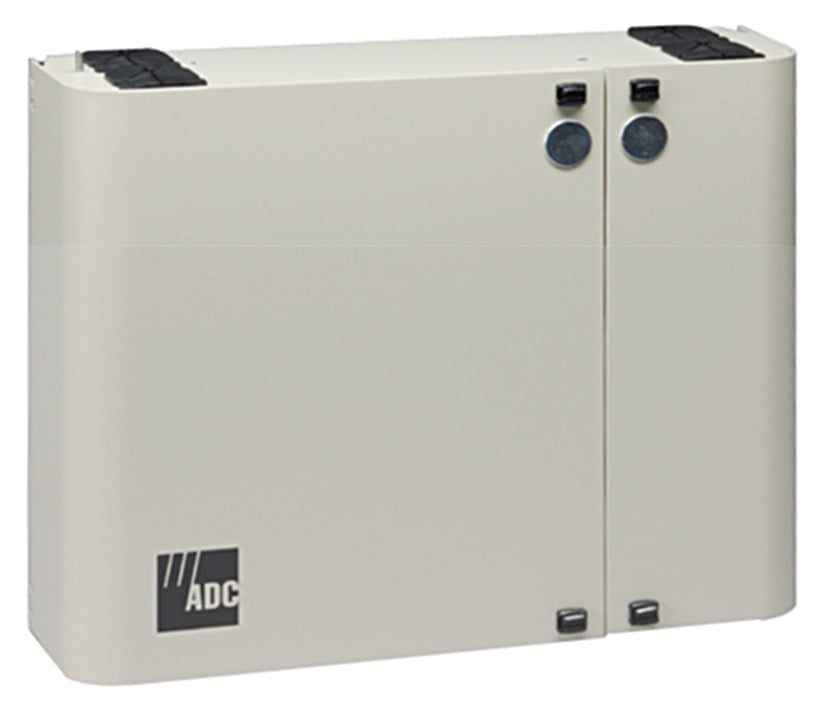

Commscope FL1-G377NNN2-1011N | FL1000 Fiber Wall Box, 2-door, singlemode SC/UPC, 12-ports, with pigtails and splice tray, 1 cable clamp, 1 compression fitting, 1 strength member tie-off
Regular price
$986.61
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope FL1-G377NNN2-1011N | FL1000 Fiber Wall Box, 2-door, singl...
Regular price
$986.61
Unit price
Description
Description
Commscope FL1-G377NNN2-1011N | FL1000 Fiber Wall Box, 2-door, singlemode SC/UPC, 12-ports, with pigtails and splice tray, 1 cable clamp, 1 compression fitting, 1 strength member tie-off
Features and Benefits
- Ideal for small to medium fiber counts within communication rooms or closets at customer sites
- Provides demarcation access for the telecom carrier and the end-user by way of separate compartments
- Guarantees mechanical protection and fiber management for indoor and outdoor cable
- Fully customizable for patch-patch, splice-patch or for the storage of un-terminated (dark) fibers
Specifications
Specifications
Product Classification
| Regional Availability | North America |
|---|---|
| Product Type | Fiber wall box |
| Product Series | FL1000 |
General Specifications
| Application | Patching / Splicing |
|---|---|
| Adapter Packs Included, quantity | 2 |
| Adapters, quantity | 12 |
| Cable Clamps, quantity | 1 |
| Cable Entry Location | Bottom left / Bottom right / Top left / Top right |
| Cable Stub Type | Pigtails, stranded |
| Color | Putty white |
| Door, quantity | 2 |
| Front Door Type | Single hinged |
| Growth Configuration | Fully loaded |
| Interface, front | SC |
| Interface Feature, front | Standard |
| Mounting | Wall |
| Splicing Type | Heat shrink, mass fusion |
| Total Fibers, quantity | 12 |
| Total Ports, quantity | 12 |
Dimensions
| Height | 433 mm / 17.047 in |
|---|---|
| Width | 511 mm / 20.118 in |
| Depth | 156.97 mm / 6.18 in |
Material Specifications
| Finish | Powder coated |
|---|---|
| Material Type | Steel |
Optical Specifications
| Fiber Mode | Singlemode |
|---|
Environmental Specifications
| Environmental Space | Indoor |
|---|---|
| Qualification Standards | NEMA type 12 |
Packaging and Weights
| Included | One grounding kit / One tie-off adapter |
|---|---|
| Packaging quantity | 1 |
| Packaging Type | Bag / Carton |
Regulatory Compliance/Certifications
| ROHS | Compliant/Exempted |
|---|---|
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
