Atlas Sound 607-15 | 19 inch Wide Opening Stand Alone Basic Wall Ca...
Description
Description

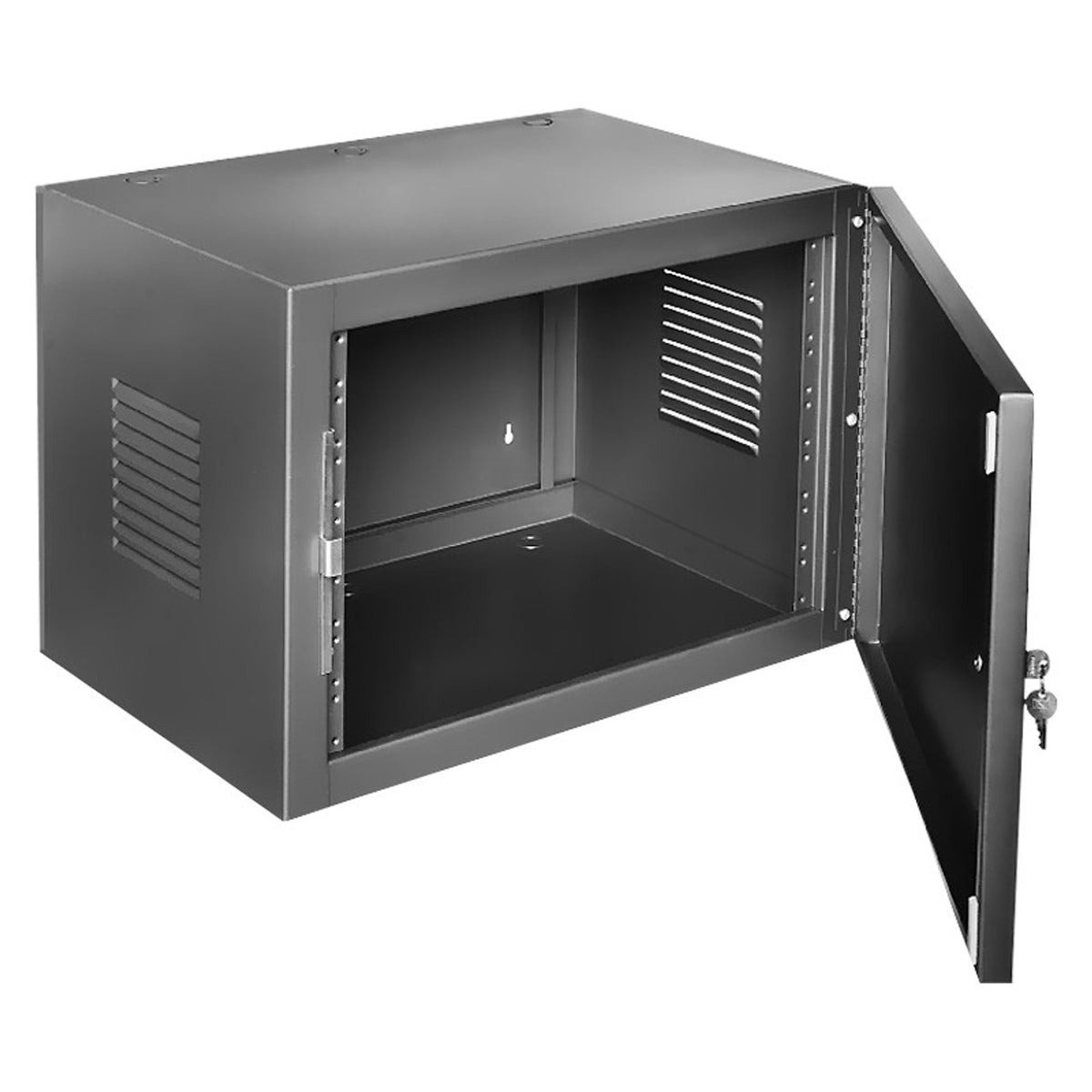

Atlas Sound Model 607-15 is a surface mounting wall cabinet used for housing small electronic system installations including 19" wide amplifiers, tuners and associated communication controls for schools, churches, clubs and recreation facilities.
The 607-15 has a vertical panel opening of 12-¼" (311mm) and is constructed of 16 gauge CRS.
Louvers on each side of the cabinet are provided for ventilation. The fixed 11 gauge CRS panel mounting rails are recessed ?" (16mm) for a "flush" look. Locking front door is standard. Panel-mounting screws (10-32 x 3/4") are provided for equipment panel and accessory mounting. Mounting rails are tapped 10-32 on EIA spacing.
Three double 1/2" (13mm) and 3/4" (19mm) knockouts are provided on the top and bottom of the cabinet for wire entry. Four keyhole slots for wall hanging are provided on the back panel.
The 607-15 is shipped completely assembled and is finished in (#962) black epoxy powder coat.
Atlas Sound - 607-15 - Features
- 10-32 Pan Head Screws for Panel Mounting
- 16-Gauge CRS All Welded Construction with 11-Gauge CRS Fixed Tapped Mounting Rails
- Completely Assembled
- Convenient Pre-Punched Back Panel for Wall Mounting
- Locking Front Door
- Vents on Each Side
- Locking Front Door
- Vents on Each Side
- 10 to 32 Pan Head Screws for Panel Mounting
- Completely Assembled
- Convenient Pre-Punched Back Panel for Wall Mounting
- Made in USA
Specifications
Specifications
Atlas Sound - 607-15 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Audio Equipment Accessories
- Racks and Cabinets
- Wall Racks
- 600 Series
Atlas Sound - 607-15 - Specifications
| Rack Units | 7 |
|---|---|
| Height | 15 1/2" (39.37 cm) |
| Width | 22 5/16" (56.68 cm) |
| Depth | 15 3/8" (39.05 cm) |
| Usable Depth | 14" (35.56 cm) |
| Shipping Weight | 45.00 lbs (20.41 kgs) |
| UNSPSC Code | 52161600 |
