Klein Tools 1647724 | Wide Range Distribution Grip, EHS Wire
Regular price
$366.18
Unit price
Brand: Klein Tools
|
SKU:
1647724
Regular price
$366.18
Unit price
Description
Description

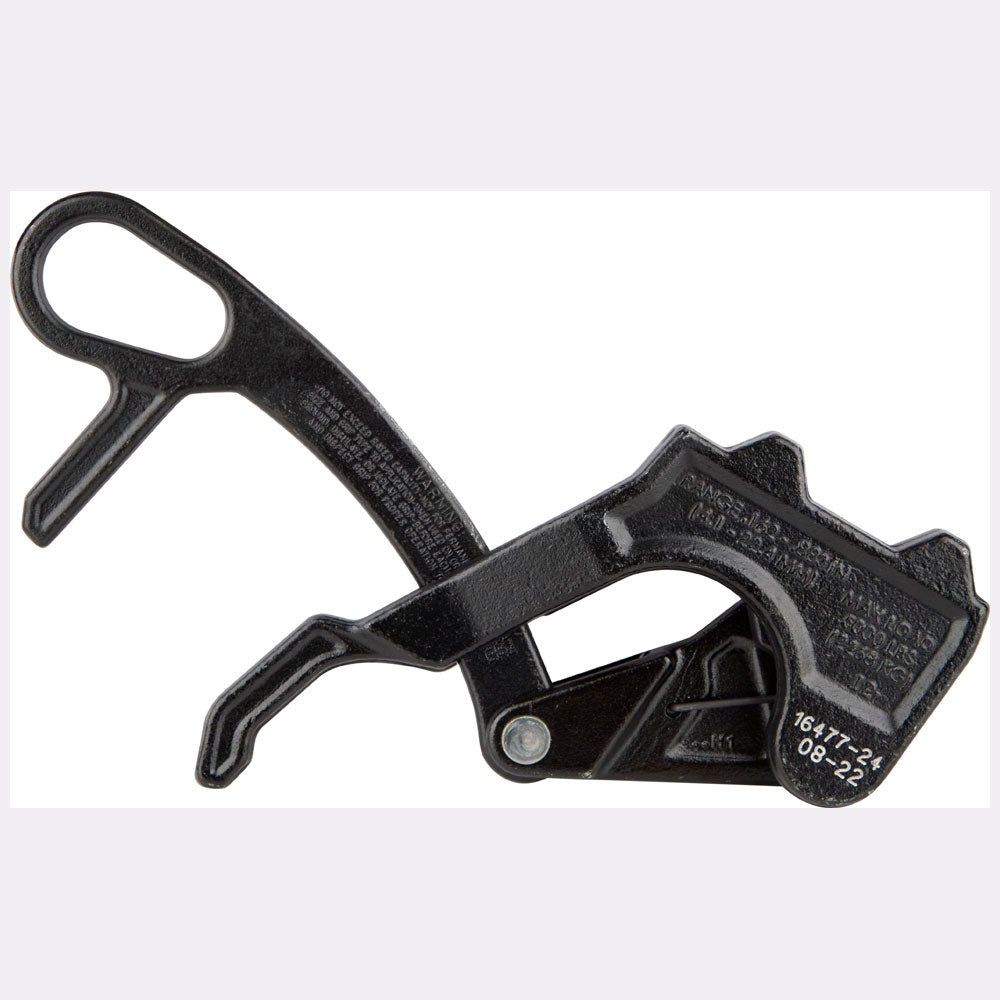

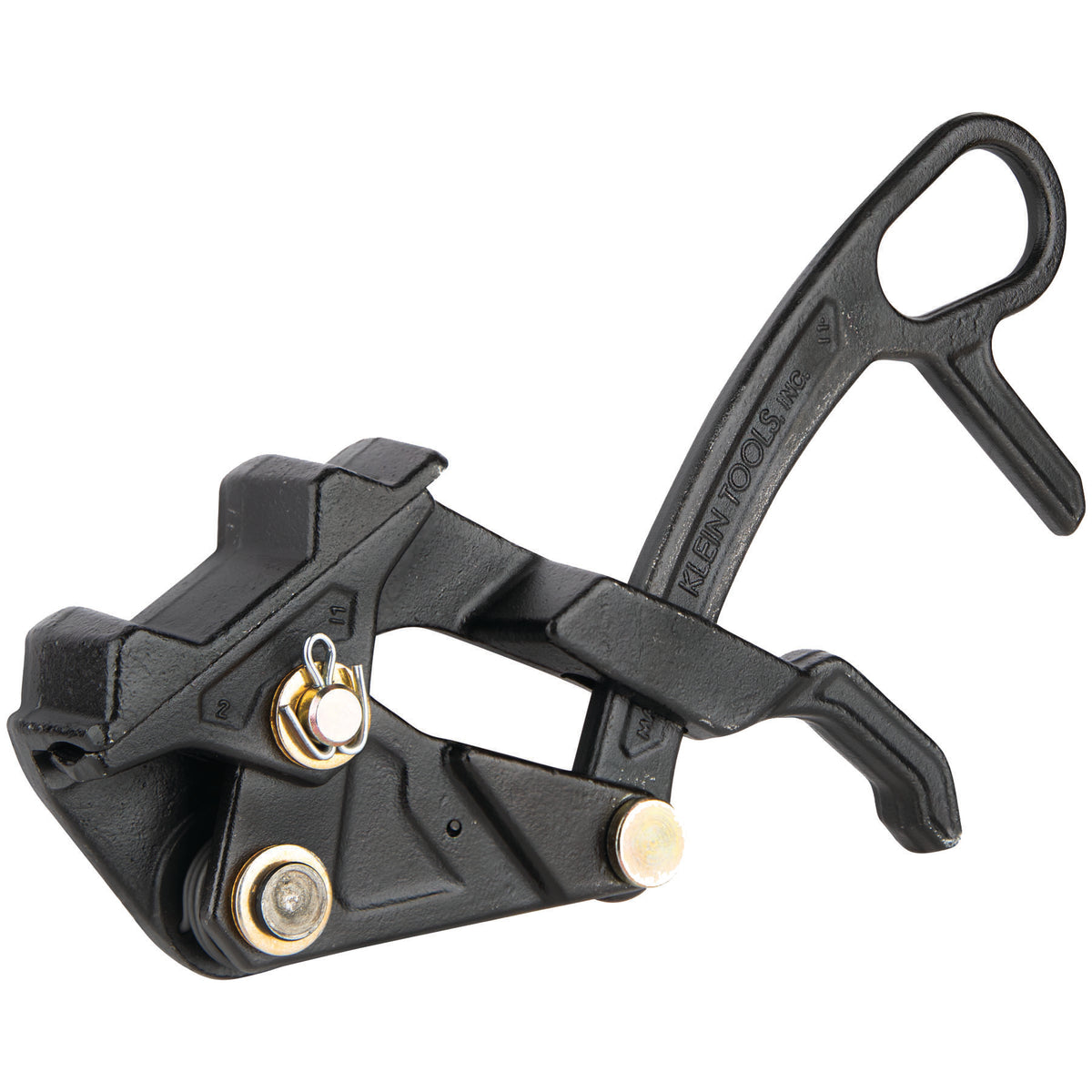

Klein Tools 1647724 | Wide Range Distribution Grip, EHS Wire
Klein Tools' Wide Range Distribution Grip with EHS Jaw holds a wide range of cable from 0.162-Inch to 0.883-Inch (4.11 to 22.42 mm). This versatile, one-handed actuation grip is 50-Percent lighter than the Klein's KT4600 grip. Made in the USA, this grip has a maximum safe load of 5000-Pound (2268 kg).
Specifications
Specifications
Klein Tools - 1647724 - Warnings
- Grips are to be used for temporary installation, not for permanent anchorage.
- When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
Klein Tools - 1647724 - Product Categories
- Wire Pulling Grips
- Parallel Jaw Grips
Klein Tools - 1647724 - Specifications
| Type: | Parallel Jaw Grip |
|---|---|
| Application: | Wire Pulling |
| Special Features: | One-Handed Grip |
| Overall Length: | 10.25'' (26 cm) |
| Overall Height: | 8'' (20.3 cm) |
| Overall Width: | 1.75'' (4.4 cm) |
| Material: | Steel |
| Cable Type: | Aircraft, EHS, Messenger, Guy Strand |
| Cable Diameter: | 0.162 to 0.883'' (4.11 to 22.42 mm) |
| Hot Latch: | N |
| Swing Latch: | N |
| Spring: | Y |
| Locking Handle: | N |
| Jaw Type: | Round |
| Jaw Length: | 3.31'' (8.4 cm) |
| Maximum Safe Load: | 5000 lb (2268 kg) |
| Weight: | 2.9 lb (1.3 kg) |
| UPC: | 92644470745 |
