Brand: Panduit
|
SKU:
LCA1/0-38H-X

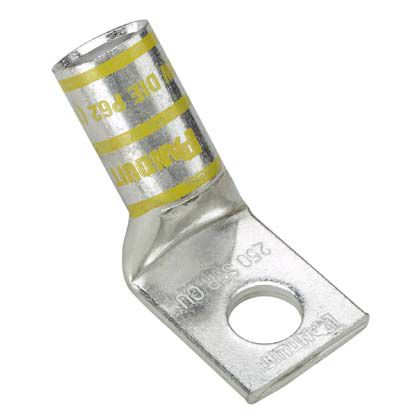

Panduit LCA1/0-38H-X | Pan-Lug LCA1/0-38H-X Copper Compression Connectors - Lugs
Regular price
$9.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCA1/0-38H-X | Pan-Lug LCA1/0-38H-X Copper Compression Conn...
Regular price
$9.45
Unit price
Description
Description
Panduit LCA1/0-38H-X | Pan-Lug LCA1/0-38H-X Copper Compression Connectors - Lugs
One-hole, standard barrel with window lug, 1/0 AWG wire, 45° angle tongue, 3/8 stud hole.
Specifications
Specifications
Panduit - LCA1/0-38H-X - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCA1/0-38H-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA1/0-38H-X |
| Item Description | Pan-Lug LCA1/0-38H-X Copper Compression Connectors - Lugs |
| Product Type | Copper Compression Connectors - Lugs |
| Base Material | Aluminum |
| Copper Code Conductor Size (AWG) | 1/0 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.94 |
| Barrel Length (mm) | 23.9 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.76 |
| Tongue Width (mm) | 19.3 |
| Tongue Angle | 45° |
| Tongue Thickness (In.) | 0.12 |
| Tongue Thickness (mm) | 3 |
| Overall Length (In.) | 1.76 |
| Overall Length (mm) | 44.7 |
| Finish/Coating | Tin-Plated |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Pink |
| Panduit Die Index Number | P42 |
| Burndy Die Index Number | 12 |
| Wire Strip Length (In.) | 1 |
| Wire Strip Length (mm) | 25.4 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
Panduit - LCA1/0-38H-X - Package Information
| UPC | 07498355848 |
|---|---|
| Std. Pkg. Qty. | 10 |
| Std. Pkg. Volume (cf) | 0.0302 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
