Brand: Panduit
|
SKU:
PSN16-M

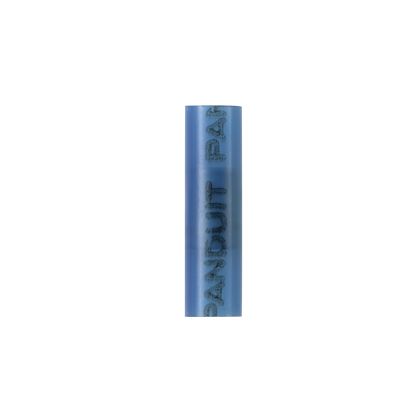

Panduit PSN16-M | Pan-Term PSN16-M Parallel Splice, Blue, Nylon, 20-16 AWG, PK1000
Regular price
$336.94
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PSN16-M | Pan-Term PSN16-M Parallel Splice, Blue, Nylon, 20...
Regular price
$336.94
Unit price
Description
Description
Panduit PSN16-M | Pan-Term PSN16-M Parallel Splice, Blue, Nylon, 20-16 AWG, PK1000
Panduit PSN16-M Nylon Insulated Parallel Splice
Specifications
Specifications
Panduit - PSN16-M - Product Categories
- Wire Termination
- Splices
Panduit - PSN16-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PSN16-M |
| Item Description | Pan-Term PSN16-M Parallel Splice, Blue, Nylon, 20-16 AWG, PK1000 |
| Product Type | Parallel Splice |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #20 |
| Minimum Copper Conductor Size (AWG STR) | #20 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.8 |
| Sub Brand | Pan-Term |
| Copper Conductor Size (AWG) | #20 - #16 |
| Barrel Type | Standard |
| Maximum Voltage (V) | 300 |
| Base Material | Brass |
| Insulation Material | Nylon |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Overall Length (In.) | 0.75 |
| Overall Length (mm) | 19 |
| Overall Width (In.) | 0.21 |
| Overall Width (mm) | 5.3 |
| Wire Strip Length (In.) | 0.3125 |
| Wire Strip Length (mm) | 7.9 |
| UL Temperature Rating (°C) | 105 |
| UL Temperature Rating (°F) | 221 |
| CSA Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°F) | 221 |
| Part Features | • Designed to splice two solid or stranded wires together to repair or lengthen wires • Parallel design results in only one crimp required to complete splice • Seamless tubular barrel provides a consistent high performance quality crimp |
Panduit - PSN16-M - Package Information
| UPC | 07498383303 |
|---|---|
| Std. Pkg. Qty. | 1000 |
| Std. Pkg. Volume (cf) | 0.0482 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
