Brand: CommScope
|
SKU:
469852

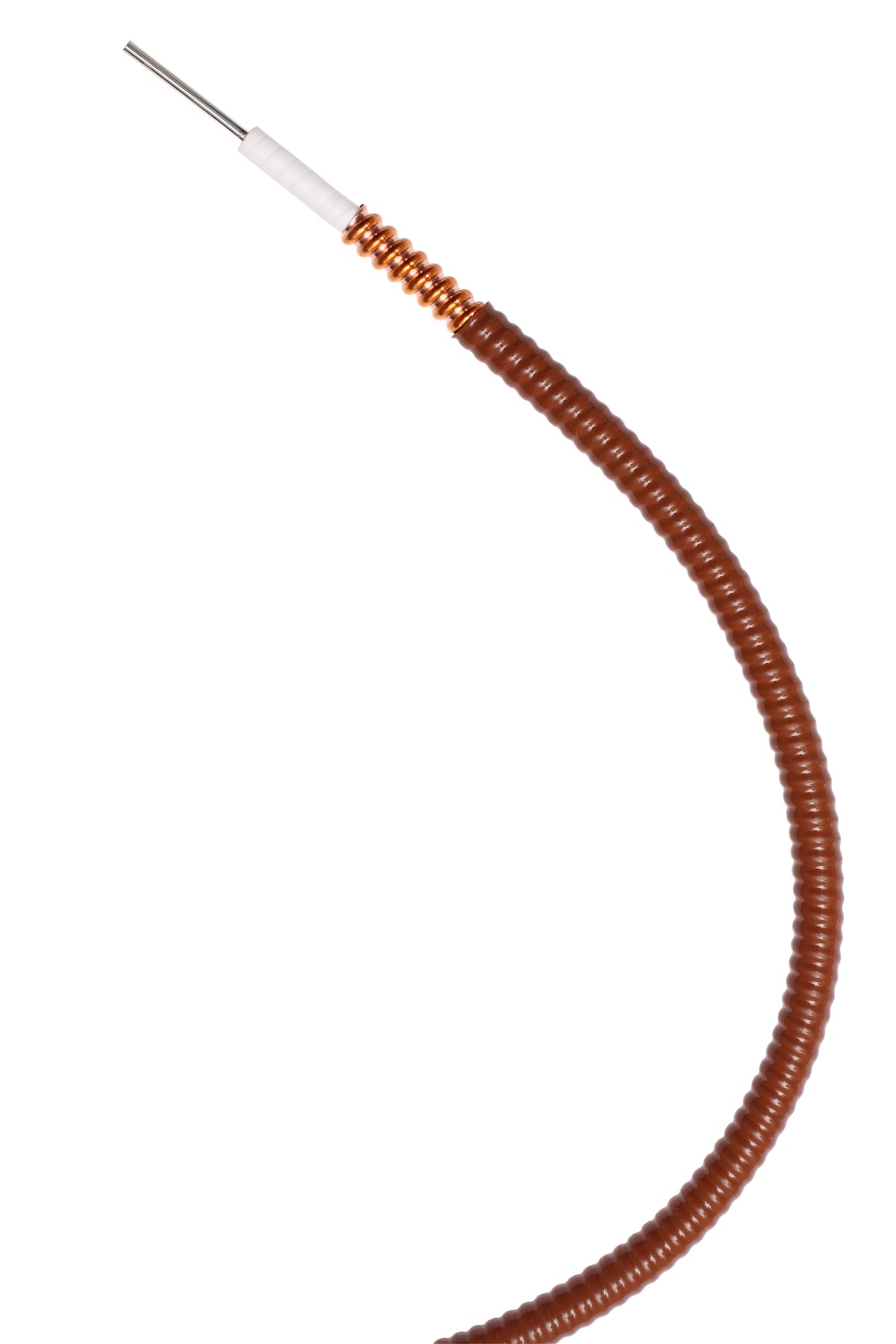

Commscope PTS1-HRL | PTS1-50, HELIAX Superflexible High Power, High Temperature Foam Coaxial Cable, corrugated copper, 1/4 in, brown TPC-ET jacket
Regular price
$7.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope PTS1-HRL | PTS1-50, HELIAX Superflexible High Power, High...
Regular price
$7.45
Unit price
Description
Description
Commscope PTS1-HRL | PTS1-50, HELIAX Superflexible High Power, High Temperature Foam Coaxial Cable, corrugated copper, 1/4 in, brown TPC-ET jacket
Specifications
Specifications
Product Classification
| Product Type | Coaxial wireless cable |
|---|---|
| Product Brand | HELIAX |
| Product Series | PTS1-50-P |
General Specifications
| Flexibility | Superflexible |
|---|---|
| Jacket Color | Brown |
Dimensions
| Diameter Over Dielectric | 4.826 mm / 0.19 in |
|---|---|
| Diameter Over Jacket | 7.366 mm / 0.29 in |
| Inner Conductor OD | 1.8796 mm / 0.074 in |
| Outer Conductor OD | 6.35 mm / 0.25 in |
| Nominal Size | 1/4 in |
Electrical Specifications
| 3rd Order IMD | -107 dBm |
|---|---|
| Cable Impedance | 50 ohm ±2 ohm |
| Capacitance | 80.7 pF/m / 24.597 pF/ft |
| dc Resistance, Inner Conductor | 6.234 ohms/km / 1.9 ohms/kft |
| dc Resistance, Outer Conductor | 6.562 ohms/km / 2 ohms/kft |
| dc Test Voltage | 1600 V |
| Inductance | 0.207 µH/m / 0.063 µH/ft |
| Insulation Resistance | 100000 MOhms-km |
| Jacket Spark Test Voltage (rms) | 4000 V |
| Operating Frequency Band | 100 – 12000 MHz |
| Peak Power | 6.4 kW |
| Velocity | 0.82 |
Material Specifications
| Dielectric Material | Foam FEP |
|---|---|
| Jacket Material | TPC-ET |
| Inner Conductor Material | Silver-plated copper wire |
| Outer Conductor Material | Corrugated copper |
Mechanical Specifications
| Minimum Bend Radius, multiple Bends | 25.4 mm / 1 in |
|---|---|
| Minimum Bend Radius, Single Bend | 25.4 mm / 1 in |
| Number of Bends, minimum | 15 |
| Number of Bends, typical | 20 |
| Tensile Strength | 68 kg / 149.914 lb |
| Bending Moment | 0.8 N-m / 7.081 in lb |
| Flat Plate Crush Strength | 1.8 kg/mm / 100.795 lb/in |
Environmental Specifications
| Installation temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Operating Temperature | -40 °C to +150 °C (-40 °F to +302 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Average Power, Inner Conductor Temperature | 200 °C / 392 °F |
Packaging and Weights
| Cable weight | 0.1 kg/m / 0.067 lb/ft |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
