Brand: Alpha Wire
|
SKU:
A25444

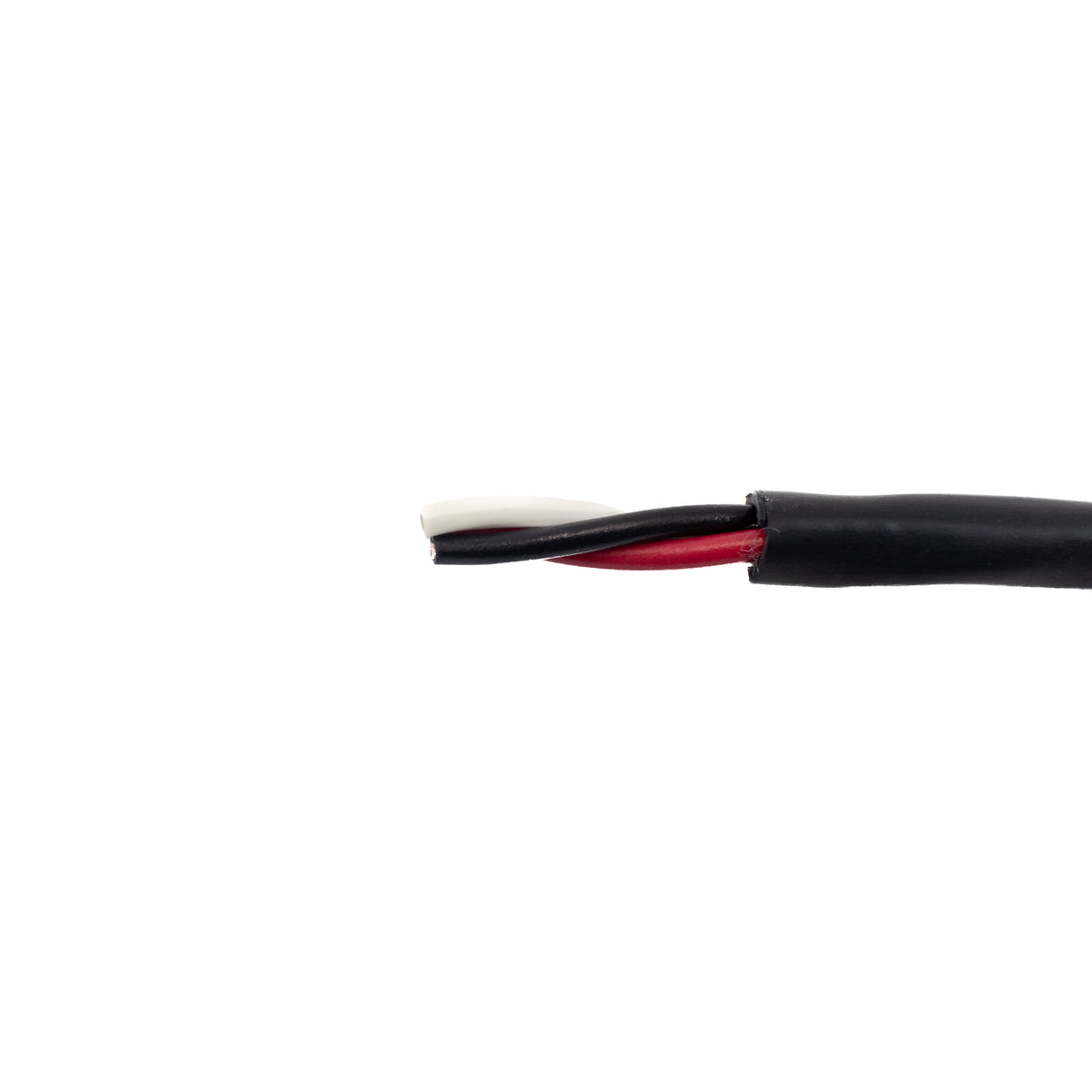

Alpha Wire 25444 BK199 | 4 Conductor Multi-Conductor Cable Black 14 AWG - 1000.0' (304.8m)
Regular price
$14.69
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 25444 BK199 | 4 Conductor Multi-Conductor Cable Black 14...
Regular price
$14.69
Unit price
Description
Description
Alpha Wire 25444 BK199 - XTRA GUARD - 14-4C STR TC SRPVC
Key Features
- Heavy-duty cable for use in industrial applications where abrasion and mechanical abuse is common
- Features a specially formulated, rugged polyurethane jacket offering three times the tear and abrasion resistance of ordinary PVC
- Provides extreme resistance to cut-through and physical damage
- Designed with moderate to high resistance to most oils, solvents, chemicals, and fuels
- Offers outstanding ultraviolet light stability in all jacket colors
- Provides exceptional protection against EMI interference when Supra-Shield is specified
- Meets NFPA Standard 79 for industrial machinery*
Specifications
Specifications
Specifications
| Component 1 | 4 X 1 COND |
|---|---|
| Conductor | 14 (41/30) AWG Tinned Copper |
| Insulation | 0.032" Wall, Nom. PVC |
| Color Code | Alpha Wire Color Code E |
| Cable Assembly | 4 Components Cabled |
| Twists: | 3.2 Twists/foot (min) |
| Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| Core Wrap | Nonwoven Polyester Tape, 25% Overlap, Min. |
| Jacket | 0.063" Wall, Nom.,Polyurethane (TPU) |
| Color(s) | Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White |
| Ripcord | 1 End 810 Denier Nylon |
| ALPHA WIRE-* P/N 25444 XTRAGUARD(R) 2 RU AWM 20952 VW-1 OR CRUAWM I/II A/B 105C 600 VOLTS FT1 CEROHS (SEQ FOOTAGE)* = Factory Code | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| California Proposition 65: | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -30 to 105°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 129 Lbs, Maximum |
| Sunlight Resistance | Yes |
| Capacitance | 27 pF/ft @1 kHz, Nominal Conductor to Conductor |
| Inductance | 0.19 µH/ft, Nominal |
| Conductor DCR | 2.8 ?/1000ft @20°C, Nominal |
