Acceltex Solutions ATS-APANTARTMNT-UNIV1 | Universal AP and Antenna...
Description
Description

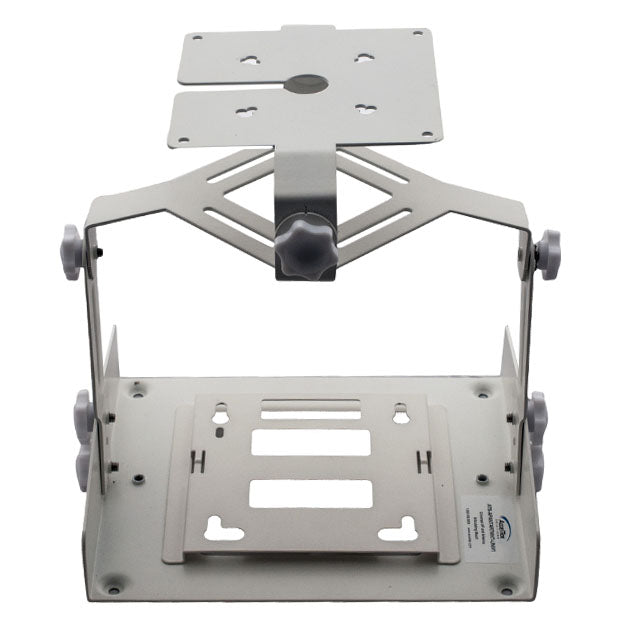

The AccelTex Solutions Universal AP and Antenna Articulating Mount allows an AP and an antenna to be mounted in the same location. The mount can be fastened to a ceiling or wall, to an I-beam or to a piece of all thread. The mount allows both horizontal and vertical articulation of the antenna. This mount includes additional lengthening arms to allow for more antenna articulation and are removable for a more compact solution. This mount is compatible with all AccelTex Antennas. Additional antenna mounting plates are available for other vendor antennas.
Acceltex Solutions - ATS-APANTARTMNT-UNIV1 - Features
- Dimensions: 10.7" L x 9.3" W x 11.0" H (271mm L x 237mm W x 281mm H)
- Weights: 5.05 lb (2.29 kg)
- Installation: Wall, Ceiling, I-Beam, 3/8" All-Thread Mount, Metal Strapping
- Max Vertical Articulation: +/-80
- Max Horizontal Articulation: +/- 80
- Installan E
Specifications
Specifications
Acceltex Solutions - ATS-APANTARTMNT-UNIV1 - Specifications
| Type | Wireless |
|---|---|
| UNSPSC Code | 43223100 |
| Dimensions | 10.7" L x 9.3" W x 11.0" H (271mm L x 237mm W x 281mm H) |
| Max horizontal articulation | +/- 80 |
| Max vertical articulation | +/-80 |
| Weights | 5.05 lb (2.29 kg) |
| Applicable technology | 802.11ac, 802.11ax, 802.11n |
| Ideal applications | High Density, Indoor Wi-Fi, Outdoor Wi-Fi, Stadium |
| Applicable industries | Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse |
| Compatible AP | Adtran/Bluesocket 1925, Adtran/Bluesocket 1935, Adtran/Bluesocket 2035, Adtran/Bluesocket 3045, Aruba/HP AP-314, Aruba/HP AP-315, Aruba/HP AP-504, Aruba/HP AP-505, Aruba/HP AP-514, Aruba/HP AP-515, Aruba/HP AP-518, Aruba/HP AP-565, Aruba/HP AP-567, Aruba/HP AP-635, Cisco 1602e, Cisco 1852e, Cisco 2602e, Cisco 2702e, Cisco 2802e, Cisco 3502e, Cisco 3602e, Cisco 3702e, Cisco 3702i, Cisco 3802e, Cisco 3802i, Cisco Catalyst 9115e, Cisco Catalyst 9115i, Cisco Catalyst 9117, Cisco Catalyst 9120AXE, Cisco Catalyst 9120i, Cisco Meraki MR42E, Cisco Meraki MR46E, Cisco Meraki MR53E, Extreme AP 3715e, Extreme AP 3805e, Extreme AP 3825e, Extreme AP 3935e, Mist AP32E, Mist AP33, Mist AP41, Mist AP41E, Mist AP43, Mist AP43E, Mist AP45 |
| Installation Environment | Indoor or Outdoor |
| Installation | 3/8" All-Thread Mount, Ceiling, I-Beam, Metal Strapping, Wall |
