Brand: Panduit
|
SKU:
956066
Panduit PZWMC12P | Wall Mount Cabinet | UPC - 61305629737
Regular price
$1,071.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PZWMC12P | Wall Mount Cabinet | UPC - 61305629737
Regular price
$1,071.64
Unit price
Description
Description

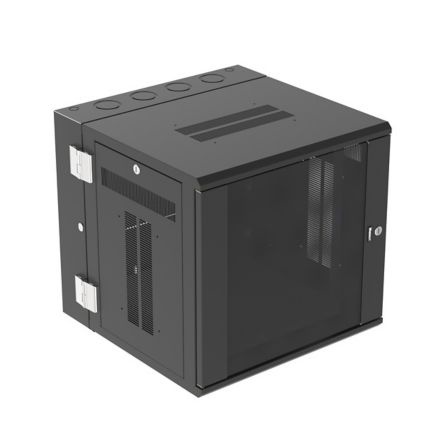

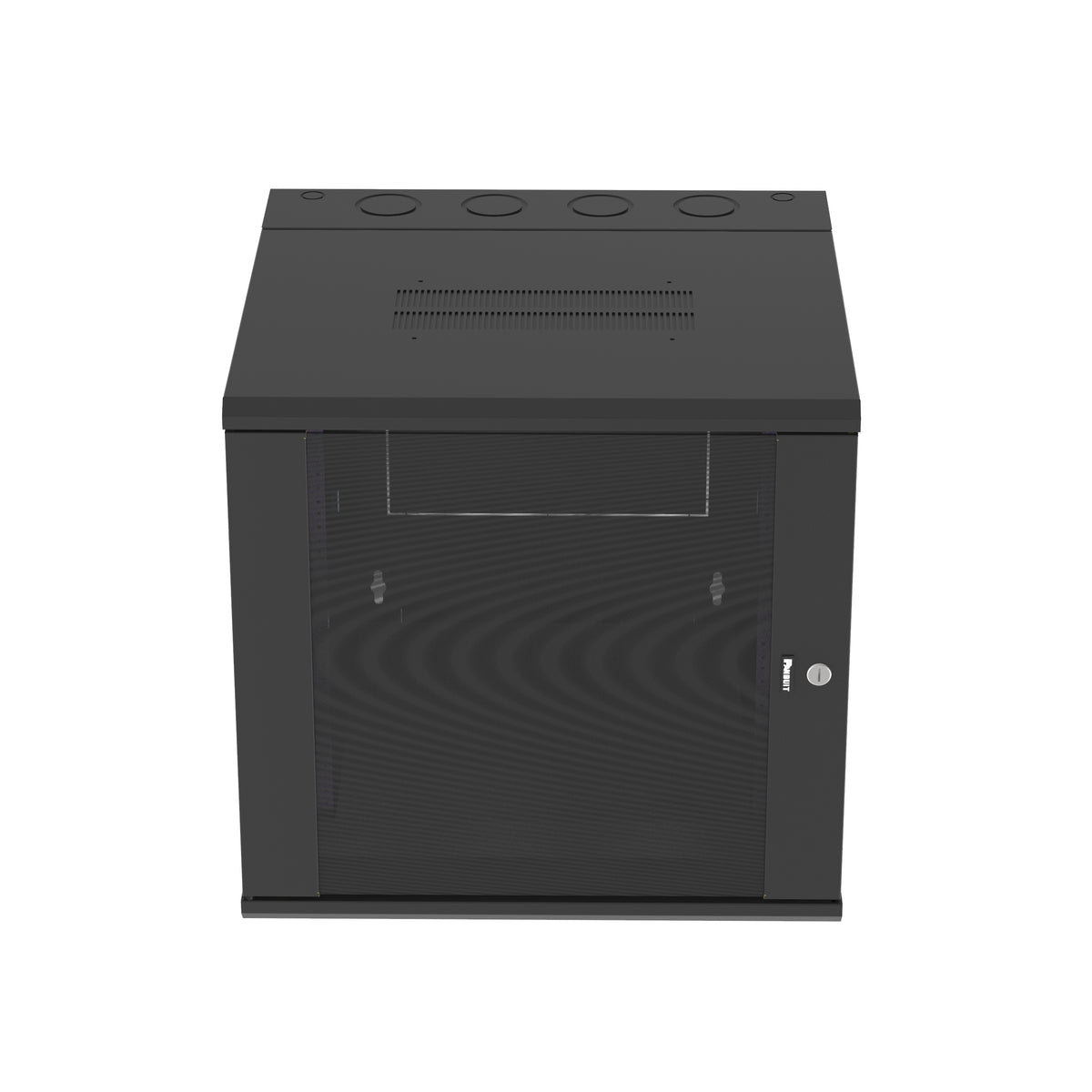

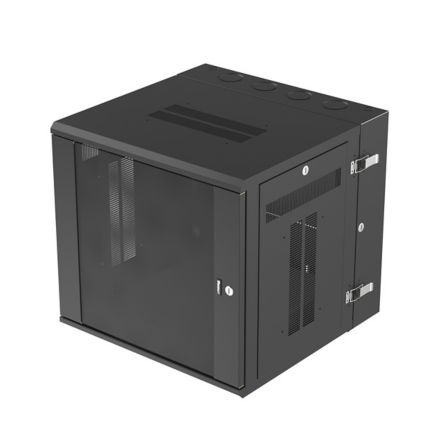

Panduit PanZone Wall Mount Cabinet, 25.8 in Height, 25 in Width, 22.8 in Depth, 12U Rack Unit, Lock: Keyed/Latch, 1/2 in, 3/4 in, 2 in, 2-1/4 in Knockout Cable Entry, 250 lb Capacity, Wall Mounting, Steel, Powder Coated, Black
Features + Benefits
- Allows cabinet to swing freely for easy operation even under maximum load capacity
- Improves cable routing by enabling front accessible moves, adds and changes, increases airflow through the cabinet because patch cords are no longer in the vertical channel blocking side ventilation
- Optimizes airflow for improved heat dissipation from various switches and power supplies
- Provides additional ventilation for multiple switches or PoE enabled devices, use in cabinets with a windowed door
- Increases usable cabinet depth by accommodating various equipment including 1 RU or 2 RU PoE switches up to 22.7 in deep when the rails are in the forward most position
- Allows for quick and easy location of rack spaces speeding installation of horizontal rack mount products
- Allows for easy, secured access to installed equipment and cable routing
Panduit PZWMC12P Key Specs
| Product Type | Wall Mount Cabinet |
| Material | Steel |
| Number of Rack Units | 12 |
| Overall Width (In.) | 25 |
| Overall Width (mm) | 635 |
| Overall Depth (In.) | 25 |
| Overall Depth (mm) | 635 |
| Overall Height (In.) | 23.8 |
| Overall Height (mm) | 604.5 |
| Color | Black |
| Sub Brand | PanZone |
| Standards Met | Accepts 19" EIA Rack Mount Panels and Equipment, RoHS Compliant |
| Part Features | Hinged middle section with removeable side panels |
Panduit PZWMC12P Data Sheets
| Part Drawings | JUMPER KIT (PZWMCGK) | Download and View |
| Installation Documents | Jumper Kit - PZWMCGK INSTALLATION INSTRUCTIONS | Download and View |
| Part Drawings | Panzone 12Ru, Deep Hinged Wall Mount Cabinet Perforated Door | Download and View |
| Part Drawings | Vertical Mounting Rear Equipment Rails For Wall Mount Cabinets | Download and View |
| Installation Documents | PANZONE Wall Mount Cabinet | Download and View |
