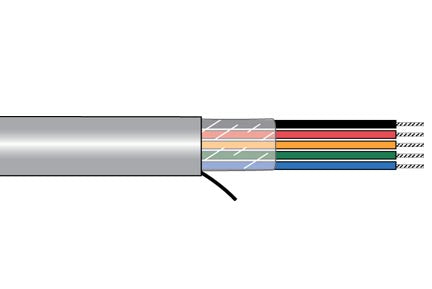

Alpha Wire 5070C SL001 | Xtra-Guard® 1 - High Performance in a Tough PVC Cable
Alpha Wire - 5070C SL001 - Features
- High-performance cable for general-purpose applications
- Features a unique, premium-grade PVC insulation and jacket for Easier routing of cable in small spaces
- Provides resistance to oils per UL Oil Res I (60C OIL RES) and Class 43
- UL SUN RES
- Designed for use in ambient temperatures up to 105 ° C
- Temperature range of -35 ° C to + 105 ° C (SR-PVC) and -30 ° C to + 105 ° C (PVC)
- Provides exceptional protection contre EMI interference When Supra-Shield is specified
Specifications
Specifications
Alpha Wire - 5070C SL001 - Specifications
| Component 1 | 10 X 1 COND |
|---|---|
| Conductor | 18 (16/30) AWG Tinned Copper |
| Insulation | 0.016" Wall, Nom. PVC |
| Cable Assembly | 10 Components Cabled |
| Twists: | 2.7 Twists/foot (min) |
| Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| Core Wrap | Nonwoven Polyester Tape, 20% Overlap, Min. |
| Jacket | 0.032" Wall, Nom.,PVC |
| Ripcord | 1 End 810 Denier Nylon |
| Temperature Range | -30 to 105°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 126 Lbs, Maximum |
| Voltage Rating | 300 VRMS |
| Capacitance | 30 pF/ft @1 kHz, Nominal Conductor to Conductor |
| Inductance | 0.18 ?H/ft, Nominal |
| Conductor DCR | 7.1 ?/1000ft @20°C, Nominal |
