Brand: Corning
|
SKU:
371-COROM1-TBIC20-01

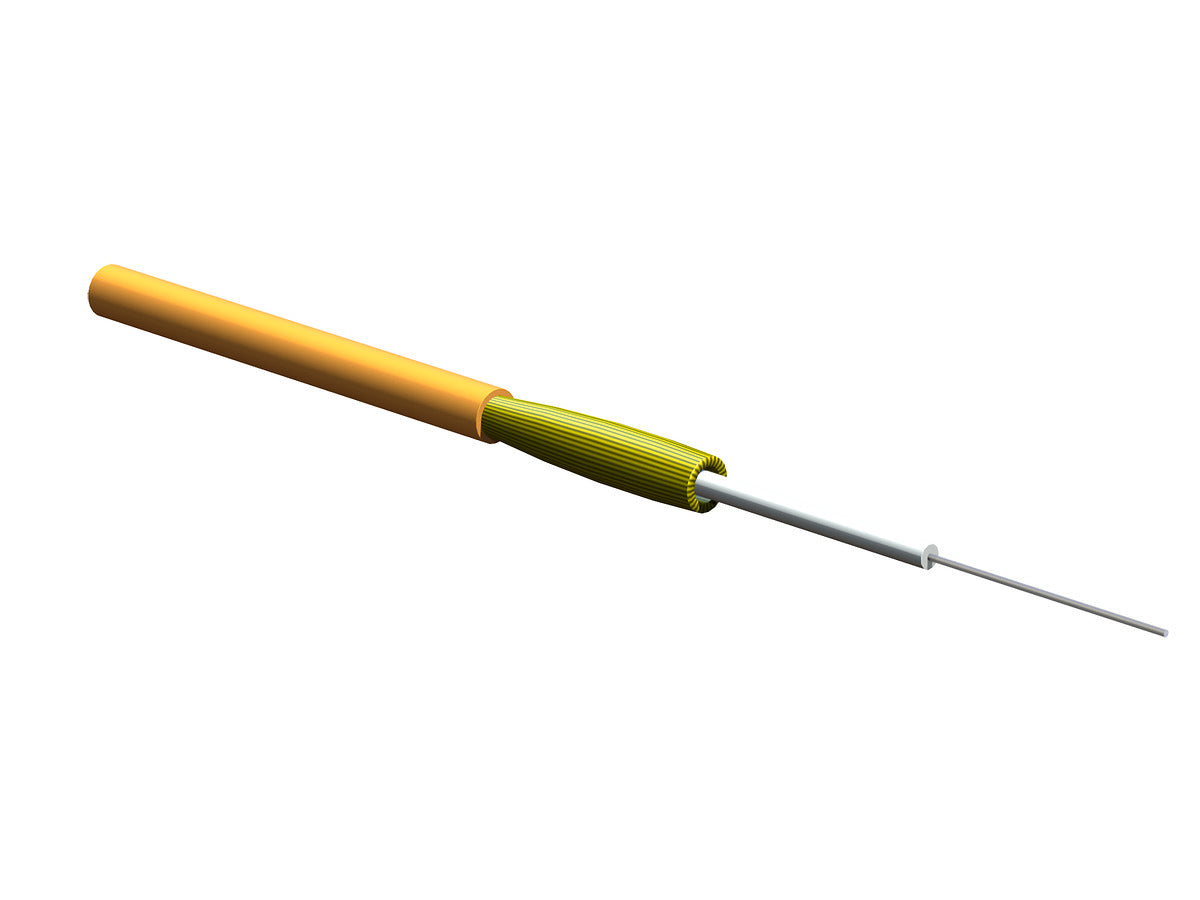

Corning 001K31-31330-24 | Single-Fiber Tight-Buffered Cable, Riser 2.0 mm diameter, 62.5 µm multimode (OM1)
Regular price
$1.46
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 001K31-31330-24 | Single-Fiber Tight-Buffered Cable, Riser ...
Regular price
$1.46
Unit price
Brand: Corning
|
SKU:
371-COROM1-TBIC20-01
Regular price
$1.46
Unit price
Description
Description

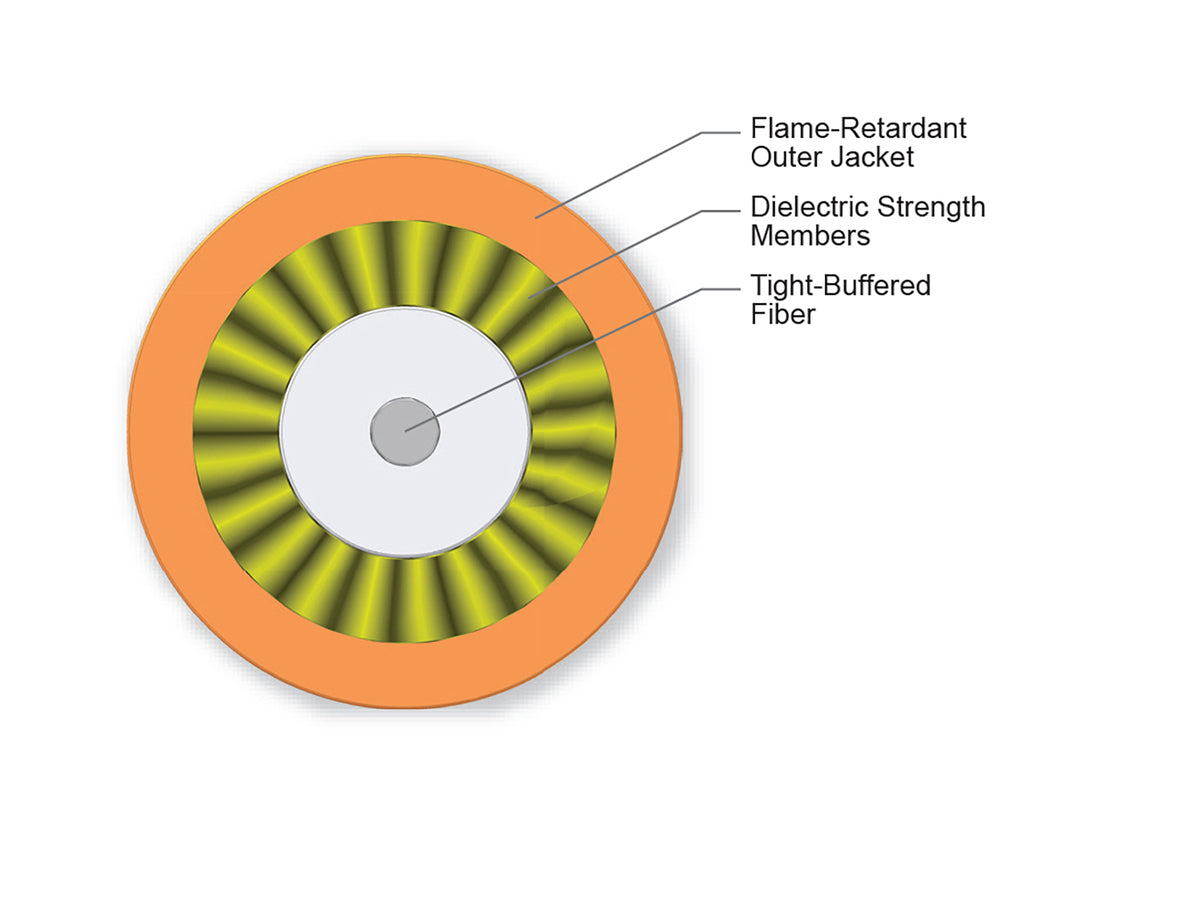

Corning 001K31-31330-24 | Single-Fiber Tight-Buffered Cable, Riser 2.0 mm diameter, 62.5 µm multimode (OM1)
Specifications
Specifications
Corning - 001K31-31330-24 - Product Categories
- Fiber Optic Cables
- Indoor
- Indoor Riser Cables
Corning - 001K31-31330-24 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 001K31-31330-24 |
| Item Description | Single-Fiber Tight-Buffered Cable, Riser 2.0 mm diameter, 62.5 µm multimode (OM1) |
| General Specifications | - |
| Product Number | 001K31-31330-24 |
| EAN Code | 4056418174082 |
| Environment | Indoor |
| Cable Type | Tight-Buffered |
| Product Type | Interconnect |
| Fiber Category | 62.5 µm MM (OM1) |
| Flame Rating | Riser (OFNR) |
| Application | General Purpose Horizontal |
| Fiber Count | 1 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR, UL-1666, CSA FT-4 |
| Flame Test Method | UL-1666 and CSA FT-4 (for riser and general building applications), ICEA S-83-596 |
| Environmental Conditions | - |
| Temperature Range, Operation | 0°C to 70°C (32°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |
| Cable Design | - |
| Fiber Count | 1 |
| Outer Jacket Color | Orange |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tight Buffer Color | White |
| Flame Rating | Riser (OFNR) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 12N (2.7lbf) |
| Max. Tensile Strength, Short-Term | 40N (8.99lbf) |
| Min. Bend Radius Installation | 5mm (0.2in) |
| Min. Bend Radius Operation | 5mm (0.2in) |
| Optical Characteristics | - |
| Fiber Code | K |
| Fiber Name | 62.5 µm MM (OM1) |
| Performance Option Code | 30 |
| Fiber Core Diameter | 62.5µm |
| Minimum Effective Modal Bandwidth (EMB) | 220 MHz |
| Maximum Attenuation | 3.4 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 200 MHz / 500 MHz |
| Serial 1 Gigabit Ethernet | 300 m / 550 m |
| Serial 10 Gigabit Ethernet | 33 m / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM1 |
| Dimensions | - |
| Cable Weight | 36kg/km (24.19lb/1000 ft) |
