Brand: Corning
|
SKU:
373-COROM3-TBAIRL06M

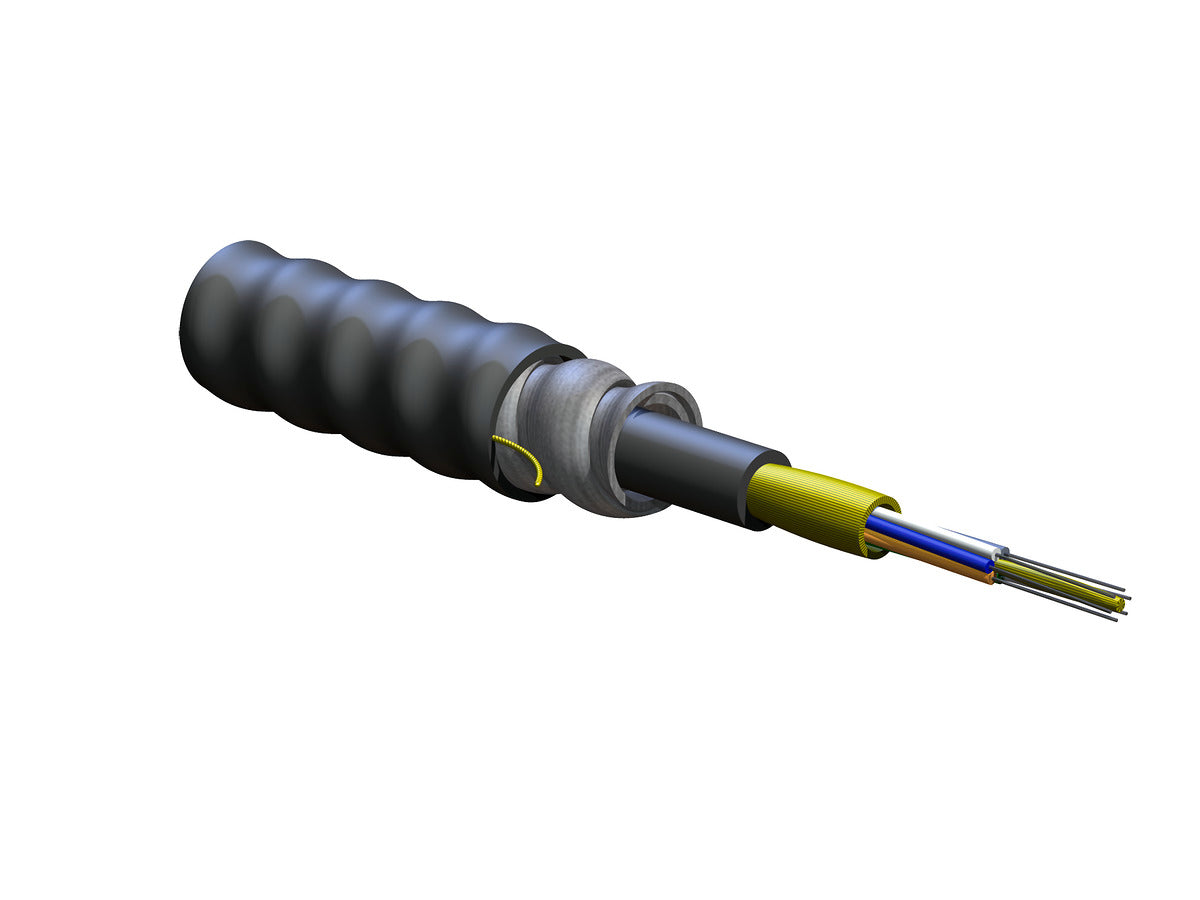

Corning 006T8P-31180-A3 | FREEDM One Tight-Buffered, Interlocking Armored Cable, Plenum 6 F, 50 µm multimode (OM3)
Regular price
$10.92
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 006T8P-31180-A3 | FREEDM One Tight-Buffered, Interlocking A...
Regular price
$10.92
Unit price
Brand: Corning
|
SKU:
373-COROM3-TBAIRL06M
Regular price
$10.92
Unit price
Shipping calculated at checkout.
Description
Description
Corning 006T8P-31180-A3 | FREEDM One Tight-Buffered, Interlocking Armored Cable, Plenum 6 F, 50 µm multimode (OM3)
Specifications
Specifications
Corning - 006T8P-31180-A3 - Product Categories
- Fiber Optic Cables
- Indoor/Outdoor
- Indoor/Outdoor Plenum Cables
Corning - 006T8P-31180-A3 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 006T8P-31180-A3 |
| Item Description | FREEDM One Tight-Buffered, Interlocking Armored Cable, Plenum 6 F, 50 µm multimode (OM3) |
| General Specifications | - |
| Product Number | 006T8P-31180-A3 |
| EAN Code | 4056418177342 |
| Environment | Indoor/Outdoor |
| Cable Type | Tight-Buffered |
| Product Type | Interlocking Armor |
| Fiber Category | 50 µm MM (OM3) |
| Flame Rating | Plenum (OFCP) |
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal, Vertical Riser, Plenum |
| Fiber Count | 6 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFCP, CSA FT-6, ICEA S-104-696 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0°C to 60°C (32°F to 140°F ) |
| Temperature Range, Operation | -40°C to 70°C (-40°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |

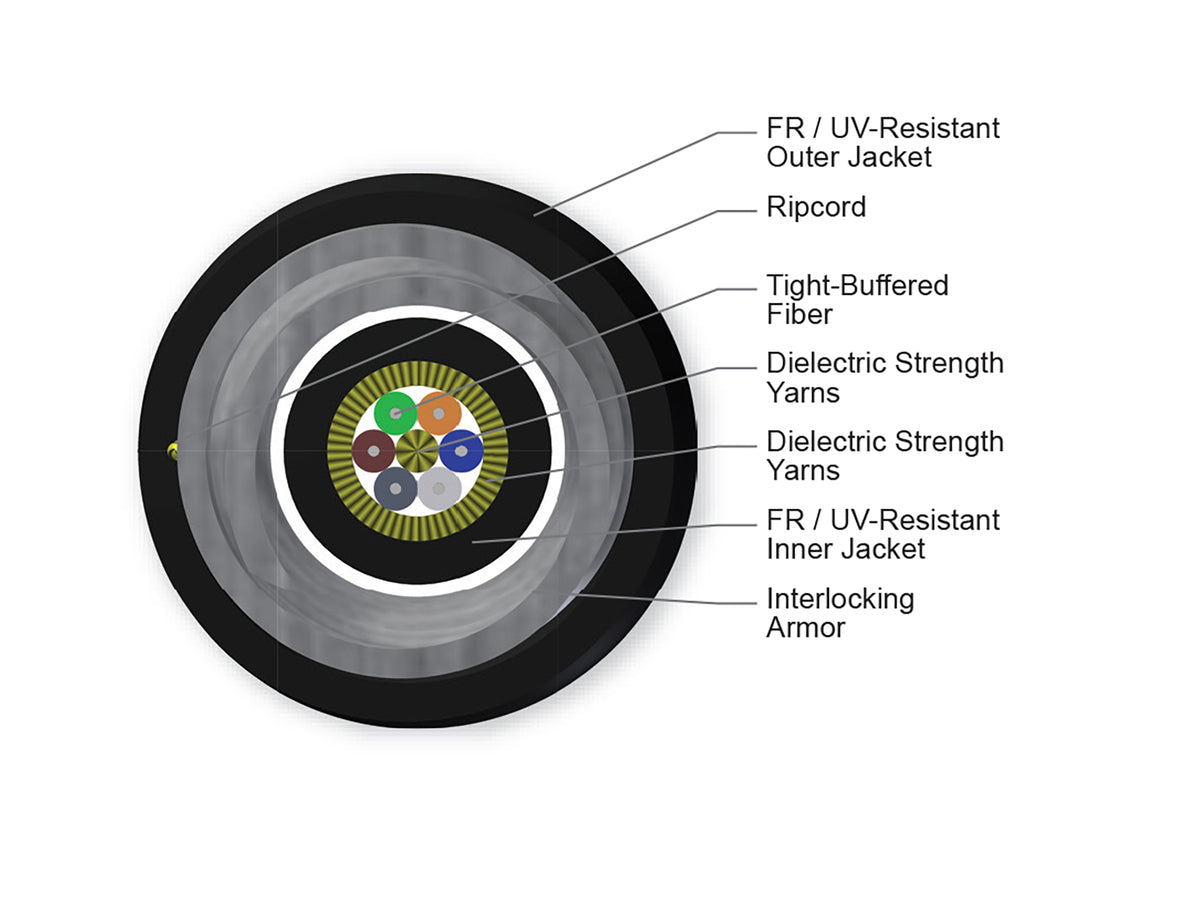

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 6 |
| Number of Ripcords | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Water-swellable strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Interlocking Armor |
| Inner Jacket Material | Flame-Retardant, UV-Resistant |
| Tight Buffer Color | Blue, Orange, Green, Brown, Slate, White |
| Flame Rating | Plenum (OFCP) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 200N (44.96lbf) |
| Max. Tensile Strength, Short-Term | 675N (151.75lbf) |
| Min. Bend Radius Installation | 169.5mm (6.67in) |
| Min. Bend Radius Operation | 113mm (4.45in) |
| Nominal Inner Cable Diameter | 5.3mm (0.21in) |
| Nominal Outer Diameter | 11.3mm (0.44in) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 80 |
| Fiber Core Diameter | 50µm |
| Minimum Effective Modal Bandwidth (EMB) | 2000 MHz*km / - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 300 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM3 |
| Dimensions | - |
| Cable Weight | 108.2kg/km (72.71lb/1000 ft) |
