Brand: Corning
|
SKU:
373-COROM1-TBPA-24

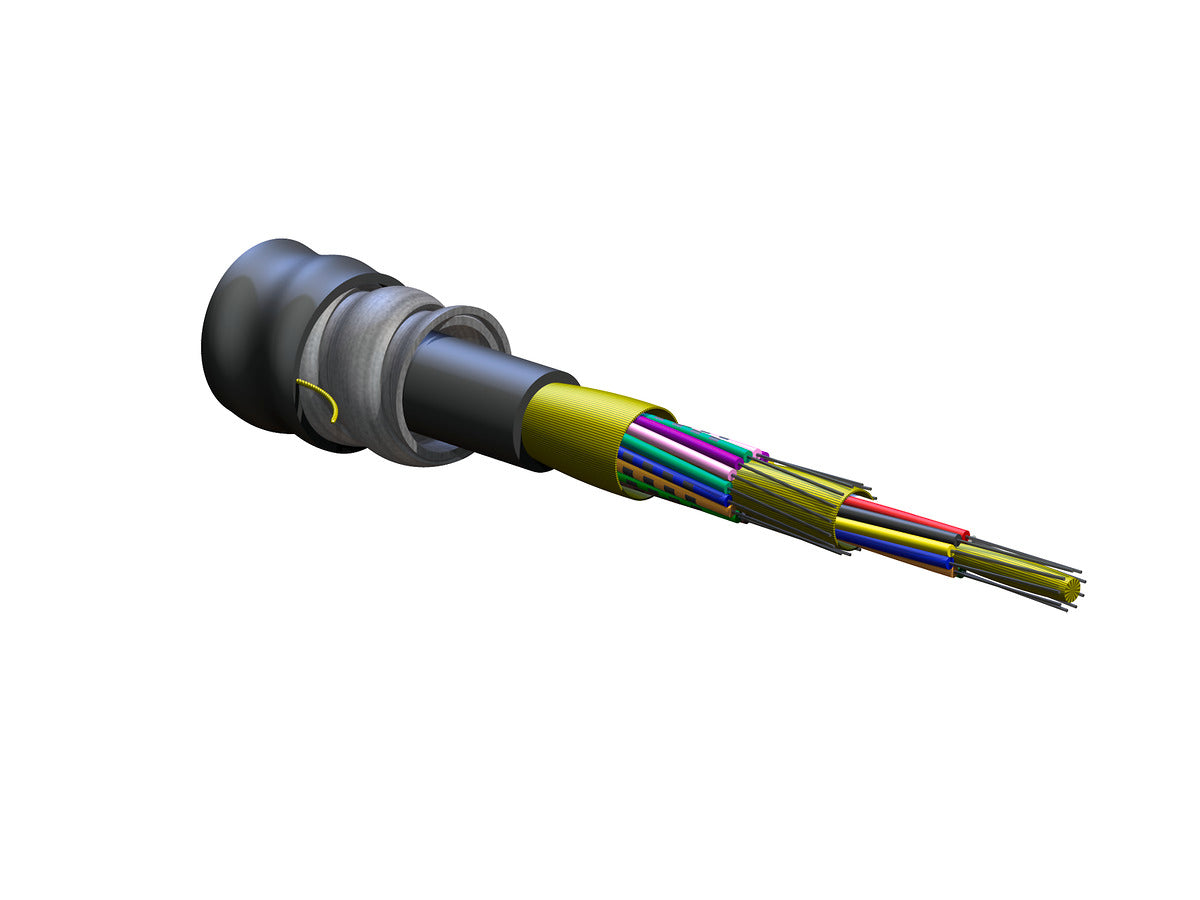

Corning 024K8P-31130-A3 | FREEDM One Tight-Buffered, Interlocking Armored Cable, Plenum 24 F, 62.5 µm multimode (OM1)
Regular price
$12.28
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 024K8P-31130-A3 | FREEDM One Tight-Buffered, Interlocking A...
Regular price
$12.28
Unit price
Brand: Corning
|
SKU:
373-COROM1-TBPA-24
Regular price
$12.28
Unit price
Shipping calculated at checkout.
Description
Description
Corning 024K8P-31130-A3 | FREEDM One Tight-Buffered, Interlocking Armored Cable, Plenum 24 F, 62.5 µm multimode (OM1)
Specifications
Specifications
Corning - 024K8P-31130-A3 - Product Categories
- Fiber Optic Cables
- Indoor/Outdoor
- Indoor/Outdoor Plenum Cables
Corning - 024K8P-31130-A3 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 024K8P-31130-A3 |
| Item Description | FREEDM One Tight-Buffered, Interlocking Armored Cable, Plenum 24 F, 62.5 µm multimode (OM1) |
| General Specifications | - |
| Product Number | 024K8P-31130-A3 |
| EAN Code | 4056418198378 |
| Environment | Indoor/Outdoor |
| Cable Type | Tight-Buffered |
| Product Type | Interlocking Armor |
| Fiber Category | 62.5 µm MM (OM1) |
| Flame Rating | Plenum (OFCP) |
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal, Vertical Riser, Plenum |
| Fiber Count | 24 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFCP, CSA FT-6, ICEA S-104-696 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0°C to 60°C (32°F to 140°F ) |
| Temperature Range, Operation | -40°C to 70°C (-40°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |

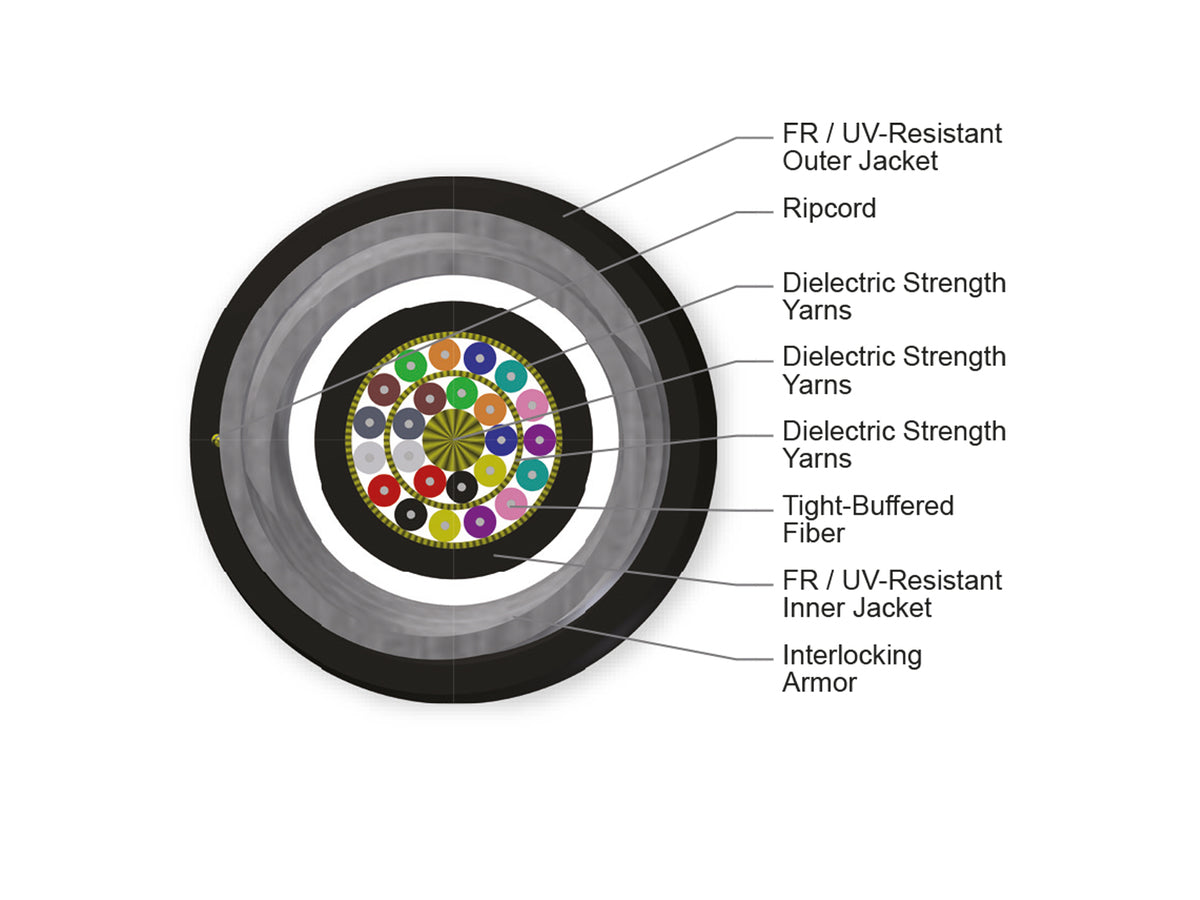

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 24 |
| Number of Ripcords | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Water-swellable strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Interlocking Armor |
| Inner Jacket Material | Flame-Retardant, UV-Resistant |
| Tight Buffer Color | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua, Blue*, Orange*, Green*, Brown*, Slate*, White *, Red*, Black*, Yellow*, Violet*, Rose*, Aqua* |
| Flame Rating | Plenum (OFCP) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400N (89.92lbf) |
| Max. Tensile Strength, Short-Term | 1350N (303.49lbf) |
| Min. Bend Radius Installation | 205.5mm (8.09in) |
| Min. Bend Radius Operation | 137mm (5.39in) |
| Nominal Inner Cable Diameter | 8mm (0.31in) |
| Nominal Outer Diameter | 13.7mm (0.54in) |
| Optical Characteristics | - |
| Fiber Code | K |
| Fiber Name | 62.5 µm MM (OM1) |
| Performance Option Code | 30 |
| Fiber Core Diameter | 62.5µm |
| Minimum Effective Modal Bandwidth (EMB) | 220 MHz |
| Maximum Attenuation | 3.4 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 200 MHz / 500 MHz |
| Serial 1 Gigabit Ethernet | 300 m / 550 m |
| Serial 10 Gigabit Ethernet | 33 m / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM1 |
| Dimensions | - |
| Cable Weight | 165.4kg/km (111.14lb/1000 ft) |
