Brand: Corning
|
SKU:
370-COROM4-RIBP-216

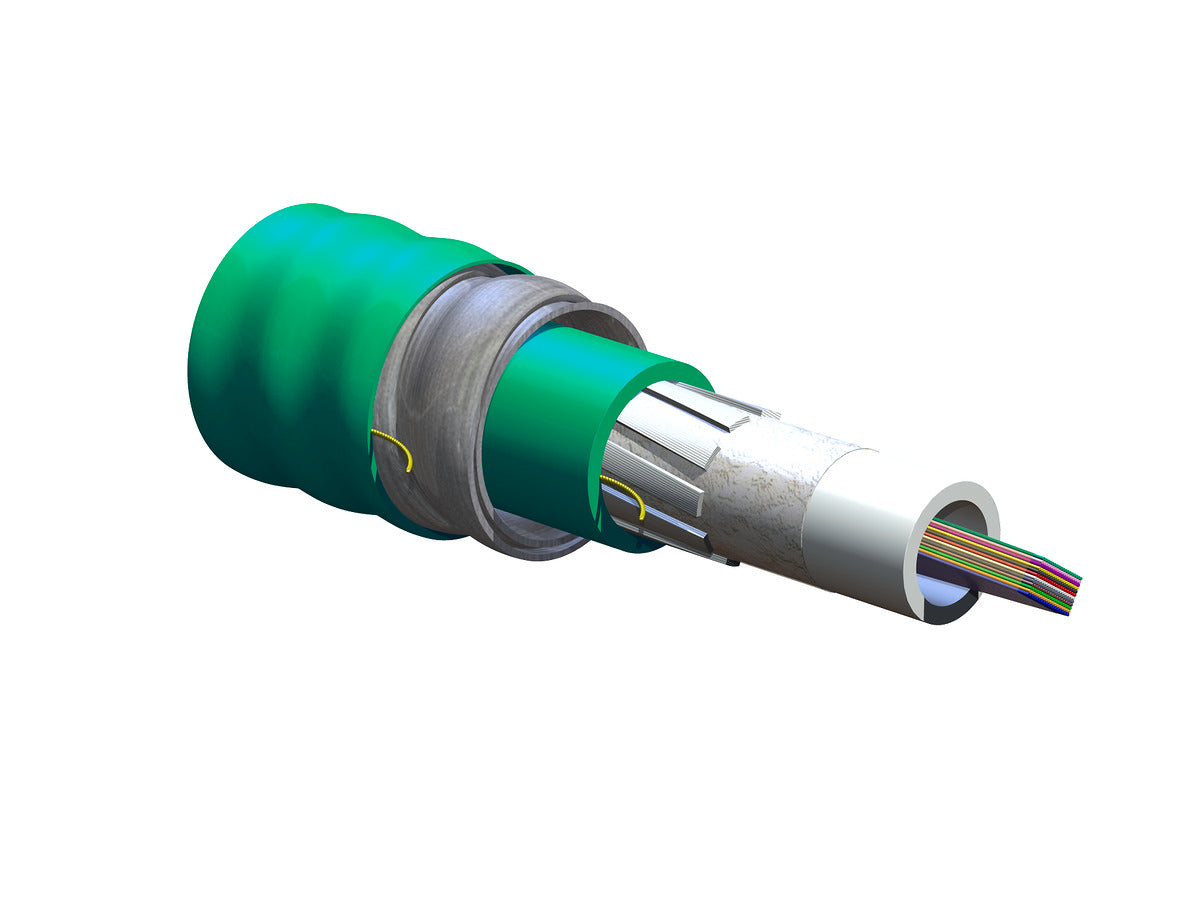

Corning 216TC8-14190-A3 | Ribbon Interlocking Armored Cable, Plenum 216 F, 50 µm multimode (OM4)
Regular price
$96.33
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 216TC8-14190-A3 | Ribbon Interlocking Armored Cable, Plenum...
Regular price
$96.33
Unit price
Brand: Corning
|
SKU:
370-COROM4-RIBP-216
Regular price
$96.33
Unit price
Shipping calculated at checkout.
Description
Description
Corning 216TC8-14190-A3 | Ribbon Interlocking Armored Cable, Plenum 216 F, 50 µm multimode (OM4)
Specifications
Specifications
Corning - 216TC8-14190-A3 - Product Categories
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 216TC8-14190-A3 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 216TC8-14190-A3 |
| Item Description | Ribbon Interlocking Armored Cable, Plenum 216 F, 50 µm multimode (OM4) |
| General Specifications | - |
| Product Number | 216TC8-14190-A3 |
| EAN Code | 4056418149028 |
| Environment | Indoor |
| Cable Type | Ribbon |
| Product Type | Interlocking Armor |
| Fiber Category | 50 µm MM (OM4) |
| Flame Rating | Plenum (OFCP) |
| Application | Plenum, General Purpose Horizontal, Vertical Riser |
| Fiber Count | 216 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNP, CSA FT-6, ICEA S-83-596 |
| Design and Test Criteria | ANSI/ICEA S-83-596, CSA FT-6 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0°C to 60°C (32°F to 140°F ) |
| Temperature Range, Operation | 0°C to 70°C (32°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |
| Cable Design | - |
| Buffer Tube Color | Natural |
| Fiber Count | 216 |
| Buffer Tube Diameter | 11mm (0.43in) |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Aqua |
| Outer Jacket Material | Flame-retardant |
| Inner Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tape | Water-swellable |
| Tensile Strength Elements and/or Armoring - Layer 3 | Interlocking Armor |
| Ribbons per Tube | 18 |
| Fibers per Ribbon | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400N (89.92lbf) |
| Max. Tensile Strength, Short-Term | 400N (89.92lbf) |
| Min. Bend Radius Installation | 3375mm (132.87in) |
| Min. Bend Radius Operation | 225mm (8.86in) |
| Nominal Outer Diameter | 22.5mm (0.89in) |
| Nominal Inner Cable Diameter | 155mm (6.1in) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 90 |
| Fiber Core Diameter | 50µm |
| Minimum Effective Modal Bandwidth (EMB) | 4700 MHz*km / - |
| Maximum Attenuation | 3.0 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1100 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 550 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM4 |
| Dimensions | - |
| Cable Weight | 400kg/km (268.79lb/1000 ft) |
