Brand: Corning
|
SKU:
474219-DEMO

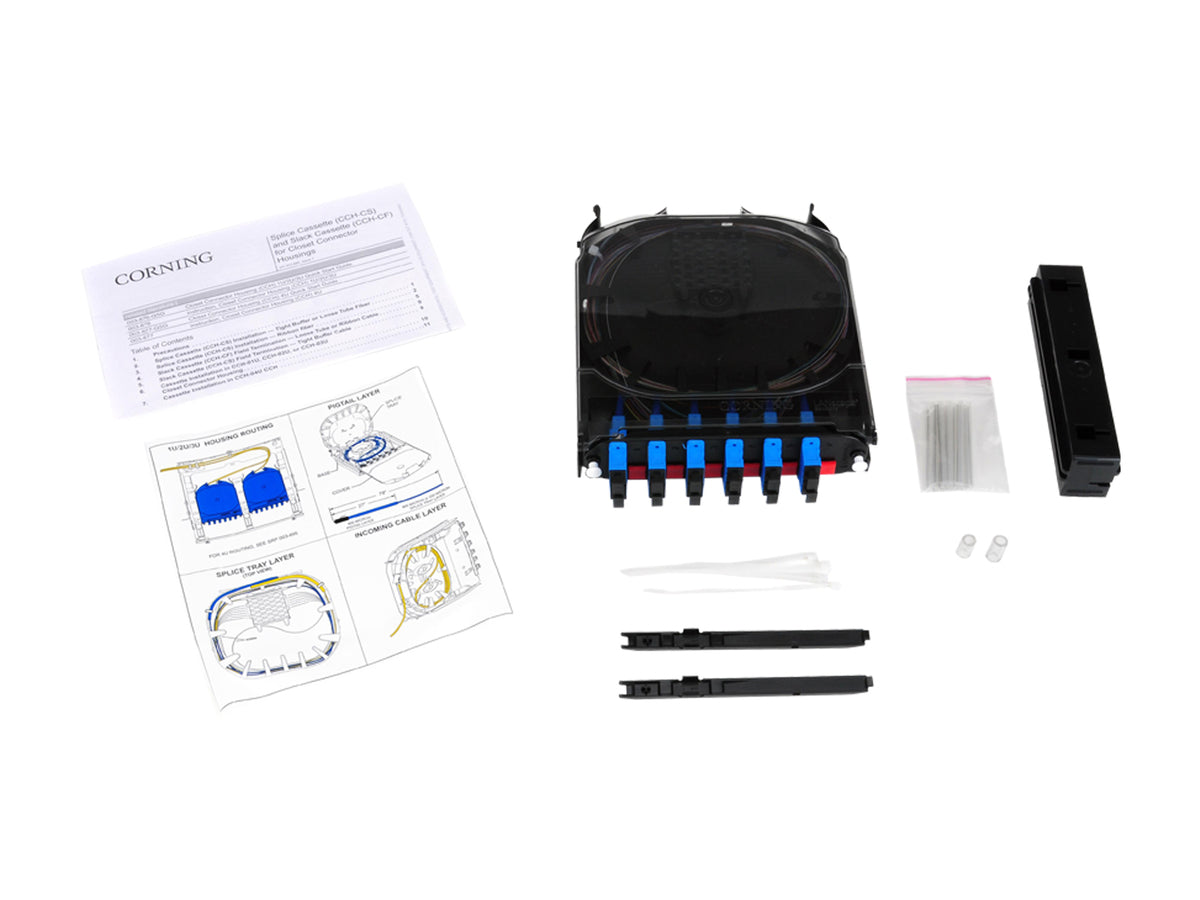

Corning CCH-CS12-59-P00 | CCH Pigtailed Splice Cassette 12 F, SC UPC Duplex, Single-mode (OS2), Single-Fiber (250 µm)
Regular price
$545.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning CCH-CS12-59-P00 | CCH Pigtailed Splice Cassette 12 F, SC UP...
Regular price
$545.24
Unit price
Description
Description
Corning CCH-CS12-59-P00 | CCH Pigtailed Splice Cassette 12 F, SC UPC Duplex, Single-mode (OS2), Single-Fiber (250 µm)
Corning - CCH-CS12-59-P00 - Features
- Manage cable slack for a CCH panel in a modular footprint
- Fast, easy and reliable initial routing, and quick, simple reaccess for moves, adds and changes (MACs)
- Splice cassette includes everything needed to convert a CCH housing for modular routing and/or splicing
- Easy ordering and field installation
- Modular splice capability
- Manage all splices inside the housing
- Colored 250 µm at splice point
- Easy to identify and prep colored 250 µm for fast and easy splicing
- Pre-prepped splice cassette
- Saves time in the field with a ready to splice product
- Broad operating temperature range (-40°C to +65°C)
- Utility and flexibility
Specifications
Specifications
Corning - CCH-CS12-59-P00 - Specifications
| Product Number | CCH-CS12-59-P00RE |
|---|---|
| EAN Code | 4056418151977 |
| Fiber Category | Single-mode (OS2) |
| Cable Type | 250 µm |
| Technology | Fusion Splice |
| Mounting Type | CCH Housings, Wall-Mountable |
| Application | Data Center, Enterprise Networks |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | Meets ANSI/TIA/EIA-568A and 606, Tested in accordance with Telecordia GR-3125, UL1863 - Communication Circuit Accessories |
| Fiber Count | 12 |
| Connector Configuration | SC |
| Polish | UPC |
| Panel or Module Type | CCH |
| Splice Protectors Type | Heat Shrink, single fiber |
| Number of Splice Protectors | 12 |
| Adapter Type | SC |
| Polish | UPC |
| Shipping Weight,Units per Delivery | 0.75 kg,1/1 |
