Jonard R24Y-0100 | 24 AWG Kynar® Wire, Yellow, 100 ft
Regular price
$36.90
Unit price
Brand: Jonard
|
SKU:
10686341
Regular price
$36.90
Unit price
Description
Description

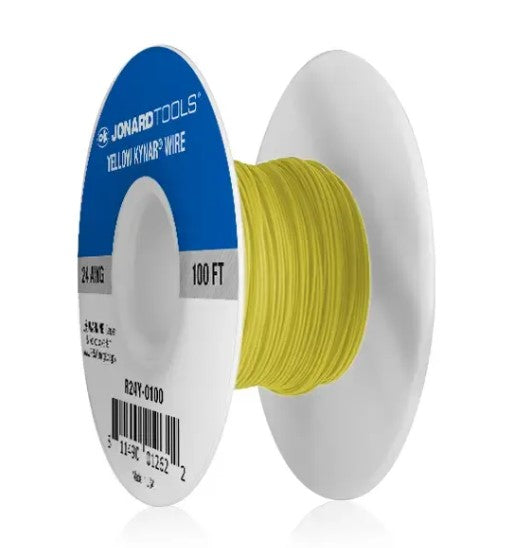

Jonard R24Y-0100 | 24 AWG Kynar® Wire, Yellow, 100 ft

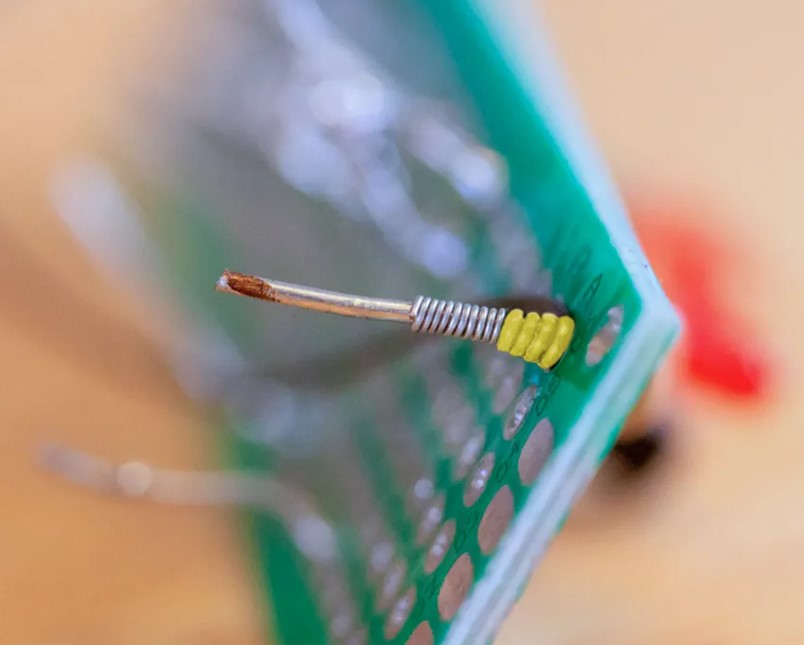

Typically used where flexibility, strength, and low weight is required, Kynar® wire is ideally suited in wire wrap, power supply, medical, and aerospace applications. Additionally, Kynar insulation provides excellent mechanical properties over a large temperature range and is resistant to an extensive range of chemicals including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic & aromatic hydrocarbons
Jonard - R24Y-0100 - Features
- OHFC (oxygen-free high conductivity) silver-plated copper conductor provides exceptional electrical conductivity and flexibility
- Kynar® insulation provides high temperature resistance (up to 105°C) and excellent abrasion resistance
- Meets or exceeds UL 1422 standards
Specifications
Specifications
Jonard - R24Y-0100 - Specifications
| Manufacturer Part Number | R24Y-0100 |
|---|---|
| Manufacturer | Jonard |
| Item Description | 24 AWG Kynar® Wire, Yellow, 100 ft |
| Insulation Type | Kynar® |
| Insulation Thickness | 0.004" (0.102 mm) |
| Wire Gauge | 24 AWG (0.5 mm) |
| Overall Diameter | 0.030" (0.76 mm) |
| Standards | UL 1422 |
| Voltage | Not Rated |
| Reel Length | 100 ft. (30.48 meters) |
| Dimensions | 2 in x 2 in x 1 in (5.08 cm x 5.08 cm x 2.54 cm) |
| Weight | 0.19 lb (86.26 g) |
| UPC # | 811490012622 |
