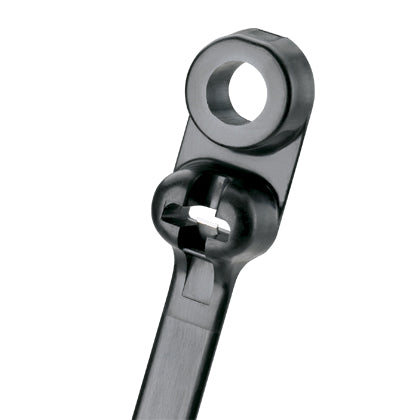

Panduit BC4LH-S25-TL0 | Dome-Top® Barb Ty Clamp Tie
Description
Description
Panduit Barb-Ty Dome-Top Clamp Tie, Light Heavy, 15-1/2 in Length, 0.28 in Width, 0.07 in Thickness, 4 in Bundle Dia, Locking, 120 lb Tensile, -76 to 185 deg F, Nylon 6.6, Black
Our barb ty cable tie features a unique patented design with smooth edges and a secure stainless steel locking barb, providing reliability and endless adjustment options for your cables.
The BC4LH-S25-TL0 Dome-Top barb ty clamp tie, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through t he entire bundle range. Light-Heavy cross section, 15.5’ (394mm) length. Appropriate for Indoor/Outdoor use, made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 250.
Panduit - BC4LH-S25-TL0 - Features
- Applications: Used to secure a cable bundle to another surface such a control panel, wall or ceiling.
- Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling
- Design allows for bundling before or after screwing clamp in place
- Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- Weather-resistant
Specifications
Specifications
Panduit - BC4LH-S25-TL0 - Specifications
| Category | Clamps And Vices |
|---|---|
| Approvals | None |
| Quality Standard | Commercial Release |
| Rohs Compliant | Not Declared |
| Type | Clamp - Cable, Mini |
| UNSPSC Code | 39121700 |
| Technical Information | UL Compliant 62275, UL Listed #E56854, UL Recognized #E56854 |
| Product Type | Locking Clamp Tie |
| Sub Brand | Dome-Top® |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 15.5 |
| Overall Length (mm) | 394 |
| Body Width (In.) | 0.275 |
| Body Width (mm) | 7 |
| Body Thickness (In.) | 0.065 |
| Body Thickness (mm) | 1.7 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 102 |
| Minimum Bundle Diameter (In.) | 0.188 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Loop Tensile Strength (N) | 534 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Screw Size | 1/4" |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| UPC | 07498352329 |
Panduit - BC4LH-S25-TL0 - Package Information
| UPC | 07498352329 |
|---|---|
| Standard Packaging Quantity | 250 |
| Standard Packaging Volume (cf) | 0.2164 |
| Standard Ctn. Quantity | 2500 |
| Standard Ctn. Volume (cf) | 2.1638 |
Panduit - BC4LH-S25-TL0 - Videos
| Panduit BC4LH-S25-TL0 Videos | Click to View |
|---|
