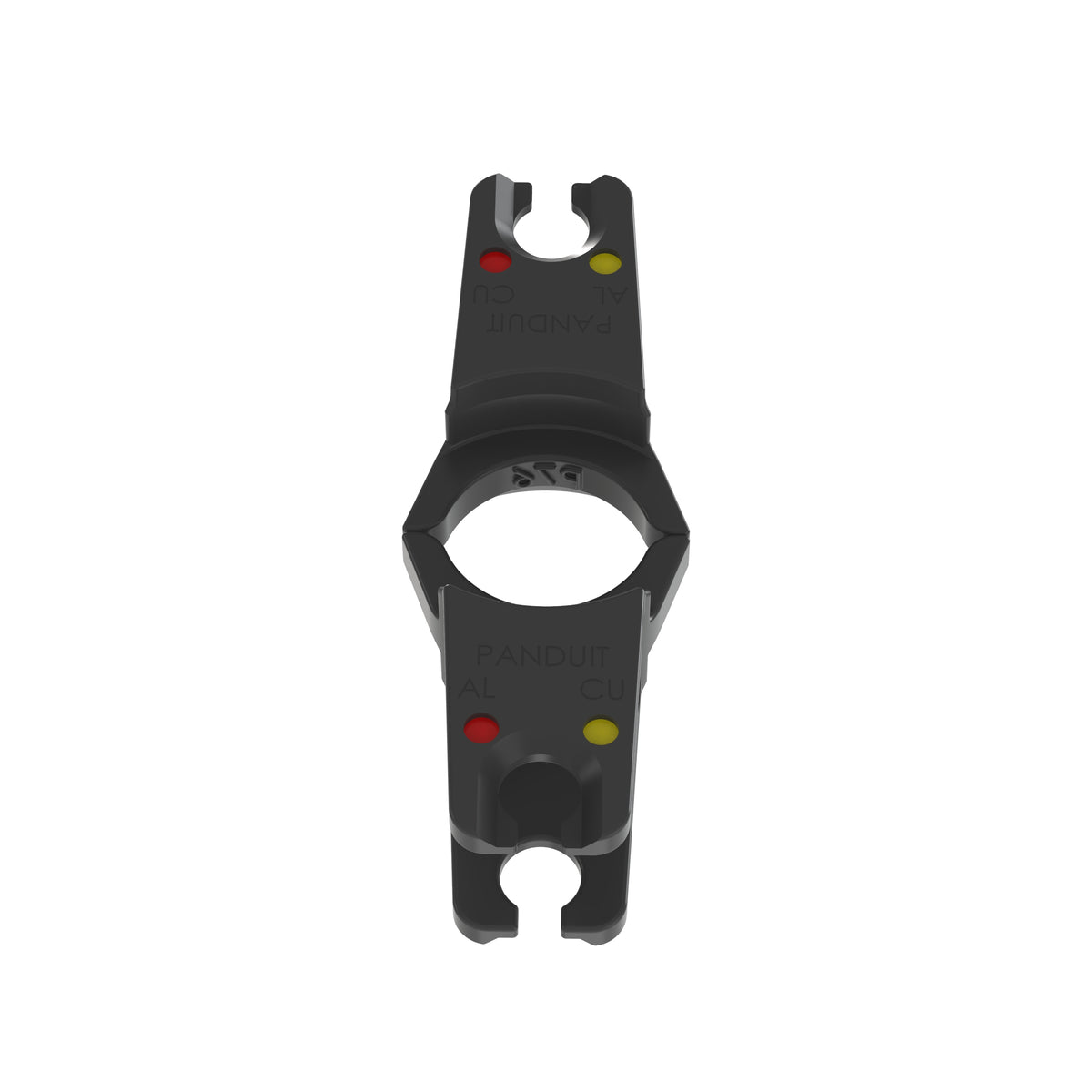

Panduit CD-2001-400-SET | Pan-Lug™ CD-2001 Crimp Die Set
Description
Description
Panduit Crimping Die Set, Specifications: Blue P76 Die Index Number, 400 kcmil Copper Conductor, For Use With: CT-2001, CT-3001/ST and CT-3001/CCP Series Crimping Tool, Steel
Our crimp die det delivers precise, color-coded crimps for superior electrical connections, ensuring reliable performance and easy inspection.
The CD-2001-400-SET Crimp Dies provide circumferential crimp results in terminations with premium electrical and mechanical performance. Color-coded to provide easy matching on connectors while an embossed die index number on the connector barrels prov ide post crimp inspection. The part number is permanently marked on the crimping die for easy identification and used with the CT-3001/ST and CT-3001/CCP series tools.
Panduit - CD-2001-400-SET - Features
- Without pulling eye
- Applications: Crimp dies for Copper Panduit Power Connectors and Splices.
- Color coded to provide easy matching to color coding marked on connectors
- Embosses die index number on connector barrels to provide post crimp inspection
- Part number permanently marked on crimping die for easy identification
- Provide a circumferential crimp results in terminations with premium electrical and mechanical performance
Specifications
Specifications
Panduit - CD-2001-400-SET - Specifications
| Type | Copper |
|---|---|
| UNSPSC Code | 27112820 |
| Product Type | Crimp Die |
| Application | Crimp dies for Copper Panduit Power Connectors and Splices. |
| Color Code | Blue |
| Copper Conductor Size (kcmil) | 400 |
| Metric Class 2r Copper Conductor Size (mm²) | 185 |
| Flex Conductor Size (kcmil) | 350 |
| Panduit Die Index Number | P76 |
| For Use With | BlackFin CT-3001/ST, CT-3001/CCP tools and CT-2002CH crimp head. Also with legacy CT-2001 and CT-3001 tools, check Panduit tool charts for specific product part series that can be terminated with this crimp die and crimp tool combinations. |
| Connection Type | Crimp |
| Crimp Profile | Circumferential |
| Base Material | Steel |
| Finish/Coating | Black Oxide |
| Part Features | Color coded to connector,premium crimp,embosses die number |
| UPC | 07498307241 |
Panduit - CD-2001-400-SET - Package Information
| UPC | 07498307241 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.1309 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - CD-2001-400-SET - Videos
| Panduit CD-2001-400-SET Video 1 | Click to View |
|---|---|
| Panduit CD-2001-400-SET Videos | Click to View |
