Panduit CJLRCAPIW-C | 45° Left/Right Angled Wire Cap for TX6™ PLUS ...
Description
Description

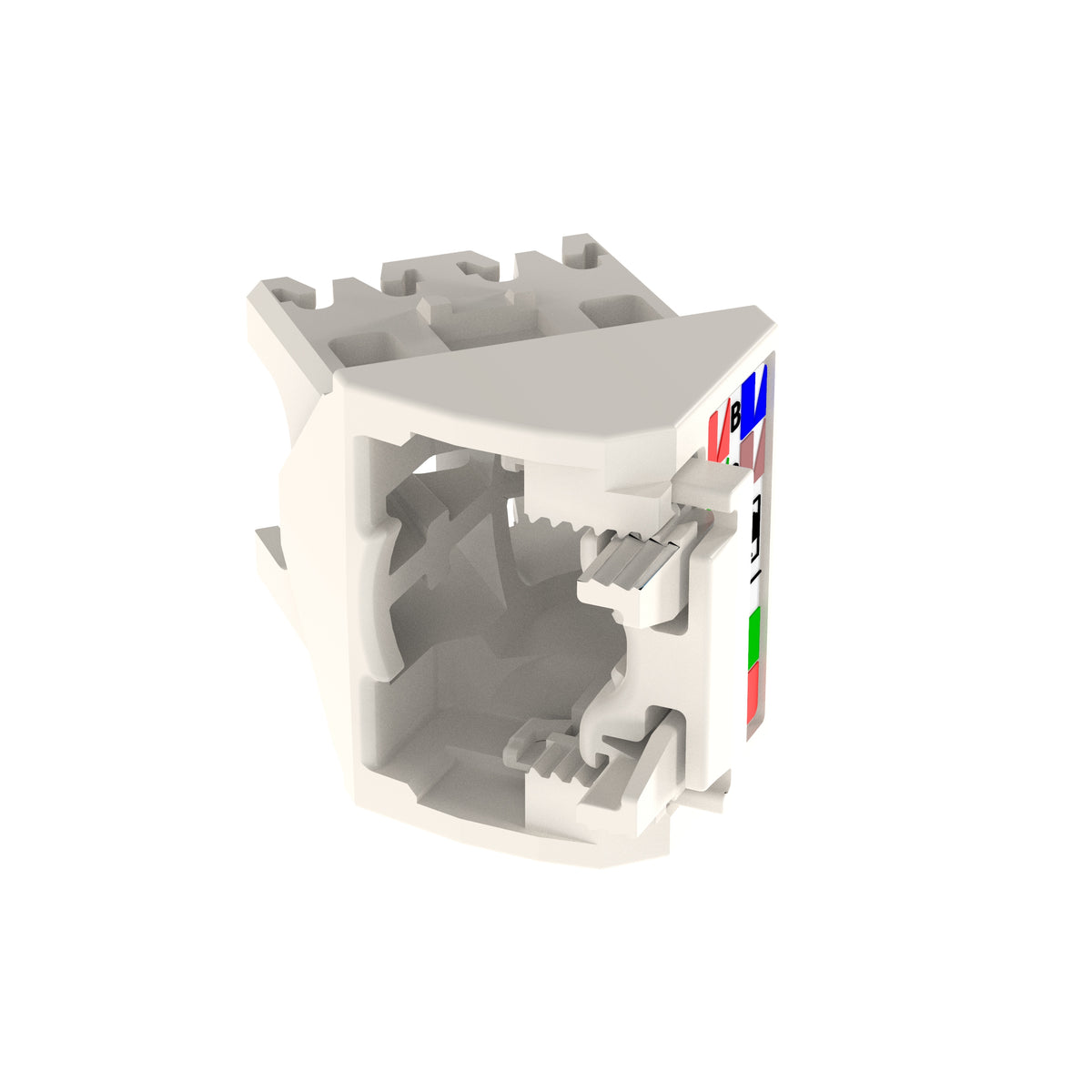

Panduit Angled Wire Cap, Cat 6 45 deg Unshielded, Polycarbonate, International White, 0.61 in H x 0.63 in W x 0.96 in D
Our versatile cap bends cables around corners, works in tight spots, and reduces bulk in high-density racks. It is compatible with existing patch panel systems for easier network installations.
The Cat 6 UTP TG angled wire cap is used with UTP TG jack modules to improve cable routing to jacks in confined spaces. These left/right caps terminate 4-pair, 22-26 AWG, 100 ohm twisted pair cable. The angled cable exit allows a cable to route to jack s in tight spaces while maintaining proper bend radius. This wire cap is off white and includes 100 per package.
Panduit - CJLRCAPIW-C - Features
- Minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation cost
Specifications
Specifications
Panduit - CJLRCAPIW-C - Specifications
| Category | Category 6 |
|---|---|
| Color | White |
| Number Of Ports | 1 |
| Wiring | A/B Universal |
| UNSPSC Code | 39121444 |
| Technical Information | Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 20 43 and RoHS Compliant |
| Product Type | Wire Cap |
| Performance Level | Category 6 |
| Connector Type | Jack Accessory |
| Termination Style | TG Style |
| Body Material | Polycarbonate |
| Module Type | Mini-Com® |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net® |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Off White |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant |
| Overall Length (In.) | 0.96 |
| Overall Length (mm) | 24.4 |
| UPC | 61305625427 |
Panduit - CJLRCAPIW-C - Package Information
| UPC | 61305625427 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.0465 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.2327 |
Panduit - CJLRCAPIW-C - Videos
| Panduit CJLRCAPIW-C Videos | Click to View |
|---|
