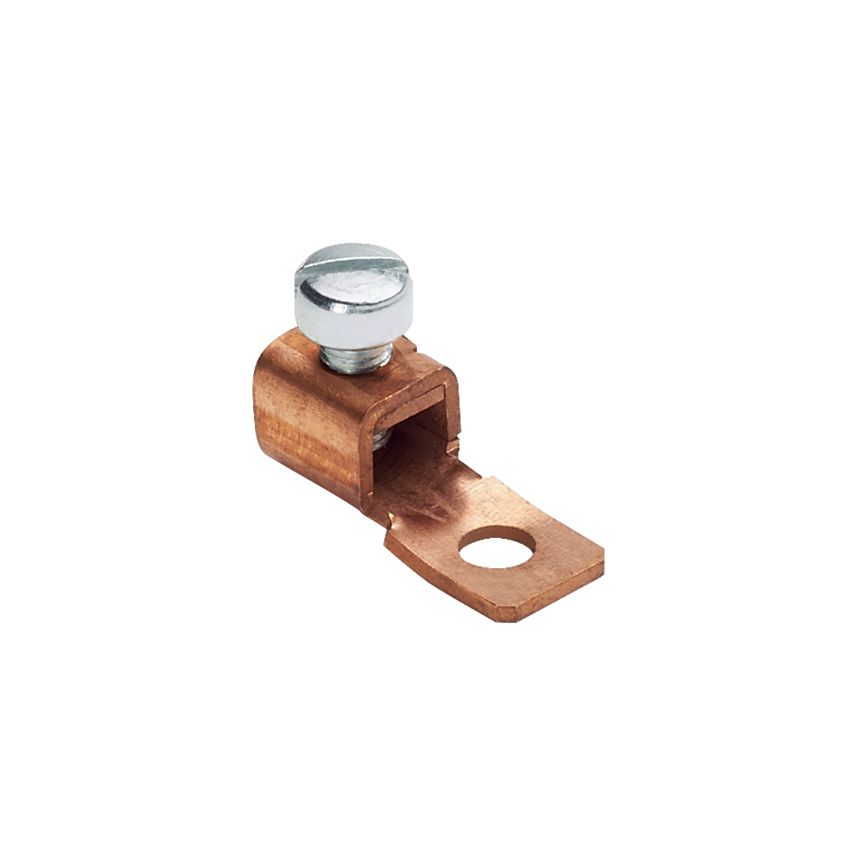

Panduit CXS125-14-Q | Pan-Lug™ Copper Straight Tongue Mechanical Lug
Description
Description
Panduit Mechanical Lug, Single Barrel, Series: CXS, Stranded Copper Conductor, 4 to 1/0 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 0.62 in W x 0.09 in THK Tongue, Straight Fixed Tongue, 600 VAC, Specifications: 0.65 in L Collar, Slotted Fillister Screw 125 A Current Rating, 90 deg C, Copper, Tin Plated, 1.6 in L x 0.62 in W x 0.73 in H Dimensions
Ensure reliable connections in electrical panels with our copper straight tongue mechanical lug, visible wire window, strong anti-corrosion build, and space-saving design for flat contact.
One-hole, copper, single barrel, straight fixed tongue lug, #4 - 1/0 AWG, 1/4 (6.4mm) stud hole.
Panduit - CXS125-14-Q - Features
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
- Performance/construction - standard IL/standard fan out (singlemode)
- 24 in connector variant
- 12 fibers
- Range taking, high strength copper
Specifications
Specifications
Panduit - CXS125-14-Q - Specifications
| Barrel | Standard |
|---|---|
| Bolt Hole | 1/4 Inch |
| Gauge | #4 - #1/0 |
| Holes | 1 Hole |
| Inspection Hole | No |
| Lug Material | Copper |
| Type | Mechanical |
| UNSPSC Code | 39121400 |
| Product Type | Mechanical Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Single Barrel |
| Tongue Type | Fixed Tongue |
| Tongue Angle | Straight |
| Finish/Coating | Bare |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Screw Type | Slotted |
| Maximum Copper Conductor Size (AWG STR) | 1/0 |
| Minimum Copper Conductor Size (AWG STR) | 4 |
| Tongue Width (In.) | 0.62 |
| Tongue Width (mm) | 15.7 |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 1.6 |
| Overall Length (mm) | 40.6 |
| Overall Height (In.) | 0.73 |
| Overall Height (mm) | 18.4 |
| Standards Met | cULus listed up to 600V and temperature rated to 90 degrees C |
| UPC | 07498303047 |
Panduit - CXS125-14-Q - Package Information
| UPC | 07498303047 |
|---|---|
| Standard Packaging Quantity | 25 |
| Standard Packaging Volume (cf) | 0.0318 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
